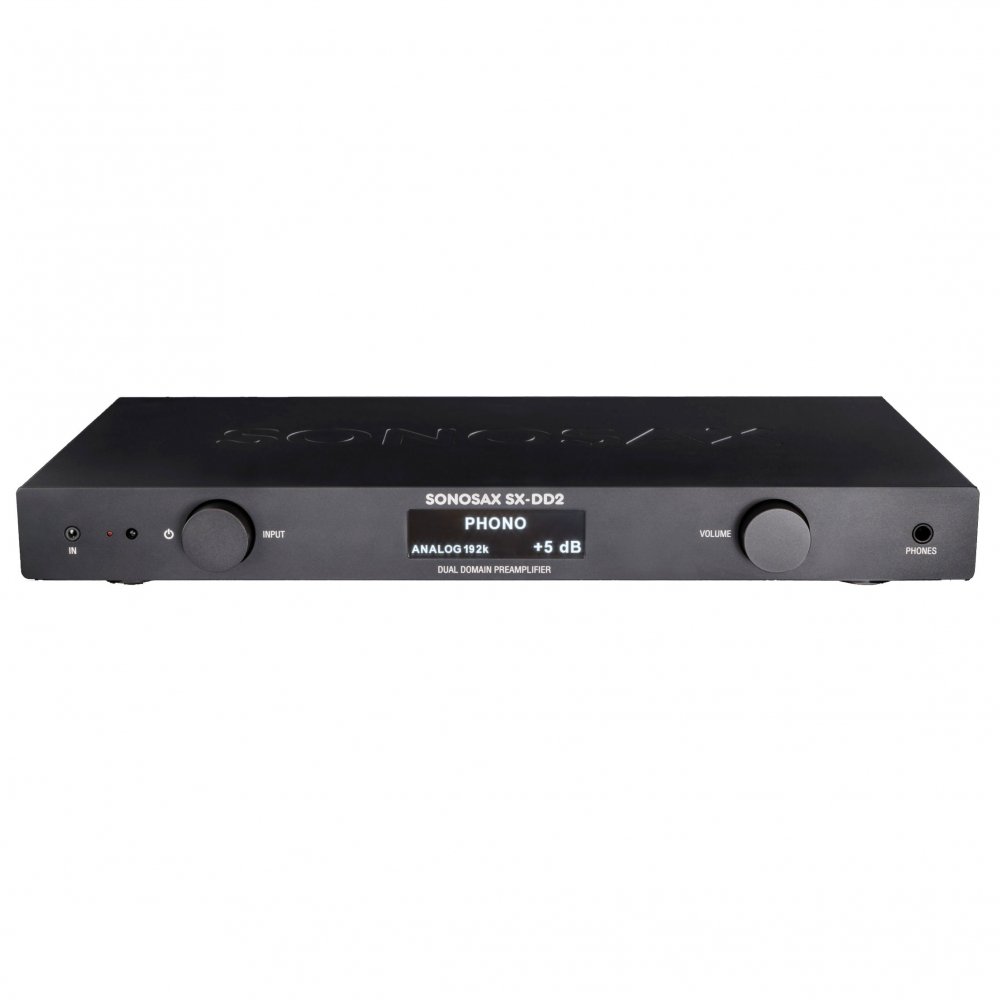

Sonosax SX-DD2
MPN #048500
Dual domain preamplifier and converter
The SX-DD2 is at the same time:
A very high quality preamplifierAn analog-to-digital and digital-to-analog converterA headphone amplifierA control system for the different sources
It includes a direct path from analog to analog inputs/outputs, an analog to digital converter and a digital to analog converter
Specifications

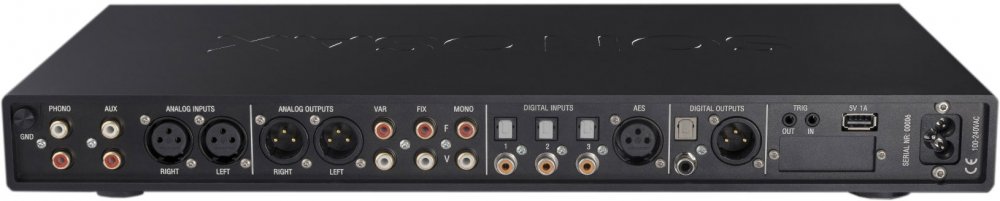

Audio inputs
1x unbalanced stereo input Phono MM/MC
1x unbalanced stereo input RCA
1x balanced stereo input XLR
1x 3.5mm jack stereo analog input (on the front)
3x Optical digital inputs (TOSLINK)
3x COAX digital inputs (SPDIF)
1x AES3 digital input XLR
on option slot: stereo DLNA, USB C Audio Class 2.0 and Bluetooth Audio (Not Included)
Audio outputs
1x unbalanced stereo with variable level
1x unbalanced stereo with fixed level
1x unbalanced mono with variable level (summing Left / Right)
1x unbalanced mono with fixed level (summing Left / Right)
1x Balanced XLR output (Left / Right)
1x 6.35mm jack stereo headphone output (on the front)
1x Optical digital output (TOSLINK)
1x COAX digital output (SPDIF)
1x AES3 digital output, XLR
on option slot: USB C stereo USB Audio Class 2.0
Performance
Full scale analog outputs level: 4Vrms (balanced), 2Vrms (unbalanced)
Dynamic range: > 125dB (A-weighted)
Total Harmonic Distortion + Noise: < 0.0005%
A/D sampling rate: 48, 96 and 192 kHz
Controls
Large 256-64 pixels OLED display
Two rotary encoders for source selection and volume control
Infrared remote control
Intuitive menu navigation
Trig IN/OUT for switching on/off by an external source
Powering
Main voltage: 85-264VAC, 47-63Hz
Power consumption: 0.5W (standby), ~10W (in use)
USB A max output current: 1A
Mechanical
Machined aluminum housing
overall dimension: 434 x 230 x 44 mm (17.08'' x 9.05'' x 1.74'')
weight: 5.1 kg (11.25 lbs)
19'' 1U rack mount kit available
