Sonnet xMac Studio/No Module
UPC/EAN #732311013584
MPN #XMAC-STD-0

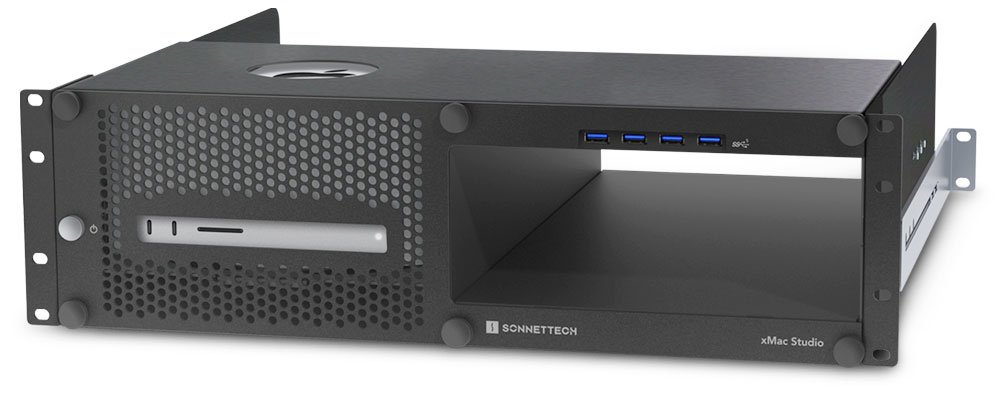

Pro 3U rackmount enclosure for Mac Studio with an open bay for an Echo III or Echo I Thunderbolt to PCIe card expansion module
Your Workflow
expanded and secured
A Mac Studio delivers phenomenal processing power, outperforming computers multiple times its size and price - it also provide a lot of ports to connect things. But how do you incorporate a Mac Studio into off-the-desk professional workflows
Sonnet xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module to support diverse audio and video application needs
Designed for Expansion
Connect Specialty Audio and Video Cards
For many creative professionals, PCIe card expansion for connecting specialty cards to handle audio and video post-production projects is not an option - it's a necessity! Sonnet designed the xMac Studio for pro workflow flexibility; choose a system configured with a Thunderbolt to PCIe card expansion module that best suits your needs. xMac Studio is also available without a module so you can add one at a later date, or use one of your existing compatible Sonnet expansion modules.
Features
Versatile PCIe Card Expansion
From low-profile, half-length to full-height, full-length in size, Echo expansion modules support every Thunderbolt-compatible, non-GPU PCIe card available.
400W of Power
Built-in 400W power supply supports power-hungry cards including Avid Pro Tools | HDX, AJA Kona 5, Blackmagic Decklink 4K Extreme 12G, and Blufish444's Epoch and KRONOS SDI cards. System powers on and off automatically with the connected Mac Studio.
Quiet Fans
Dual temperature-controlled, variable-speed Noctua fans rated at 17 dbA offer ultra-quiet operation.
40Gbps Thunderbolt Interface
40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe card(s).
Pro rackmount enclosure with an open bay for an Echo III or Echo I Thunderbolt to PCIe card expansion moduleIncludes two adhesive-backed magnets for mounting portable SSDs
Specifications
Mac Compatibility:
Mac Studio
Form Factor:
3U rackmount enclosure
External Connectors:
Four USB-A ports
Dimensions (WxDxH):
19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm)
Weight:
16 lbs (7.26 kg)
Compliance:
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
Package Contents:
xMac Studio enclosureRegion-specific power cable for US, Australia, Europe, Japan, Switzerland, or UKThunderbolt cableThunderLok 3 Thunderbolt connector retainer clipExtension rails for rack depth 16-24 inchesTwo adhesive-backed magnetsDocumentation
