Sonnet xMac Studio/Echo III Module
UPC/EAN #732311013560
MPN #XMAC-STD-III

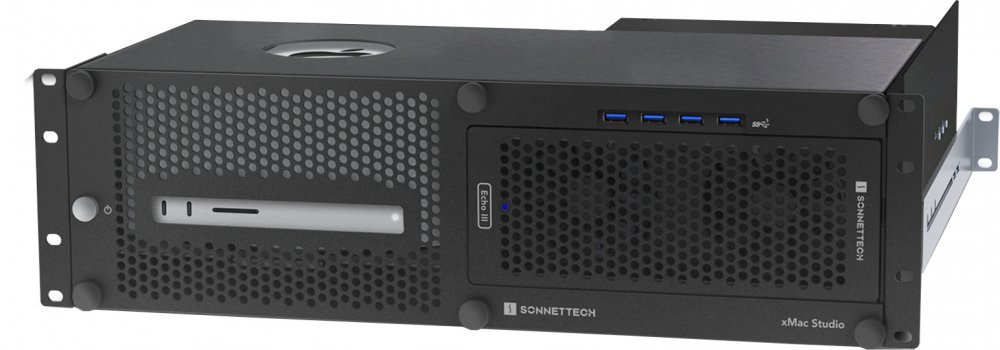

Pro 3U rackmount enclosure for Mac Studio with Echo III Module supporting three full-height, full-length PCIe cards
Your Workflow
expanded and secured
A Mac Studio delivers phenomenal processing power, outperforming computers multiple times its size and price - it also provide a lot of ports to connect things. But how do you incorporate a Mac Studio into off-the-desk professional workflows

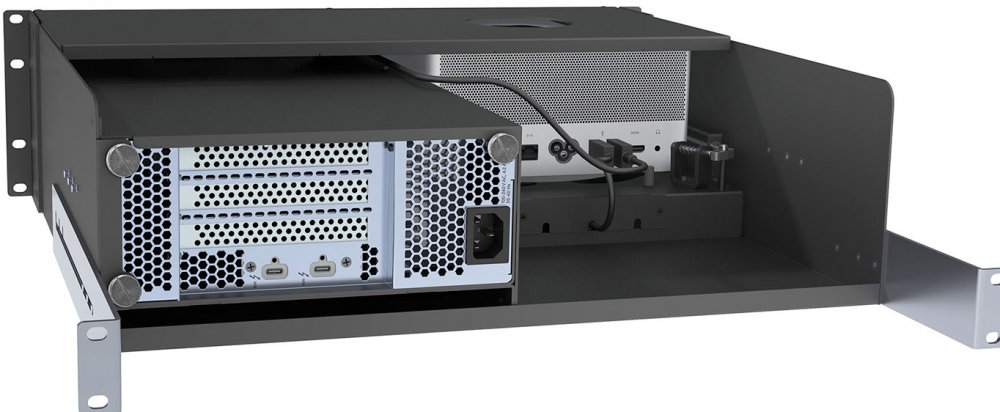

Sonnet xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module to support diverse audio and video application needs
Designed for Expansion
Connect Specialty Audio and Video Cards
For many creative professionals, PCIe card expansion for connecting specialty cards to handle audio and video post-production projects is not an option - it's a necessity! Sonnet designed the xMac Studio for pro workflow flexibility; choose a system configured with a Thunderbolt to PCIe card expansion module that best suits your needs. xMac Studio is also available without a module so you can add one at a later date, or use one of your existing compatible Sonnet expansion modules.
Features

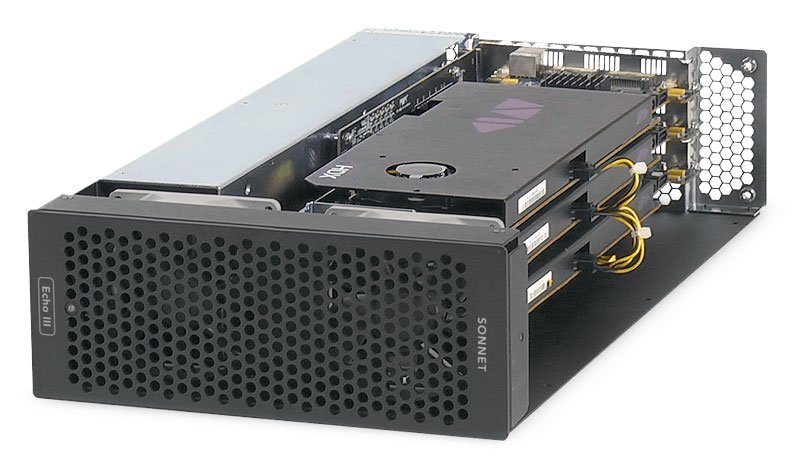

Versatile PCIe Card Expansion
From low-profile, half-length to full-height, full-length in size, Echo expansion modules support every Thunderbolt-compatible, non-GPU PCIe card available.
400W of Power
Built-in 400W power supply supports power-hungry cards including Avid Pro Tools | HDX, AJA Kona 5, Blackmagic Decklink 4K Extreme 12G, and Blufish444's Epoch and KRONOS SDI cards. System powers on and off automatically with the connected Mac Studio.
Quiet Fans
Dual temperature-controlled, variable-speed Noctua fans rated at 17 dbA offer ultra-quiet operation.
40Gbps Thunderbolt Interface
40Gbps Thunderbolt interface offers 2800 MB/s of PCIe bandwidth to the installed PCIe card(s).
Three PCIe 3.0 slots (one x16 plus two x8 slots; supports PCIe 4.0, 3.0, 2.0, and 1.1 PCIe cards)Supports three full-height, full-length PCIe cardsTwo 40Gbps Thunderbolt ports400W power supply (with 75W aux. power connector)Dual Noctua quiet fans (rated at 17 dbA)
Specifications
Mac Compatibility:
Mac Studio
Form Factor:
3U rackmount enclosure
External Connectors:
Four USB-A ports
Dimensions (WxDxH):
19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm)
Weight:
16 lbs (7.26 kg)
Compliance:
RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2 Safety
Package Contents:
xMac Studio enclosureRegion-specific power cable for US, Australia, Europe, Japan, Switzerland, or UKThunderbolt cableThunderLok 3 Thunderbolt connector retainer clipExtension rails for rack depth 16-24 inchesTwo adhesive-backed magnetsDocumentation
PCIe cards not included with modules
