Sonnet RackMac Studio
UPC/EAN #732311013591
MPN #RACK-STD-2X
3U Enclosure to Install and Secure One or Two Mac Studio Computers in a Standard 19-inch Rack
RackMac Studio is a rugged steel 3U rackmount enclosure for securing one or two Mac Studio computers in a rack, placing them behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio computers on with their own dedicated front power buttons, connect USB devices through passthrough USB-A ports, and access the computers' front ports and SD card slots. The RackMac Studio design enables you to connect and disconnect cables easily without needing to remove the computers from the enclosure.
Openings on top of RackMac Studio ensure hindrance-free wireless signal access. The RackMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS device control apps.
Features
Rackmount Solution for Mac Studio
Secures one or two Mac Studio computers inside a compact and rugged steel enclosure.
Ideal for Use in Server Rooms
3U height and standard mounting holes enable easy installation into any standard server rack.
Easy Computer Access

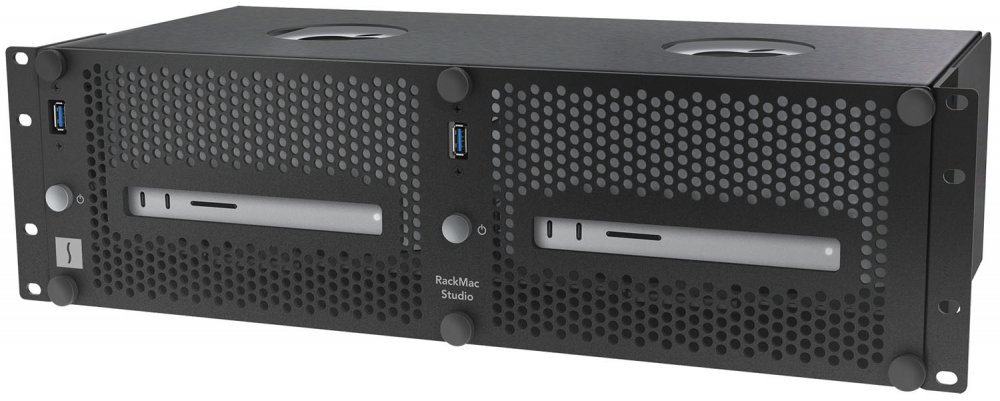

Removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studios with no tools required.
Front Panel Power Switches and USB Ports
Front panel buttons enable easy operation of the Mac Studios rear-mounted power switches; USB-A ports enable connection of a USB peripheral to each computer.
Space for Storage
Behind a covered opening beneath each Mac Studio is a space to place Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secure them in place.
Open Slot and Port Access

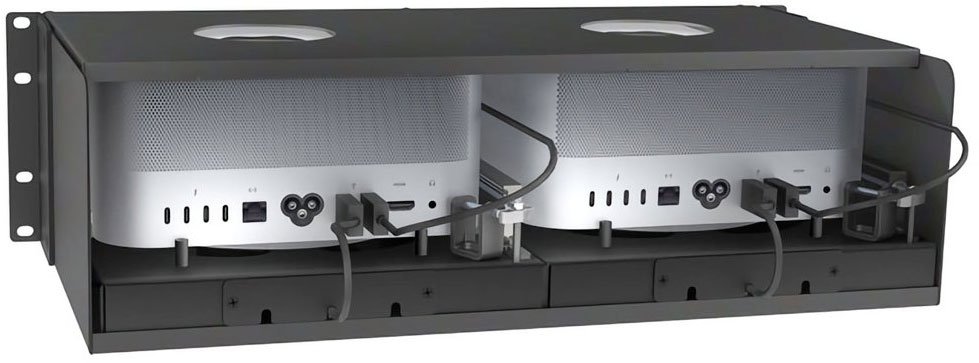

Provides access to computers' SD card slots and front and back panel ports, enabling you to connect and disconnect cables easily.
Road Trip Ready
9.5-inch mounting depth plus firm rubber cushions that hold the Mac Studios securely in place during transport make RackMac Studio perfect for use in portable racks and shallow molded rack cases.
Front to Back Airflow Management
Supports direct airflow through each Mac Studio to keep it operating as cool in rack as on the desk, even when the enclosure is mounted between two other rackmounted components.
Specifications
Compatibility:
Mac Compatibility
Mac Studio:
Hardware
Part Number:
RACK-STD-2X
Warranty:
2-year
Form Factor:
3U rackmount enclosure
External Connectors:
Two USB-A port extensions (one for each installed computer)
Dimensions (WxDxH):
19 x 9.5 x 5.2 in. (48.3 x 24 x 13.3 cm)
Weight:
8.6 lbs. (3.9 kg)
Complete Package: 10.1 lbs. (4.6 kg)
Compliance:
RoHS 3 (Directive 2015/863)
Package Contents:
RackMac Studio enclosure
Two adhesive-backed magnets
Documentation
