Sonifex AVN-GMCS
MPN #AVN-DIO01
PTPv2 grandmaster clock with GPS sync, sub-microsecond accuracy, AES67 profiles, web-based configuration, word clock output, and versatile connectivity.

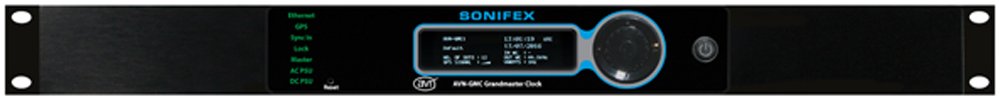

The Sonifex AVN-GMCS is a precision time protocol (PTP) grandmaster clock designed for Audio-over-IP (AoIP) applications, ensuring sub-microsecond synchronization across networked audio devices. It supports multiple PTP profiles, including Default (RAVENNA), Media (AES67), and AES-R16-2016 (SMPTE-ST 2059-2 & AES67 compatible), with an option for custom profile configurations. The unit achieves a PTPv2 time-stamping resolution of 8 nanoseconds, utilizing a GPS receiver, phase-locked loop (PLL), and a temperature-compensated crystal oscillator (TCXO) accurate to 1 part per million, equating to a worst-case scenario of 1 second gain or loss every 11.5 days. For enhanced accuracy, an optional oven-controlled crystal oscillator (OCXO) model, the AVN-GMCOS, offers precision up to 0.1 parts per million. Configuration is accessible via front-panel controls or a responsive web interface compatible with smartphones and tablets. The AVN-GMCS provides various clock outputs, including AES-3id, word clock, and variable pulse per second (PPS), supporting word clock frequencies of 32, 44.1, 48, 96, 176.4, and 192 kHz. It features dual power supply inputs"IEC mains and 12V DC"for redundancy, with front-panel LEDs indicating synchronization status, GPS lock, and power supply presence. A real-time clock maintains accurate date and time even after power cycles without GPS access. The unit can display UTC or local time, accommodating daylight saving adjustments. Designed for both studio and mobile installations, the AVN-GMCS offers reliable and precise time synchronization for complex AoIP networks.The Sonifex AVN-GMCS is a precision time protocol (PTP) grandmaster clock designed for Audio-over-IP (AoIP) applications, ensuring sub-microsecond synchronization across networked audio devices. It supports multiple PTP profiles, including Default (RAVENNA), Media (AES67), and AES-R16-2016 (SMPTE-ST 2059-2 & AES67 compatible), with an option for custom profile configurations. The unit achieves a PTPv2 time-stamping resolution of 8 nanoseconds, utilizing a GPS receiver, phase-locked loop (PLL), and a temperature-compensated crystal oscillator (TCXO) accurate to 1 part per million, equating to a worst-case scenario of 1 second gain or loss every 11.5 days. For enhanced accuracy, an optional oven-controlled crystal oscillator (OCXO) model, the AVN-GMCOS, offers precision up to 0.1 parts per million. Configuration is accessible via front-panel controls or a responsive web interface compatible with smartphones and tablets. The AVN-GMCS provides various clock outputs, including AES-3id, word clock, and variable pulse per second (PPS), supporting word clock frequencies of 32, 44.1, 48, 96, 176.4, and 192 kHz. It features dual power supply inputs"IEC mains and 12V DC"for redundancy, with front-panel LEDs indicating synchronization status, GPS lock, and power supply presence. A real-time clock maintains accurate date and time even after power cycles without GPS access. The unit can display UTC or local time, accommodating daylight saving adjustments. Designed for both studio and mobile installations, the AVN-GMCS offers reliable and precise time synchronization for complex AoIP networks.
Features
ccurate Time Synchronization: Provides precise GPS-based time synchronization for professional audio and broadcast systems.Dual Network Ports: Features dual Ethernet connections for NTP time distribution with redundancy.Multiple Time Outputs: Includes NTP, PTPv2, and word clock outputs to support various systems and standards.Compact and Rack-Mountable: Space-saving design fits neatly into a 1U rack space for professional setups.User-Friendly Configuration: Web-based interface for easy setup and monitoring of time signals.High-Quality Build: Rugged and reliable for demanding broadcast and studio environments.
Specifications

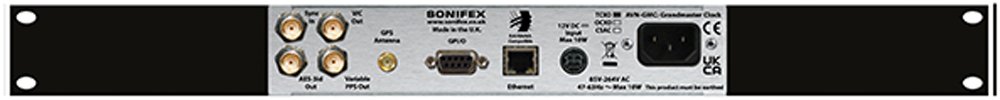

TCXO: Accuracy of 1 ppm (1 second gain/loss every 11.5 days)OCXO: Accuracy of 0.1 ppm (1 second gain/loss every 115 days)CSAC: Accuracy of 0.0005 ppm (1 second gain/loss every 63 years)GPS receiver: 50-channel GPS receiver at 1575.42MHz (L1 band)Profile support: Default (RAVENNA), Media (AES67), AES-R16-2016 (SMPTE-ST 2059-2 & AES67), and customizable profilesClock inputs/outputs:Clock input: 1 x BNC female connector with 75? impedanceClock outputs: 3 x BNC female connectors for Wordclock, AES-3id (32, 44.1, 48, 96, 176.4, 192kHz), and Variable PPS (1, 10, 100, 1000) TTL signalsNetwork interface: RJ45 socket supporting 100BASE-T Ethernet connectivityPower supply:Universal AC input: 85-264 VAC at 47-63Hz, maximum 10WDC input: 12V via KPJX-45 socket; operating range 10.3V to 13.2V DCDimensions: 1U rackmount, 1.8" (H) x 19" (W) x 7" (D)Weight: Approximately 1.45 kg (3.2 lbs)
