Sonifex AVN-DIO09
MPN #AVN-DIO01

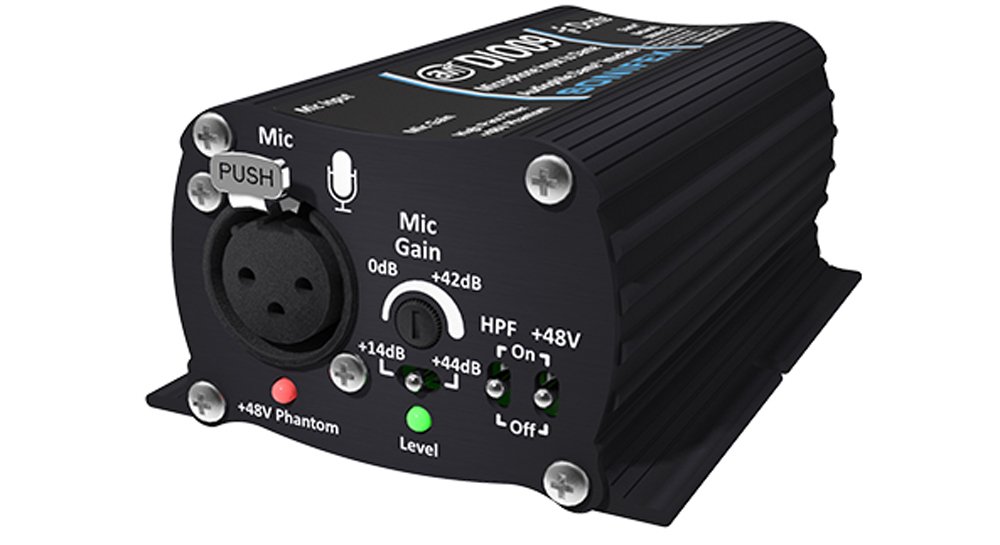

Mic-to-Dante converter with balanced XLR input, gain control, high-pass filter, phantom power, PoE support, tri-color level LED, and EtherCon connectivity.
ChatGPT said:

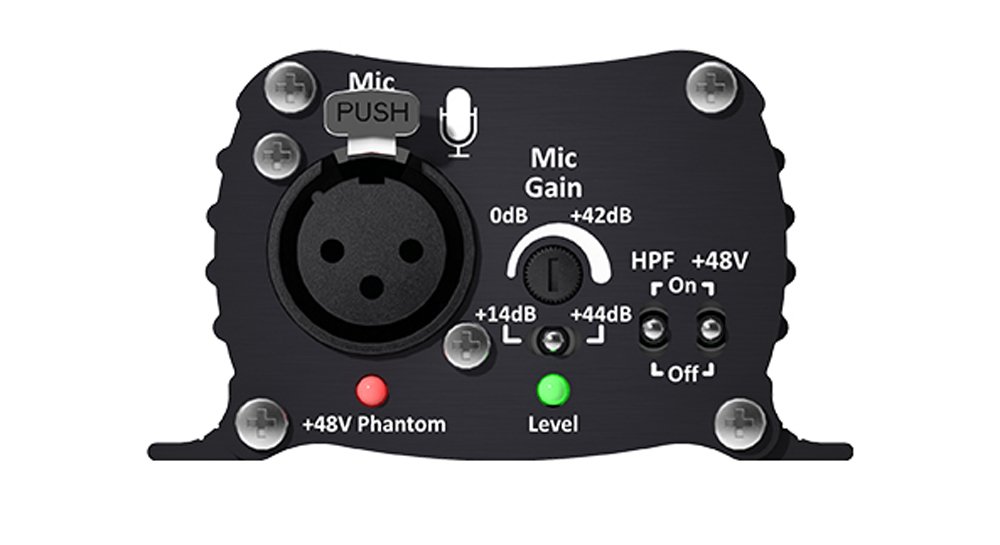

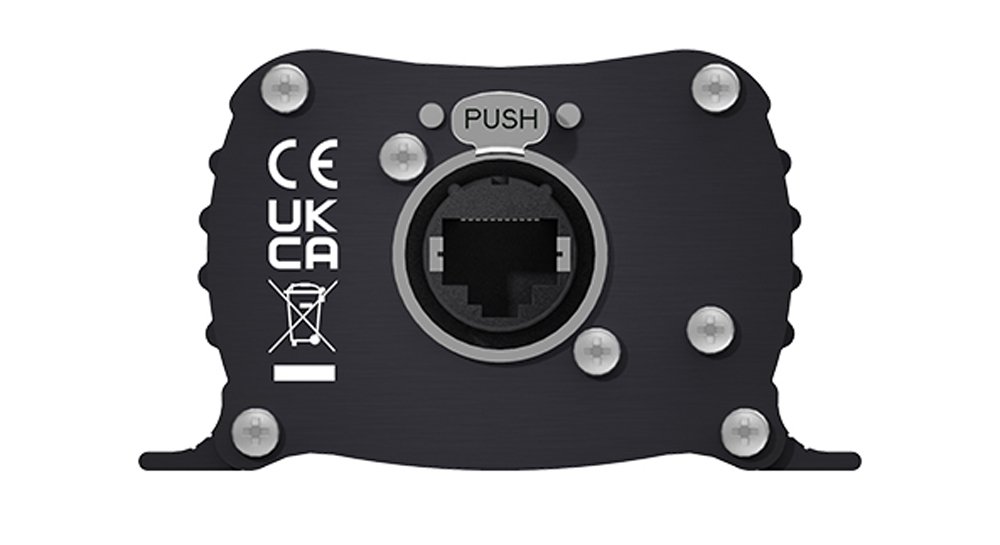

The Sonifex AVN-DIO09 is a compact audio interface that converts a single microphone input into a Dante Audio-over-IP (AoIP) network stream. It features a high-quality mic preamp with a balanced XLR input, offering both coarse and fine gain controls to accommodate various microphone sensitivities. An integrated high-pass filter can be engaged to attenuate frequencies below 125Hz, effectively reducing unwanted low-frequency noise. For condenser microphones, 48V phantom power is available and can be activated via a front-panel switch, with an LED indicator displaying its status. A tri-color level LED provides real-time visual feedback on audio levels, assisting in optimal gain staging. The unit connects to the Dante network through a Neutrik EtherCon connector and is powered via Power over Ethernet (PoE), streamlining installation by combining data and power delivery. Compliant with AES67 and Dante Domain Manager, the AVN-DIO09 ensures compatibility and secure management within diverse Dante network environments.
Features
Digital to Analog Conversion: Converts AES3 digital audio signals into high-quality stereo analog headphone output.Headphone Connectivity: Features a 6.3mm stereo headphone jack for direct monitoring.Independent Volume Control: Includes a dedicated volume knob for precise output adjustment.Compact and Rugged Design: Lightweight and durable, ideal for studio, broadcast, or on-the-go use.Power over Ethernet (PoE): Simplifies setup with combined power and network connectivity via a single Ethernet cable.Pristine Audio Quality: Ensures low-latency, distortion-free sound for professional applications.
Specifications
Microphone Input: Balanced XLR input with an impedance of 2.2kohms.Gain Control: Coarse gain adjustable between +20dB and +50dB; fine gain adjustable from 0dB to +42dB.High-Pass Filter: Engageable filter with a cutoff frequency at 125Hz and a roll-off rate of 6dB per octave.Phantom Power: Switchable +48V DC phantom power for condenser microphones.Equivalent Input Noise (E.I.N.): -129dBu, ensuring low-noise performance.Total Harmonic Distortion + Noise (THD+N): Less than 0.01% with a -32dBu input at 40dB gain.Common Mode Rejection Ratio (CMRR): Greater than 60dB at 1kHz.Network Interface: Neutrik EtherCon connector for Dante network integration.AoIP Compliance: Fully Dante compliant, AES67 compatible, and Dante Domain Manager compliant.Sample Rates: Supports 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 4W.Indicators: Tri-color LED displays audio levels: green for -38dBFS to -18dBFS, amber for -18dBFS to -10dBFS, and red for levels above -10dBFS.Dimensions: 10.6cm (W) x 7.3cm (D) x 4.3cm (H).Weight: Net weight of 0.2kg; gross weight of 0.3kg.
