Sonifex AVN-DIO14
MPN #AVN-DIO01
Dante to stereo analog XLR I/O converter with two balanced inputs and outputs, Neutrik etherCON connector, PoE, and selectable 0dBFS line-up levels.

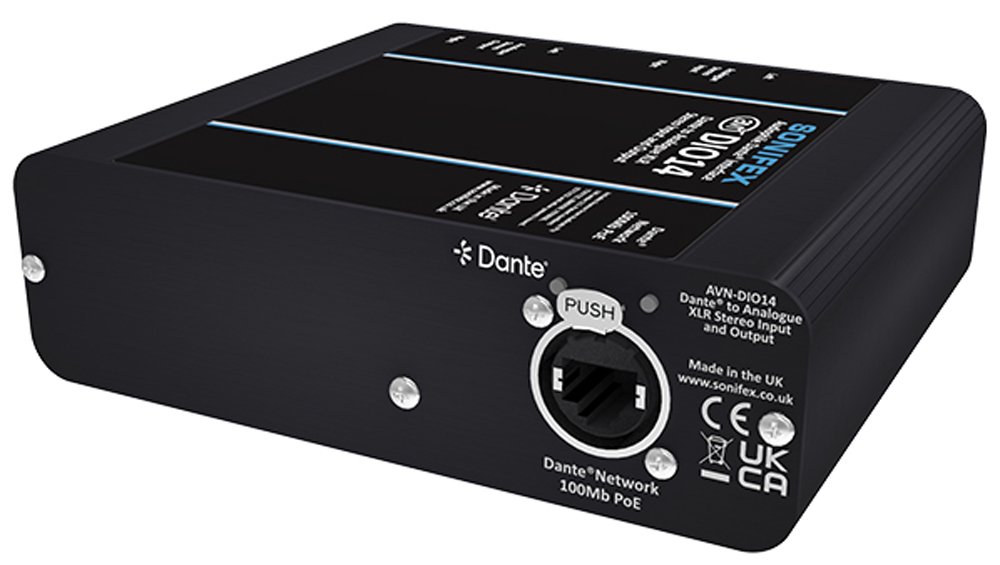

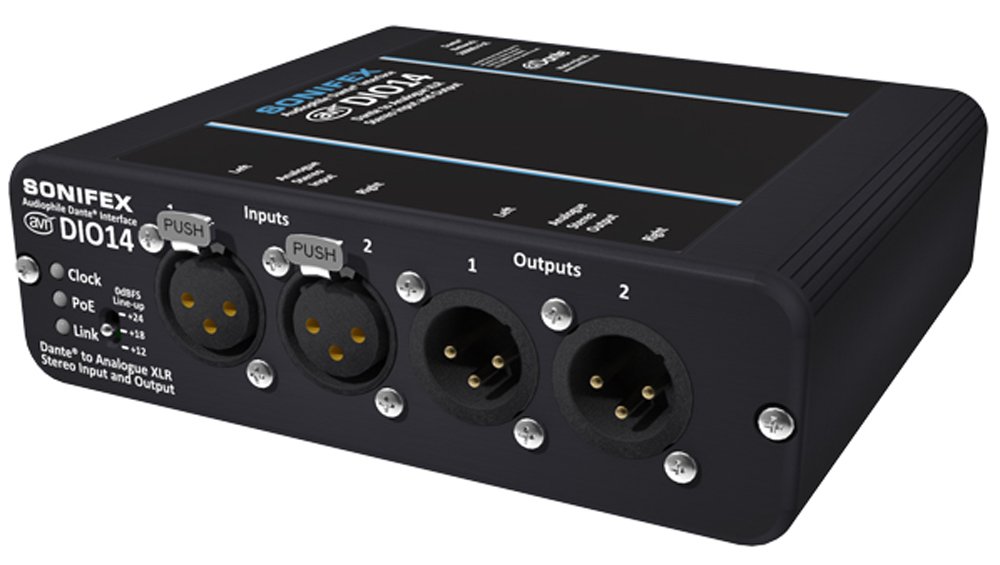

The Sonifex AVN-DIO14 is a compact audio interface that facilitates the integration of analog equipment with Dante Audio-over-IP (AoIP) networks. It features two balanced analog XLR inputs and two balanced analog XLR outputs, allowing for seamless bidirectional audio conversion. A Neutrik etherCON connector provides a robust connection to the Dante network.
Users can select a global 0dBFS line-up level of +12dBu, +18dBu, or +24dBu via a front-panel recessed toggle switch, accommodating various system requirements. Front-panel LEDs indicate network clock status, AoIP link status, and active Power over Ethernet (PoE), offering clear visual feedback.
This interface serves as a reliable bridge between analog audio sources and Dante AoIP networks, making it a valuable tool for audio professionals seeking to integrate legacy equipment into modern networked audio systems.
Features
Dual Stereo Line Inputs: Features two pairs of balanced analog line inputs via XLR connectors for seamless integration with Dante AoIP networks.High-Quality Audio: Ensures pristine audio conversion for professional-grade sound fidelity.Input Level Control: Offers adjustable coarse (-10dBV/+4dBu) and fine (±12dB) level settings for precise signal management.Visual Monitoring: Includes tri-color LED indicators for real-time audio level monitoring of each input.Power over Ethernet (PoE): Utilizes PoE via a Neutrik etherCON connector for combined power and network data.Compact and Durable Design: Portable and rack-mountable with the AVN-DIORK kit, allowing up to three units in a 1U rack space.Dante and AES67 Compatible: Fully supports Dante audio networks and AES67 standards for flexible network integration.Perfect for broadcasters, studios, and live sound setups requiring high-quality analog audio input to Dante AoIP systems.
Specifications
Analog Inputs: Two balanced XLR inputs with an input impedance of 5kiloohms unbalanced.Analog Outputs: Two balanced XLR outputs with an output impedance of less than 200ohms.Line-Up Level: Selectable global 0dBFS line-up levels of +12dBu, +18dBu, or +24dBu, adjustable via a front panel recessed toggle switch.Frequency Response: 20Hz to 20kHz, +0/-0.2dB for inputs; +0/-0.5dB for outputs (referenced at 1kHz).Total Harmonic Distortion + Noise (THD+N): Less than -118dBFS for inputs at -12dBu; less than -100dBu for outputs at -30dBFS, measured over 20Hz to 20kHz with a 20kHz bandwidth.Dynamic Range: 120dB with a 20kHz bandwidth.Crosstalk: Less than -110dB.Common Mode Rejection: Greater than 60dB at 1kHz.Network Interface: Neutrik etherCON (RJ45 compatible) supporting 100Mbps Ethernet connectivity.AoIP Standard: Dante protocol with AES67 support; compatible with Dante Domain Manager.Channels: 2 transmit and 2 receive channels; supports 2 transmit and 2 receive flows.Sample Rates: 44.1kHz, 48kHz, 88.2kHz, and 96kHz with PCM encoding at 16, 24, or 32 bits.Clock Source: Selectable between internal (PTP Leader) or network PTP Leader.Power Supply: Powered via Power over Ethernet (PoE) standard 802.3af Class 0 PD; typical power usage of 6W.Indicators: Front panel LEDs display network clock status, AoIP link status, and active PoE power.Dimensions: 14.0cm (W) x 13.6cm (D) x 4.2cm (H).Weight: Net weight of 0.42kg; gross weight of 0.56kg.
