Sonifex AVN-DIO010-12G
MPN #AVN-DIO01
Dante to 12G-SDI converter with 64-channel embedding/de-embedding, dual Ethernet for redundancy, PoE support, and web-based configuration.

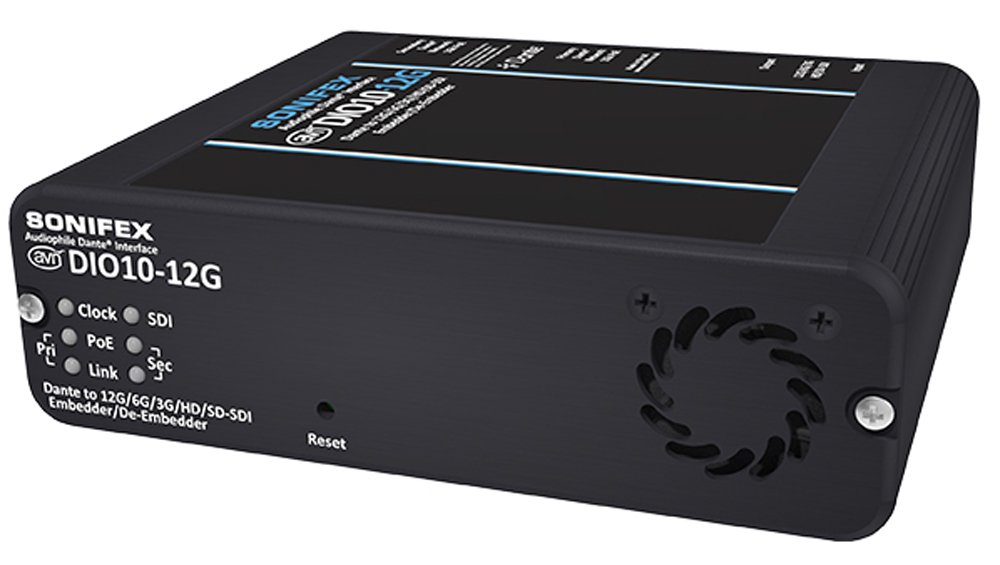

The Sonifex AVN-DIO10-12G is a versatile audio/video interface that facilitates the integration of legacy SDI equipment with Dante Audio-over-IP (AoIP) networks. It supports the full spectrum of SDI standards, from SD-SDI to 12G-SDI, enabling simultaneous embedding and de-embedding of up to 64 audio channels.
This device de-embeds audio channels from an SDI feed and maps them onto the Dante network using Dante Controller software. Concurrently, it re-embeds audio channels from the Dante network back into the SDI output. The AVN-DIO10-12G can operate in loop-through mode, where the input is directly fed to the output, or in generator mode, utilizing an integrated SDI video generator to function independently as an embedder without an existing SDI feed.

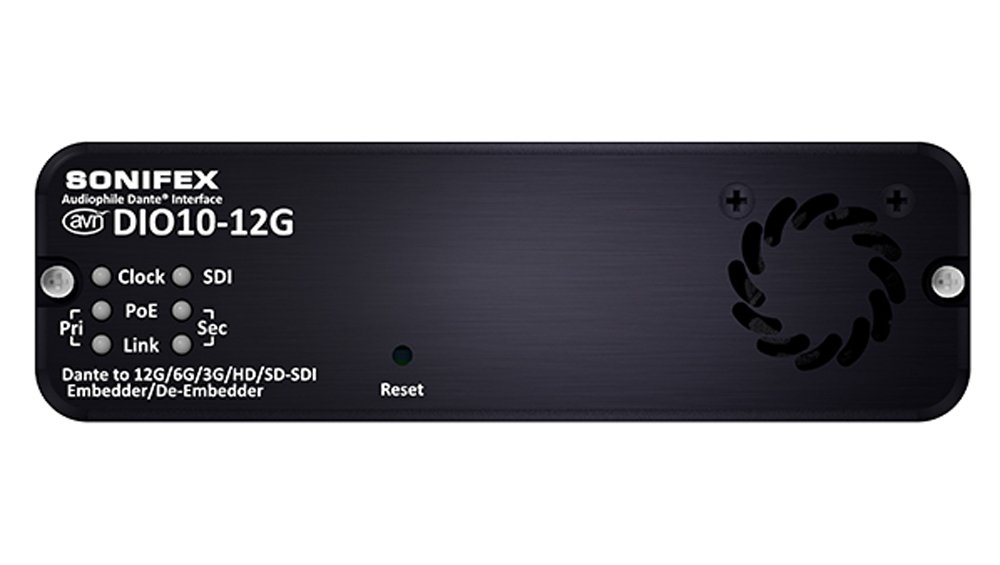

A user-friendly web interface facilitates configuration, firmware updates, and status monitoring. Front-panel LEDs provide clear indicators for network clock status, SDI lock status, AoIP primary and secondary link status, and PoE power activity. For installation flexibility, up to three AVN-DIO10-12G units can be rack-mounted using the optional AVN-DIORK kit.
Features
Comprehensive SDI Support: Handles SDI standards from SD-SDI through to 12G-SDI, ensuring compatibility with a wide array of equipment.Simultaneous Embedding and De-Embedding: Allows for the concurrent embedding and de-embedding of up to 64 audio channels, streamlining audio integration processes.Integrated SDI Generator: Features a built-in SDI generator, enabling embedding onto the SDI output without requiring an existing SDI input.Flexible Operation Modes: Operates in loop-through mode, where the input is fed directly to the output, or in generator mode, where the input and output function independently.User-Friendly Configuration: Offers a web interface for straightforward configuration, firmware updates, and status monitoring.Power over Ethernet (PoE): Utilizes PoE with dual redundancy, eliminating the need for separate power supplies and enhancing reliability.Compact Design: Its form factor allows for rack mounting, with up to three units fitting into a 1U rack space using the AVN-DIORK kit.
The AVN-DIO10-12G is ideal for broadcast studios, live event venues, and recording facilities that require seamless integration of SDI equipment into Dante AoIP networks, providing a reliable and efficient solution for complex audio routing needs.
Specifications
SDI Input/Output: Supports a wide range of SDI standards, from SD-SDI to 12G-SDI, ensuring compatibility with various video formats.
Audio Channels: Capable of embedding and de-embedding up to 64 audio channels, allowing for extensive audio routing and management.

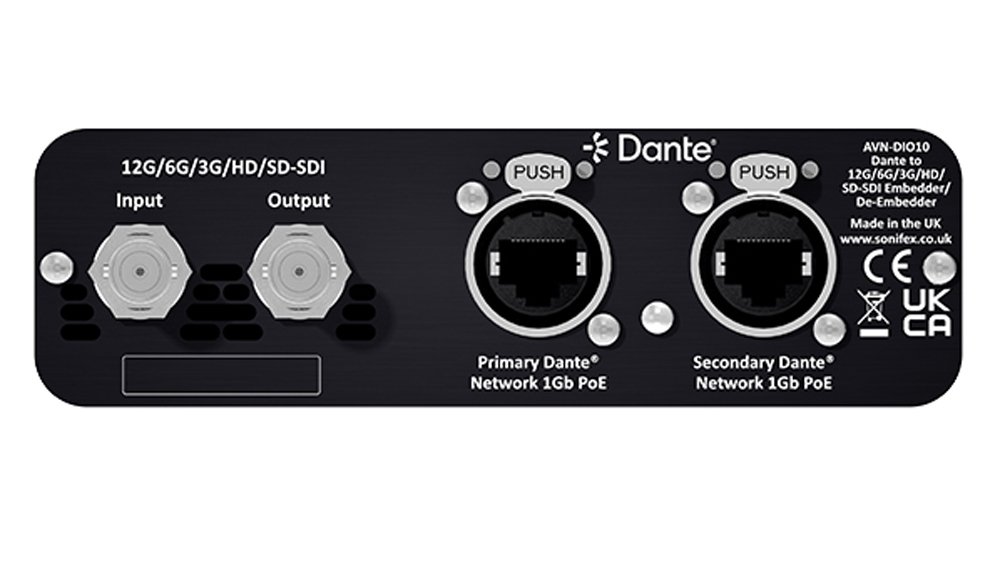

Network Connectivity: Equipped with dual Neutrik EtherCON connectors for primary and secondary Dante network ports, providing data redundancy and reliable network integration.
Power Supply: Operates via Power over Ethernet (PoE) with dual redundancy, eliminating the need for separate power supplies and ensuring continuous operation.
Control Interface: Features a user-friendly web interface for configuration, firmware updates, and status monitoring, facilitating easy management and control.
Compliance: Fully compliant with Dante standards, AES67 compatible, and Dante Domain Manager ready, ensuring seamless integration into existing AoIP infrastructures.
Additional Features: Includes an integrated SDI generator, allowing for embedding onto the SDI output without the need for an existing SDI feed. Test Tone mode provides 1kHz, 2kHz, 3kHz, and 4kHz signals for downstream SDI audio output testing.
