Sonifex AVN-AESIO8R
MPN #AVN-DIO01

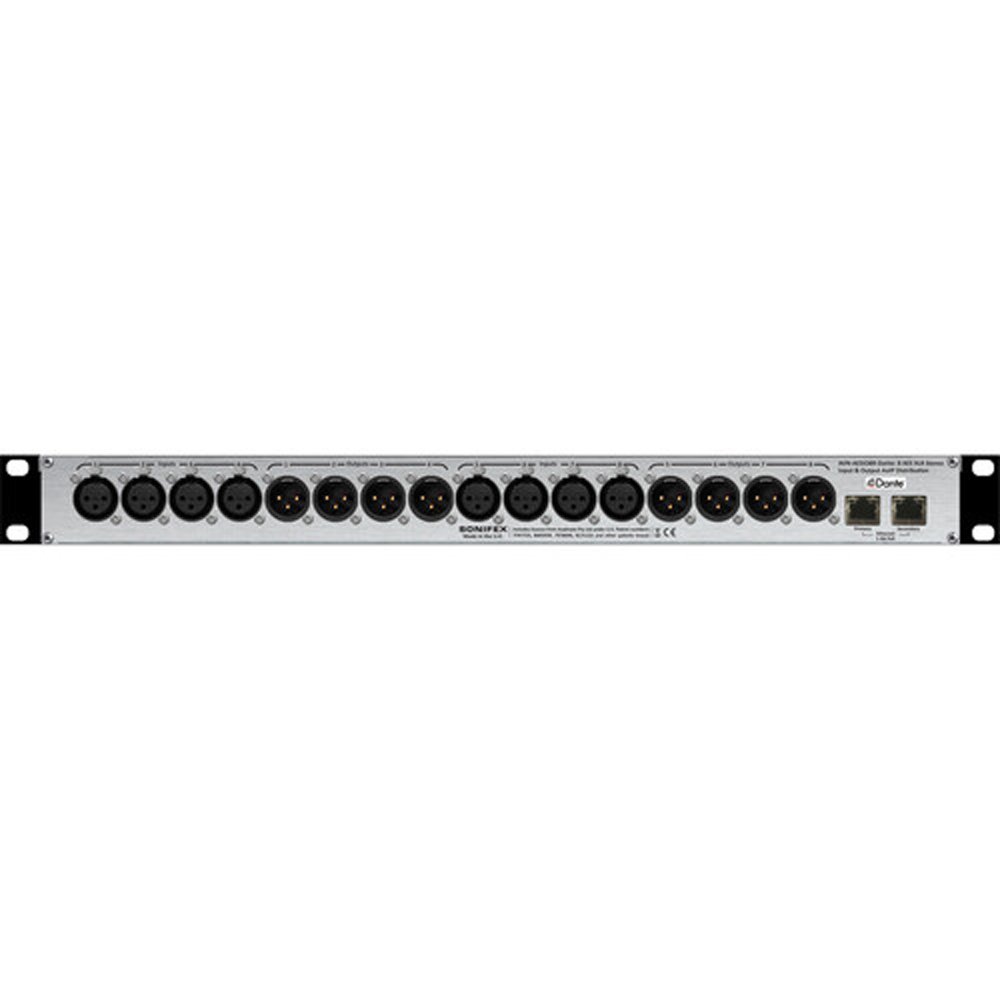

8-channel AES3 to Dante converter with dual Ethernet for redundancy, PoE, sample rate conversion, Neutrik XLR connectors, and front-panel status LEDs.

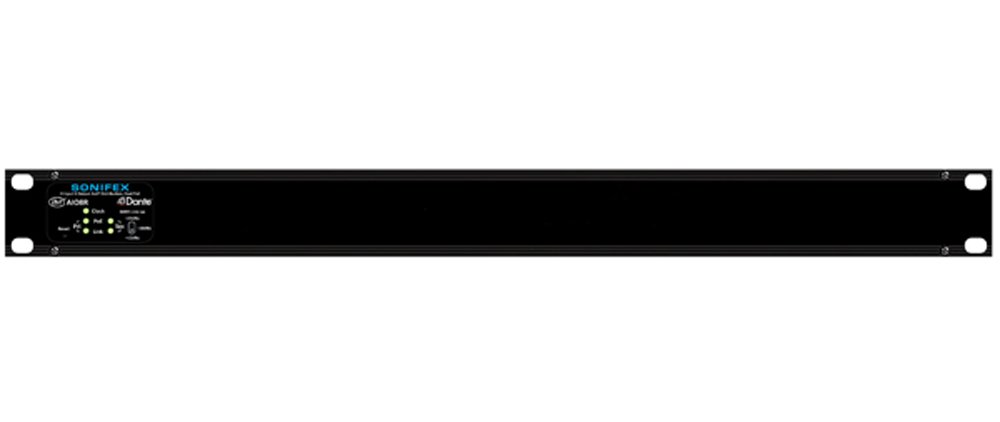

The Sonifex AVN-AESIO8R is a 1U rack-mount audio interface that facilitates the integration of up to eight stereo AES3 digital audio inputs and outputs with Dante Audio-over-IP networks. Each input accepts sample rates from 32kHz to 192kHz, with built-in sample rate conversion aligning them to the Dante system's rate. Outputs follow the Dante system's sample rate, ensuring seamless audio transmission. Dual Ethernet ports support redundant network modes, maintaining audio routing in case of a network link failure. The device is powered via Power over Ethernet (PoE) and features front-panel LEDs indicating status for PoE power, network link, clock synchronization, and AES3 input locks. Configuration is managed through Dante Controller software, and the unit is AES67 compliant and compatible with Dante Domain Manager, ensuring broad interoperability and enhanced network management capabilities.
Features
8-Channel Conversion: Converts up to 8 AES67 AoIP streams to AES3 digital audio with high-quality signal fidelity.Redundant Network Connectivity: Dual Ethernet ports ensure uninterrupted operation in critical setups.Configurable via Web Interface: Easy-to-use interface for full control of routing and settings.Robust and Compact Design: Rack-mountable chassis for reliable use in professional environments.Flexible Connectivity: Features AES3 I/O via DB25 connectors and AoIP through standard and redundant Ethernet connections.Ideal for broadcast and professional audio environments requiring reliable AES67-to-AES3 conversion with network redundancy.
Specifications
AoIP standard: Dante
Number of channels: 16 receive, 16 transmit
Number of streams: 16 receive, 16 transmit
Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Format: Linear PCM, 16, 24, or 32 bit
AES67 support: Yes
Network connectivity: 2x RJ45
Network speed: 1Gbps or 100Mbps
Network modes: Switched or redundant
Dante Domain Manager ready: Yes
AES3 inputs:
Input impedance: 110ohms balancedSupported input rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (sample rate converted to Dante system sample rate)Signal level: AES3-2009 compliantBit depth: Up to 24 bitsAES3 outputs:Output impedance: 110ohms balancedSupported output rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (set as per Dante system sample rate)Signal level: AES3-2009 compliantBit depth: 24 bitsPower specifications:PoE standard: 802.3af Class 0 PDPower range: 0.44W to 12.94WTypical PSE power usage: 7WMaximum PSE power usage: 15.4WDimensions: 48cm (W) x 11cm (D) x 4.3cm (H) (1U rack-mountable)Weight: Net 1.0kg, Gross 1.5kg
