Oracle

Fully Analogue with Total Recall: All settings including routing, EQ, pan, gain, and processing can be instantly recalled with ActiveAnalogue technology.

Compact Yet Powerful Format: Large-format functionality fits in a smaller AWS-size footprint.

Flexible Channel Count:

Available with 24 or 48 in-line channels, and expandable to mix up to 96 paths.

SSL Analogue Sound: Delivers authentic SSL sonic character with new PureDrive mic preamps and legendary 4-band EQ.

Switchable EQ Modes: Toggle between E and G series EQ curves for varied tonal shaping.

Integrated Processing Tools: Features THE BUS+ compressor, Dynamic EQ, and Transient Expander for advanced sound control.

Advanced Routing Options: 34 mix busses including 16 track, 10 aux, and 4 stereo mix busses for complex routing needs.

Dual Fader Paths: Small and Large Fader paths per channel with flexible EQ and insert assignment.

Powerful Monitoring: Multiple stereo and immersive options, with support for Dolby Atmos and external sources.

Stereo Group Inputs & VCA Control: Eight stereo groups with insert points, routing flexibility, and centralised control via VCAs.

Mid/Side Processing: M/S encoding and decoding available on stereo group inputs for precise stereo imaging.

Clear Visual Feedback: High-resolution metering with classic VU or plasma style and channel detail views.

DAW Integration: Switch between analogue control and DAW fader control with SSL 360 and FOCUS key functionality.

O-Control App Suite: Full offline and live session management, setup, and recall capabilities.

Instant Setup Templates: Save and recall complete console templates to streamline session preparation.

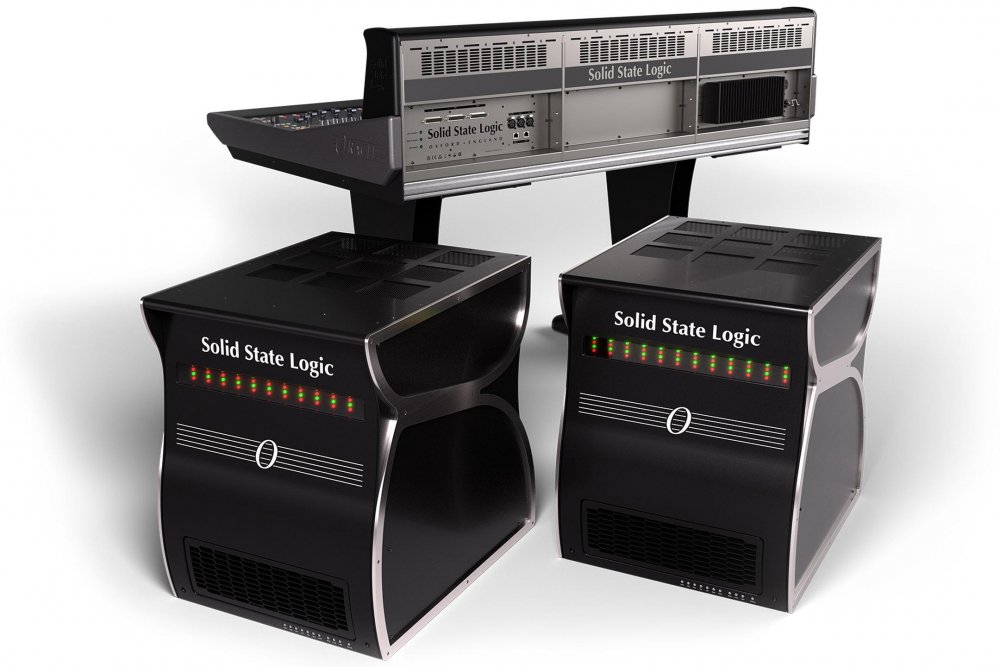

Silent Rack Design: Remote, low-noise racks for centre and channel processing allow flexible studio placement.

General Specifications

Fully analogue in-line mixing console with ActiveAnalogue technology

Compact AWS-size footprint with up to 112 mixdown inputs

Available configurations: 24 or 48 mono in-line channels

Iconic SSL analogue circuitry with total recall capability

13U 19" rack system for analogue circuitry (up to 2 channel racks + 1 center section rack)

Racks actively cooled with noise floor below NR25

DAW integration via SSL 360 and advanced FOCUS key switching

O-Control App suite for offline/online session prep and configuration (O-Setup, O-Session, O-View)

Channel Strip Specifications

In-line stereo/dual mono design with separate Record and Monitor paths

PureDrive Mic Preamps with Drive control, 75 dB gain range

4-band parametric EQ (switchable E/G Series curves)

Switchable Shelf/Bell HF/LF curves, parametric mid bands, HP Filter

EQ assignable to Small or Large Fader paths

Fully motorised 100mm faders for both fader paths

Switchable and movable Insert points per path

Dedicated Direct Outputs per path

Channels linkable in odd/even pairs for stereo operation

High-resolution per-channel display with routing and metering detail

Navigator control for parameter navigation and control

Bus Architecture

4x Stereo Mix Busses (Main A+B, C, D)

16x Track Busses (mono or stereo odd/even pairs)

10x Aux Busses (configurable mono/stereo)

8x Stereo 'Flex' Group Inputs with inserts, image control, and routing

Each bus accessible from Small or Large Fader paths

Parallel and stem mix routing supported

Foldback system with 3 independent sends

Centre Section & Monitoring

Centralised control of Main, Track, Aux Busses with visual feedback

Integrated THE BUS+ compressor with 4K, LOW THD, and Feedback modes

Dynamic EQ, Transient Expander included

Main and 4 alternative stereo monitor outputs

4 stereo external source inputs

1 surface stereo input for direct device connection

Subwoofer/LFE output with bass management (4th Alt Monitor)

Remote Monitor Control for immersive monitoring processors (e.g., Dolby Atmos)

Metering

VU or Plasma-style metering per channel and master

Classic 4000-series inspired meter display options

Full signal flow and routing visualisation per channel

Automation & Control

SSL Dynamic Automation System integrated

24 assignable VCA control faders

Mid/Side encoder and decoder on Stereo Group Inputs

DAW control per bay via FOCUS key

Templates and session recall with complete routing and processing

Scalability

Up to 96 mix paths with additional channel rack

Multiple racks allow separation of processing hardware from console surface

Up to 112 inputs at mixdown

Modular expansion of centre and channel sections
