Solid State Logic 500-series SiX Channel Strip
UPC/EAN #878076001586
MPN #729736X1
Channel strip with mic/line/instrument preamp, EQ, and compressor for 500 series racks

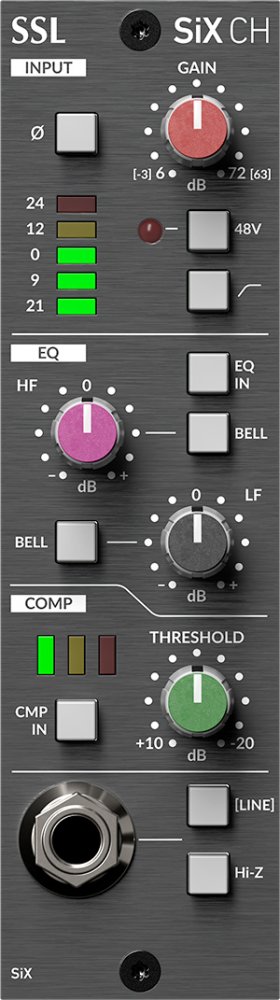

The SSL SiX Channel is a single-width 500 Series mini channel strip using the SuperAnalogue channel processing features from SSL's SiX console including the Mic-pre, low and high frequency EQ, as well as the single knob compressor.
The SiX Channel is a simple way to add additional Mic/Line inputs to the line level inputs of any professional audio device, including the Stereo channels of the SiX console. It is also a flexible way to create a professional modular mixer from a 'summing' 500 Series rack unit.
SuperAnalogue Pre-Amp input
A wide gain range, ultra low noise SuperAnalogue design provides both Line and Mic facilities with a "Line" gain range switch to cover a wide range of source levels. The nominal Line Input impedance is 10 k. This can be changed to 1 M using the Hi-Z switch. The 1M impedance makes this input suitable for very high impedance sources such as passive guitar pickups without the need for an external DI box.
Other Features;
. Switched 12 dB/oct, 75 Hz High Pass Filter (HPF)
. Polarity Switch (ΓΈ) inverts the polarity of the rear XLR Mic Amp rack input.
. A five segment LED meter shows the output signal level in dBu.
EQ
The EQ is a gentle, broad stroke two-band design with high and low shelving filters at 3.5 kHz and 60 Hz, adjustable from +15 dB to -15 dB of gain. Each band can be independently switched between shelving and bell curves.The bell curves change centre frequency to operate at 5 kHz and 200 Hz giving greater versatility from the two controls.
COMP
A versatile 'one knob' channel compressor with features that give powerful and versatile performance from its deceptively simple controls. A three LED meter indicating the amount of gain reduction being applied. The circuit has automatic make-up gain to maintain signal level for the full range of threshold settings.
Features
SuperAnalogue Mic Pre with 48V, Polarity and HPFFront Panel TRS Line Input with 1M Hi-Z switch.Switched 2 band EQ with indepandantlySwitched single knob compressor with variable threshold.5 frequency selectable High-Pass Filter and Dedicated Output Trim.
Specifications
Module signal: Mono
Pre-Amp Gain: Variable from +6 to +72 dB (Mic), -3 to +63dB (Line)
Mic Pre EIN: Typically 129dB
THD+N: <0.0015%
CMRR: >80dB (Mic), >70dB (Line)
