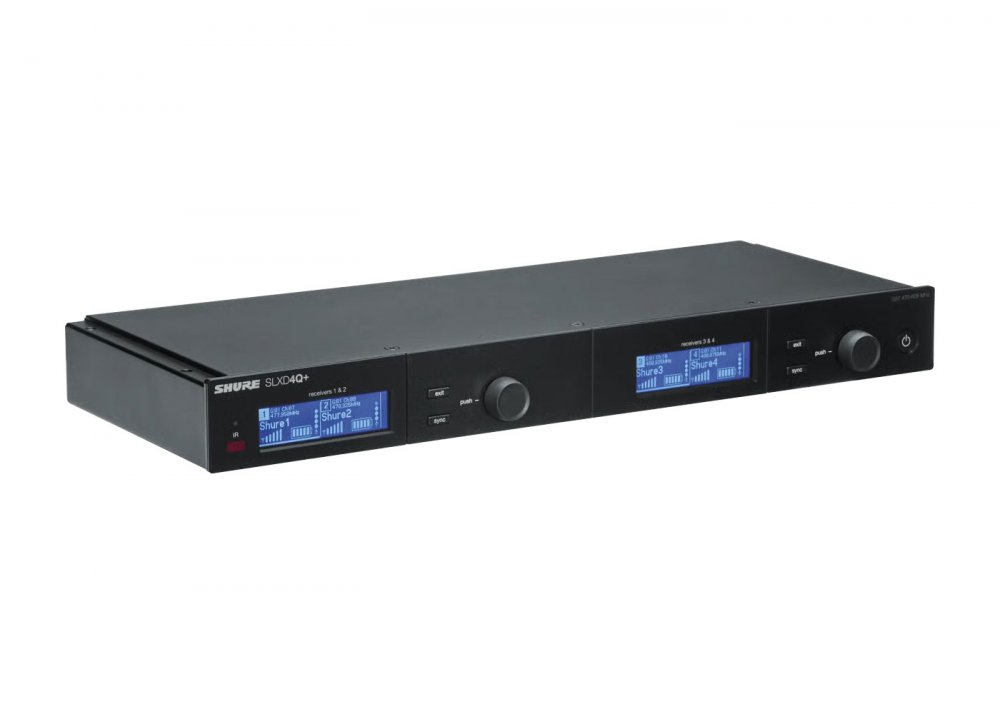

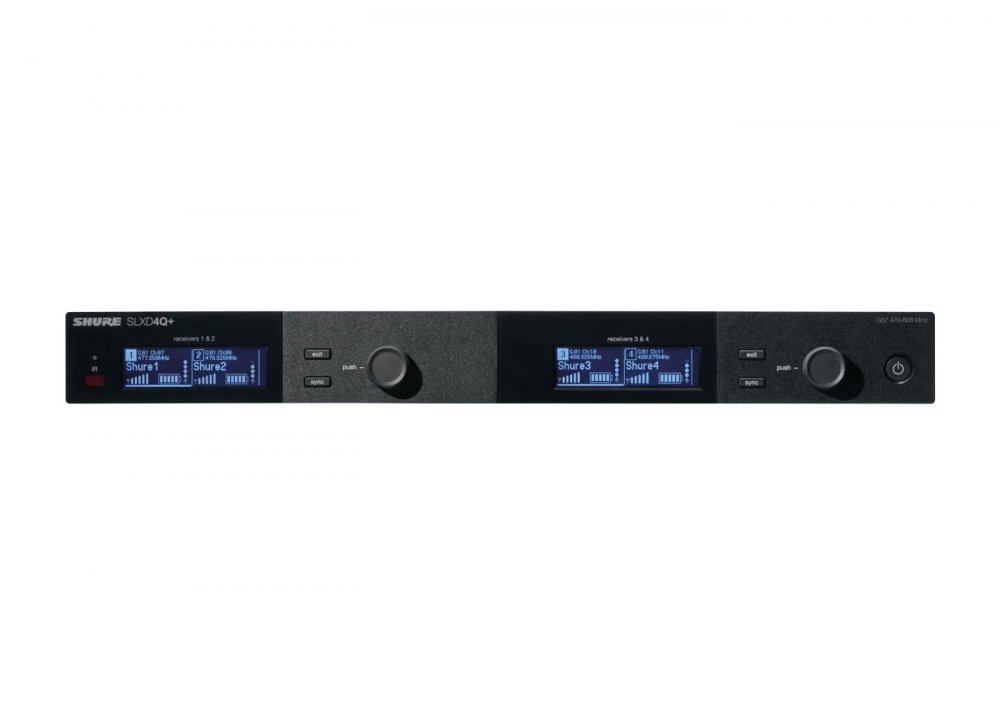

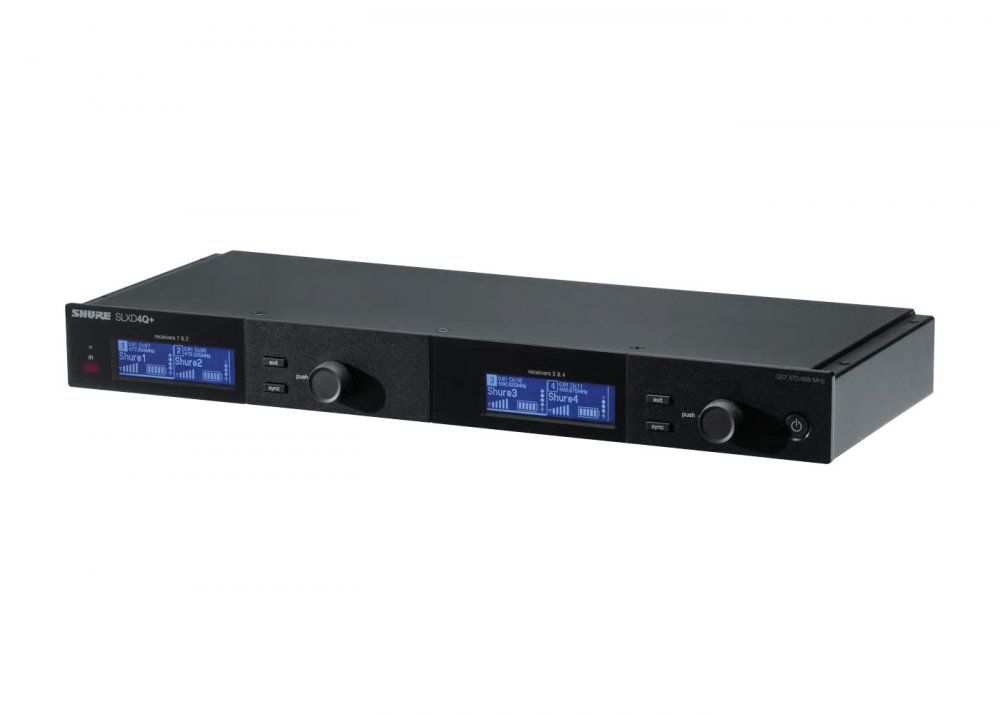

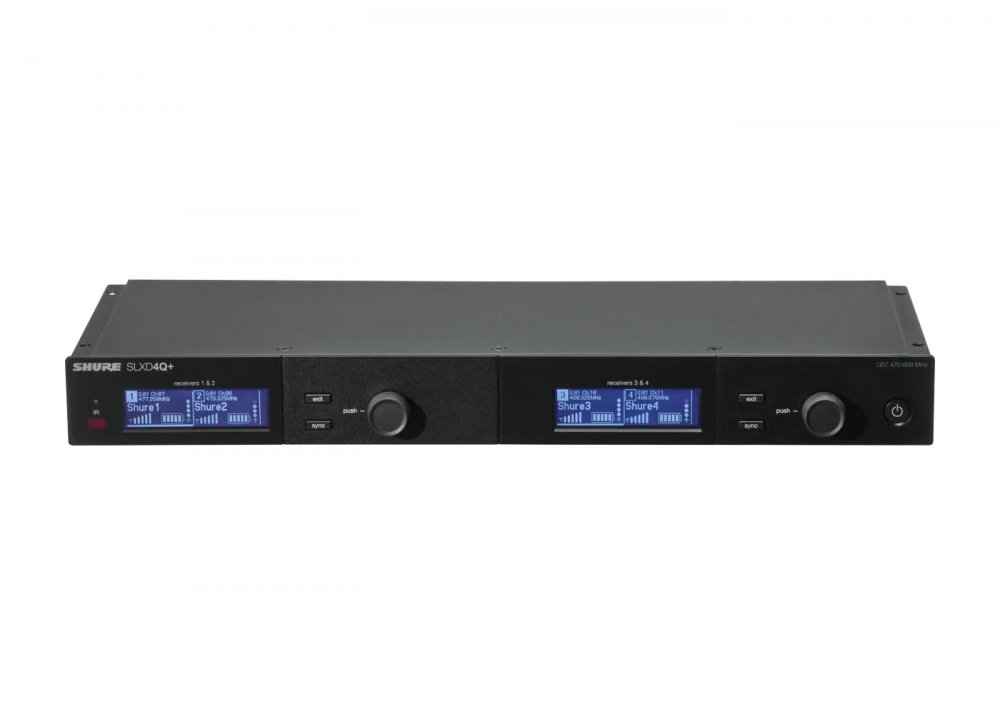

Shure SLXD4QDAN+-G57
UPC/EAN #042406870849
MPN #SLXD4QDAN+-G57
$4609.00
Save 20%, MSRP $5760.00
Quad channel receiver with Dante connectivity with 2 - 1/4-wave antennas andrackmount hardware. Frequency Range (138MHz) 470-608.
The Shure SLXD4QDAN+ Quad-Channel Digital Wireless Receiver with Dante Audio brings unmatched flexibility and scalability to professional wireless audio setups. Designed for demanding applications in performance venues, corporate events, and educational institutions, this full-rack unit consolidates four receivers into a compact, rugged chassis while delivering 24-bit digital audio and 118 dB of dynamic range. With its wide 138 MHz tuning range and advanced RF features, including digital predictive switching diversity and RF cascading, it ensures clear, reliable signal transmission across any environment.
A standout feature of the SLXD4QDAN+ is its integrated Dante Audio networking, allowing all four audio channels to be routed digitally over a single Ethernet cable-simplifying system integration and reducing cable clutter. Combined with local analog outputs, dual Ethernet ports for remote management via Shure's Wireless Workbench software, and versatile audio summing options, this receiver adapts effortlessly to a variety of mixer configurations. Whether you're managing a multi-room setup or scaling up with additional receivers, the SLXD4QDAN+ offers a powerful, space-saving solution with exceptional audio clarity and operational control.
Features
Four wireless channels in one compact, rackmount unitDante audio networking via a single Ethernet cableWide 138 MHz tuning range with up to 32 channels per bandTransparent 24-bit digital audio with 118 dB dynamic rangeAudio summing allows channel output customization (4, 3, 2, or 1 mix)RF cascade links two receivers for an 8-channel system without extra gearDual Ethernet ports for network control and setupCompatible with Shure Wireless Workbench softwareEasy transmitter pairing via IR sync and auto-scanDurable metal construction with XLR and 1/4" outputs for each channel
Specifications
General Specifications
Product Name: SLXD4QDAN Plus Quad Channel Digital Wireless Receiver with DanteSKU: SLXD4QDAN+=G57Receiver Type: Quad channel tabletop or rack mountableFrequency Band: G57 470 to 608 megahertzWireless Technology: Digital UHFDiversity Type: Digital Predictive Switching DiversityHousing: Galvanized steel 1U full rackDisplay: LCDMobile App Compatibility: ShurePlus Channels for Android and iOSSoftware Support: Shure Wireless WorkbenchEncryption: Not supportedBuilt in Recorder: NoTimecode Support: No
Audio Performance
Audio Resolution: 24 bit digital audioFrequency Response: 20 hertz to 20 kilohertz plus 1 minus 2 dBDynamic Range: 118 decibelsGain Adjustment Range: 18 to 42 decibels in 1 decibel stepsAudio Summing Options: Configurable to 4 3 2 or 1 outputsNumber of Audio Channels: 4
RF and Wireless Specs
Tuning Bandwidth: 138 megahertzMax Operating Range: 100 meters or 328 feetMax Transmitters per Band: 32Compatible Systems per TV Band: Up to 10 per 6 megahertz and 12 per 8 megahertzRF Input Spurious Rejection: 75 decibels typicalRF Cascade Support: Yes, BNC connection for additional receiverRF Input Connectors: BNCRF Input Impedance: 50 ohmsBias Voltage: 15 VDC 150 milliamps per antenna switchable
Inputs and Outputs

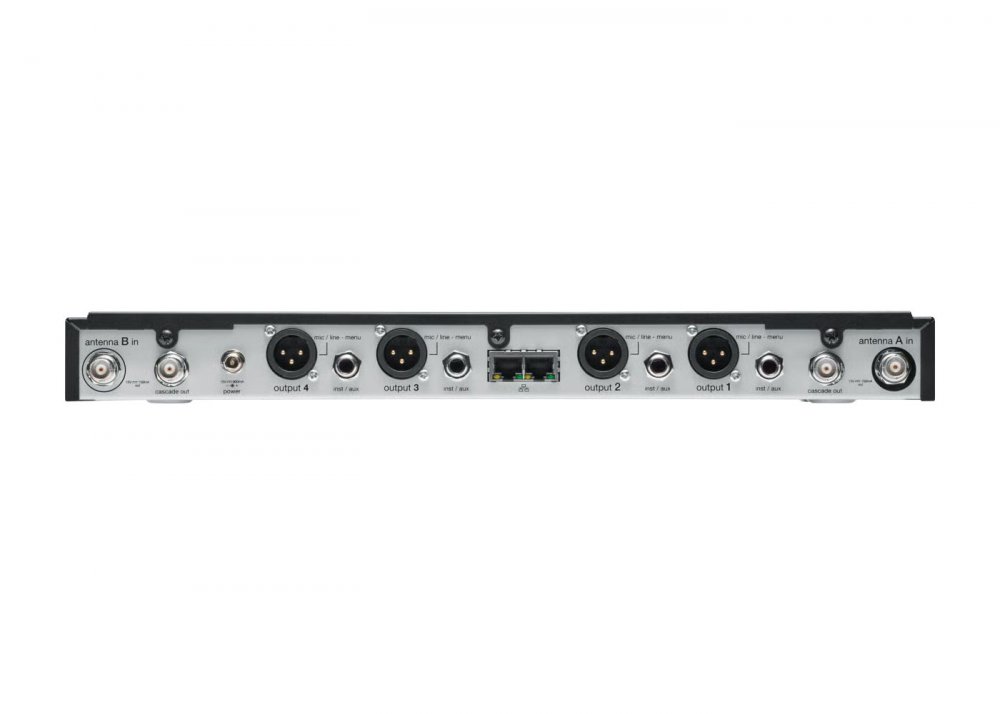

Audio Outputs: 4 XLR 3 pin balanced and 4 quarter inch TRS balancedQuarter Inch Output Impedance: 1.1 kilo ohms balanced, 550 ohms unbalancedXLR Output Impedance Line: 500 ohms balanced, 250 ohms unbalancedXLR Output Impedance Mic: 150 ohmsFull Scale Output Quarter Inch: Plus 18 dBV balanced, plus 12 dBV unbalancedFull Scale Output XLR Line: Plus 18 dBVFull Scale Output XLR Mic: Minus 12 dBVMic Line Switch: 30 decibel padPhantom Power Protection: Yes on all outputsCascade Output Connector Type: BNCCascade Output Impedance: 50 ohmsCascade Output Insertion Gain: 0 to 2 decibels
Networking and Dante Audio
Dante Audio Networking: Supported via single Ethernet cableNetwork Interface: Dual RJ45 EthernetNetwork Addressing Capability: DHCP or manual IPMaximum Ethernet Cable Length: 100 meters
Power and Battery
Power Requirement: 15 VDC at 1.03 amperesPower Supply: External adapterBattery Options for Transmitters: Two AA batteries or Shure SB903 rechargeable batteryBattery Life: Up to 8 hours
Physical Specifications
Dimensions: 42 x 393 x 152 millimeters or 1.65 x 15.47 x 5.98 inchesWeight: 1750 grams without antennas
Included in the Box
One quad channel receiver with DanteTwo quarter wave antennasTwo bulkhead BNC adaptersTwo 22 inch BNC cablesOne power supplyTwo rack mount bracketsOne hardware kitOne Ethernet cableOne adhesive foot
