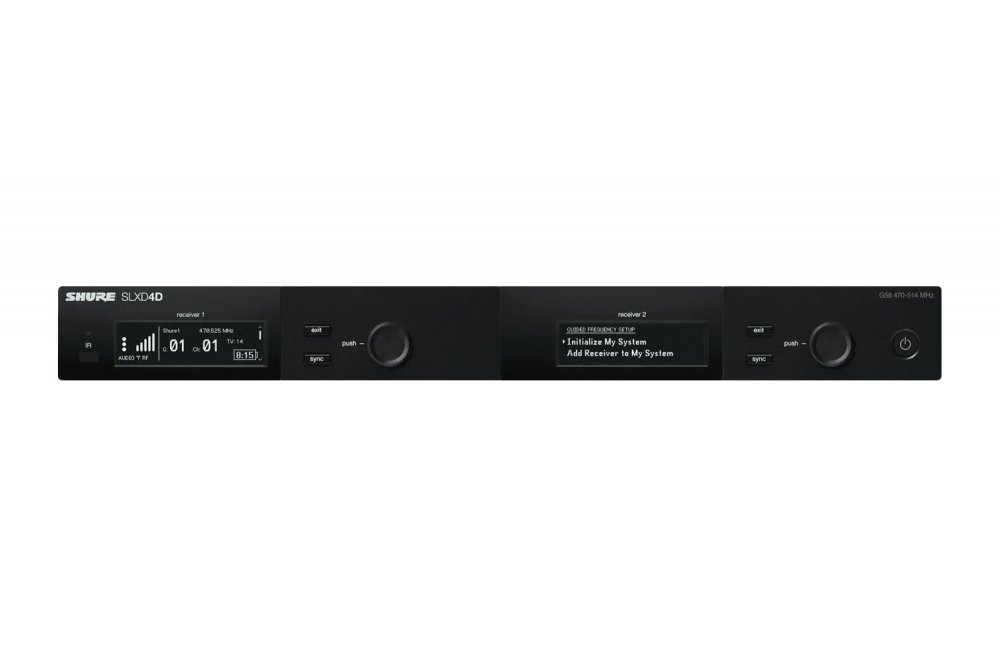

Shure SLXD4D-J52
UPC/EAN #042406556576
MPN #SLXD4D-J52
$1219.00
Save 20.2%, MSRP $1528.00
Dual channel digital wireless receiver with PS43US power supply, 1/4-wave antennas,and rackmount hardware. Frequency Range (44MHz) 558-602, 614-646.
The Shure SLXD4D Dual-Channel Wireless Receiver - J52 is a robust, rack-mountable wireless audio solution built for professionals who demand superior sound quality and system reliability. Operating within the 558-602 MHz and 614-616 MHz frequency bands, this receiver supports up to 32 compatible channels per band, making it ideal for crowded RF environments in lecture halls, theaters, houses of worship, and corporate venues.
Delivering transparent 24-bit digital audio with a 118 dB dynamic range, the SLXD4D offers consistent, interference-free performance thanks to Shure's digital predictive switching diversity. It features dual channels in a single housing, with IR sync for easy transmitter pairing, automatic channel scanning, and Ethernet networking for advanced control, group scanning, and firmware updates via Wireless Workbench or the ShurePlus Channels app. With rugged metal construction, guided setup, and compatibility with a wide array of microphone capsules and accessories, the SLXD4D ensures smooth integration and operation in multi-mic setups and live production environments.
Features
Dual-channel receiver with 24-bit digital audio and extended 20 Hz-20 kHz rangeOperates in the 558-602 MHz + 614-616 MHz UHF band44 MHz tuning bandwidth with up to 32 available channels per bandSyncs transmitters via IR scan and supports automatic channel scanningCompatible with Shure Wireless Workbench and ShurePlus Channels mobile appEthernet port for linking, group scanning, and third-party controlHigh-contrast LCD menu with guided setup mode for easy operationRugged galvanized steel housing with included rackmount hardwareUp to 8 hours battery life with AA batteries or optional rechargeable battery
Specifications
General Specifications
Product Name: SLXD4D Dual Channel Digital Wireless ReceiverSKU: SLXD4D-J52Frequency Band: J52 558 to 602 megahertz and 614 to 616 megahertzReceiver Type: Dual channel full rackConstruction: Galvanized steelDisplay: High contrast LCDCompatibility: SLX D wireless systems and transmittersCapsule Compatibility: Interchangeable microphone capsulesSoftware Support: Shure Wireless Workbench 7 and ShurePlus Channels mobile appSetup Features: Guided setup mode, automatic channel scan, IR scan and sync
Audio Performance
Audio Resolution: 24 bit digital audioFrequency Response: 20 hertz to 20 kilohertz microphone dependentDynamic Range: 118 decibelsGain Adjustment Range: 18 to 42 decibels in 1 decibel stepsMic Line Switch: 30 decibel padPhantom Power Protection: Yes on quarter inch and XLR outputs
RF and Wireless Specs
Diversity Technology: Digital Predictive Switching DiversityTuning Bandwidth: 44 megahertz region dependentChannels per Band: Up to 32Compatible Systems: Up to 10 per 6 megahertz band, 12 per 8 megahertz bandSpurious Rejection: Greater than 75 decibels typicalRF Input Connector: BNCRF Input Impedance: 50 ohms
Inputs and Outputs

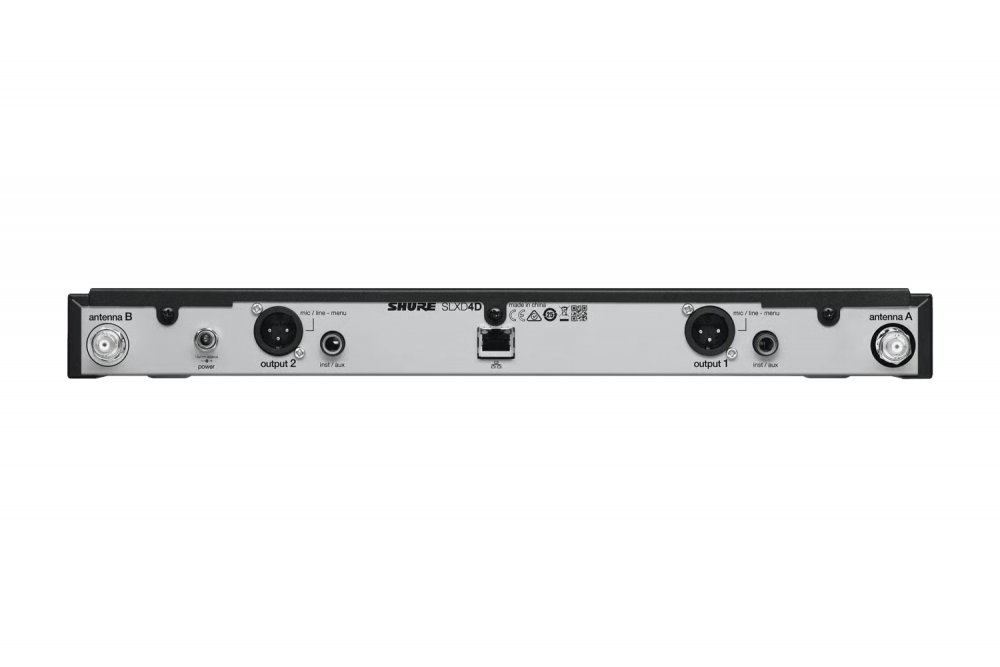

Audio Outputs: XLR balanced and quarter inch balancedQuarter Inch Output Impedance: 1.3 kilo ohms balanced, 670 ohms unbalancedXLR Output Impedance Line: 400 ohms balanced, 200 ohms unbalancedXLR Output Impedance Mic: 150 ohmsFull Scale Output Quarter Inch: Plus 15 dBV differential, plus 9 dBV single endedFull Scale Output XLR Line: Plus 15 dBVFull Scale Output XLR Mic: Minus 15 dBV
Networking
Network Interface: Single port Ethernet 10 100 MbpsAddressing Options: DHCP or manual IPMaximum Cable Length: 100 meters
Power and Battery
Power Requirement: 15 VDC at 600 milliampsPower Supply: External tip positiveBattery Options for Transmitters: Two AA batteries or Shure SB903 rechargeable batteryBattery Life: Up to 8 hours
Dimensions and Weight
Height: 42 millimetersWidth: 197 millimetersDepth: 152 millimetersWeight: 1451 grams without antennas
Included in the Box
One dual channel receiverTwo quarter wave antennasTwo bulkhead adaptersTwo 22 inch BNC cablesOne power supplyTwo short rack mount bracketsOne hardware kit
