Shure SLXD4D-H55
UPC/EAN #042406556583
MPN #SLXD4D-H55
$1219.00
Save 20.2%, MSRP $1528.00
Dual channel digital wireless receiver with PS43US power supply, 1/4-wave antennas,and rackmount hardware. Frequency Range (44MHz) 514-558.

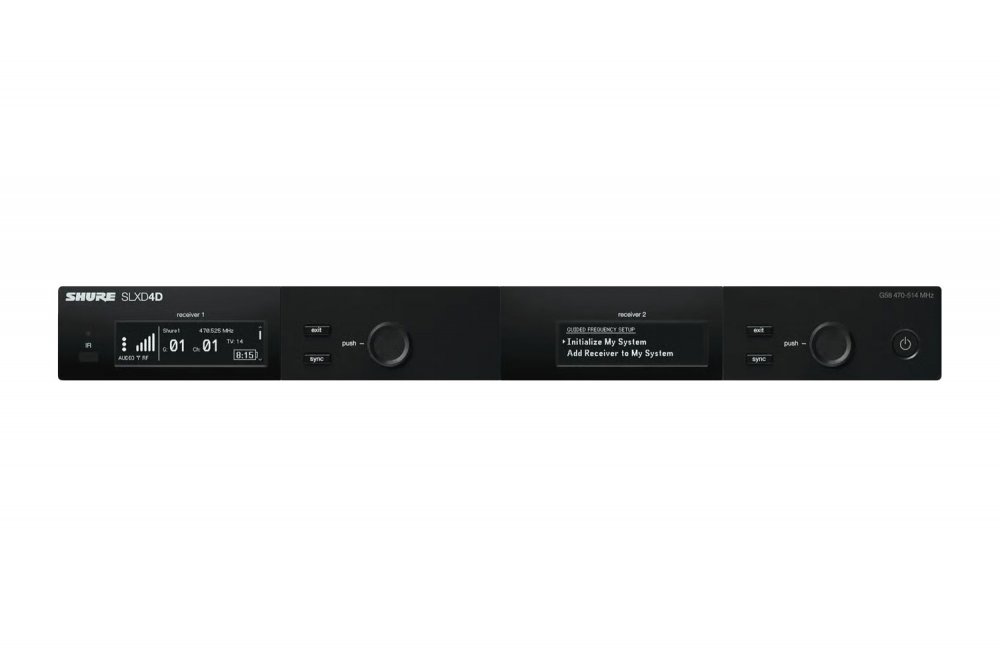

The Shure SLXD4D Dual-Channel Wireless Receiver - H55 is a high-performance, full-rack receiver designed to meet the demands of professional wireless audio across diverse environments, from conference halls and classrooms to worship services and live performances. With industry-leading 24-bit digital audio and a wide 44 MHz tuning bandwidth, it ensures pristine sound and reliable RF performance, even in challenging wireless environments.
This dual-channel receiver integrates seamlessly with a variety of Shure SLX-D transmitters and microphone configurations, including lavaliers, handhelds, and instrument mics. The SLXD4D features intuitive setup via IR sync, a guided interface with a high-contrast LCD, and compatibility with Shure's Wireless Workbench and ShurePlus Channels apps for advanced control and monitoring. It also supports networking via Ethernet for group scanning, firmware updates, and third-party control. Built into a durable steel chassis, the SLXD4D is an essential component for professionals seeking efficient, expandable, and dependable wireless systems.
Features
Dual-channel digital receiver with 24-bit audio and 118 dB dynamic rangeOperates in the 514-558 MHz UHF frequency bandSyncs easily with transmitters via IR scan and auto channel scanWorks with Wireless Workbench and ShurePlus Channels apps for remote controlDigital Predictive Switching Diversity ensures stable RF performanceEthernet port for group scans, firmware updates, and third-party controlRugged metal construction, rack-mountable, and easy to integrateIncludes antennas, mounting hardware, BNC cables, and power supply
Specifications
General Specifications
Product Name: SLXD4D Dual Channel Digital Wireless ReceiverFrequency Band: H55 514 to 558 megahertzAudio Quality: 24 bit digital audioReceiver Type: Dual channel full rack receiverDisplay: High contrast LCDHousing: Galvanized steelConstruction: Rugged metalCompatibility: SLX D wireless systems and transmittersSoftware Support: Wireless Workbench 7 and ShurePlus Channels mobile appSetup Tools: Guided setup mode, automatic channel scan, IR sync
Audio Performance
Frequency Response: 20 hertz to 20 kilohertzDynamic Range: 118 decibelsGain Adjustment Range: 18 to 42 decibels in 1 decibel stepsMic Line Switch: 30 decibel padPhantom Power Protection: Supported on quarter inch and XLR outputs
RF and Wireless Specs
Diversity Technology: Digital Predictive Switching DiversityTuning Bandwidth: 44 megahertzNumber of Channels: 32 per frequency bandSystems per TV Band: Up to 10 per 6 megahertz band, 12 per 8 megahertz bandFrequency Bands Available: G58 470 to 514 megahertz, H55 514 to 558 megahertz, J52 558 to 602 plus 614 to 616 megahertz

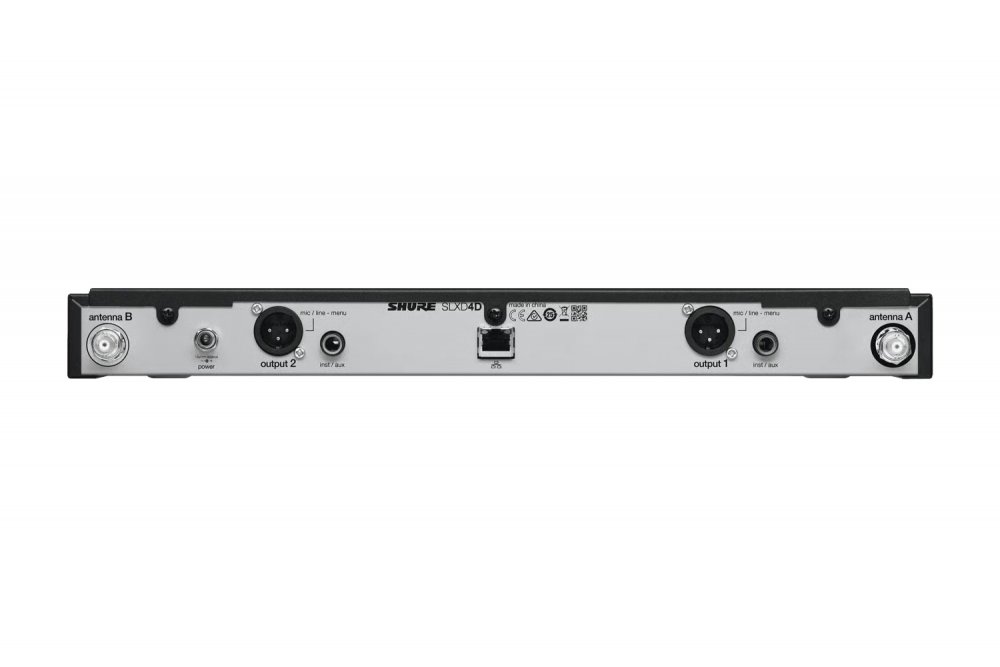

Inputs and Outputs
RF Input Connectors: BNCRF Input Impedance: 50 ohmsSpurious Rejection: Greater than 75 decibels typicalAudio Outputs: XLR balanced and quarter inch balancedQuarter Inch Output Impedance: 1.3 kilo ohms balanced, 670 ohms unbalancedXLR Output Impedance Line: 400 ohms balanced, 200 ohms unbalancedXLR Output Impedance Mic: 150 ohmsFull Scale Output: Quarter inch plus 15 dBV differential, plus 9 dBV single endedXLR Line: Plus 15 dBVXLR Mic: Minus 15 dBV
Networking
Interface: Single Port Ethernet 10 100 MbpsAddressing: DHCP or manual IPMax Cable Length: 100 meters
Power and Battery
Power Requirements: 15 VDC at 600 milliampsPower Supply: External with tip positiveBattery Options for Transmitters: Two AA batteries or Shure SB903Battery Life: Up to 8 hours
Dimensions and Weight
Height: 42 millimetersWidth: 197 millimetersDepth: 152 millimetersWeight: 1451 grams without antennas
Included in the Box
One dual channel receiverTwo quarter wave antennasTwo bulkhead adaptersTwo 22 inch BNC cablesOne power supplyTwo short rack mount bracketsOne hardware kit
