Shure SLXD4D-G58
UPC/EAN #042406556590
MPN #SLXD4D-G58
$1219.00
Save 20.2%, MSRP $1528.00
Dual channel digital wireless receiver with PS43US power supply, 1/4-wave antennas,and rackmount hardware. Frequency Range (44MHz) 470-514.

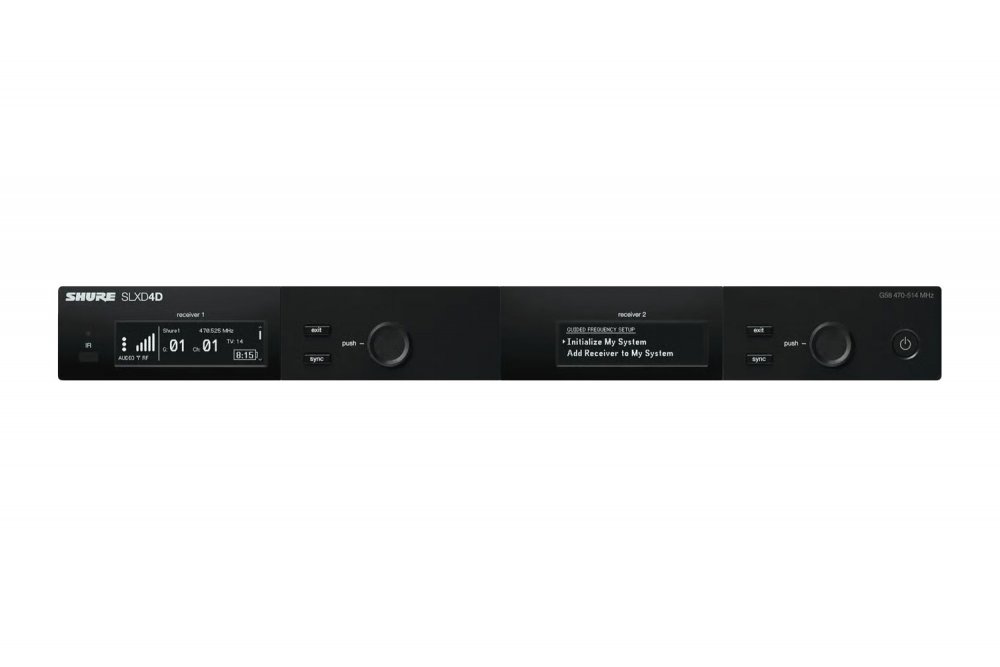

The Shure SLXD4D Dual-Channel Digital Wireless Receiver is a streamlined, rack-mountable solution for high-quality, interference-resistant wireless audio in professional environments. Designed to support up to two simultaneous wireless channels within a single rack space, it delivers transparent 24-bit digital audio, ensuring your vocals or speech are captured with clarity and detail. This receiver is ideal for small to medium venues such as lecture halls, houses of worship, and event spaces.
Offering a robust 44 MHz tuning bandwidth (region dependent) and compatibility with all SLX-D series transmitters, the SLXD4D allows for scalable wireless configurations-supporting up to 32 mics in the same frequency space. Its advanced Digital Predictive Switching Diversity helps prevent signal dropouts before they occur, while IR sync and auto-scan features simplify setup. With removable antennas, multiple output options (XLR and 1/4"), and optional networking via Ethernet for group scanning and control, the SLXD4D combines reliability, flexibility, and exceptional sound for any application.
Features
Dual-channel receiver with 24-bit digital audio for clear, natural soundOperates in UHF band with up to 32 compatible systems per frequency rangeDigital Predictive Switching Diversity ensures reliable signal without dropoutsEasy setup with automatic frequency scan and IR syncEthernet port enables group scans and remote controlRugged metal chassis with detachable antennas for rackmount useSupports both XLR and 1/4" outputs with adjustable gainIdeal for presentations, performances, worship, and education venues
Specifications
General Specifications
Product Name: SLXD4D Dual Channel Digital Wireless ReceiverSKU: SLXD4D-G58Frequency Band: G58 470 to 514 megahertzReceiver Type: Dual channel single rack spaceConstruction: Rugged metal chassisAntennas: Two removableDisplay: High contrast LCDCompatibility: All SLX D transmittersRackmountable: Yes
Audio Performance
Audio Quality: 24 bit digital audioFrequency Response: 20 hertz to 20 kilohertz microphone dependentDynamic Range: 118 decibelsLatency: Low latency (exact value not specified)Gain Control: Up to 60 decibels adjustable
RF and Wireless Specs
Diversity Technology: Digital Predictive Switching DiversityTuning Bandwidth: 44 megahertz region dependentNumber of Channels per Band: Up to 32Compatible Systems per TV Band: 10 per 6 megahertz band, 12 per 8 megahertz bandAuto Scan Frequencies: 1760Selectable Frequencies: 1760Range: Up to 330 feetNetworking: Ethernet for group scanning and local controlControl Protocol: Supports TCPI commands AMX and Crestron
Power and Battery
Power Options: Two AA batteries or Shure SB903 rechargeable batteryBattery Life: Up to 8 hours
Inputs and Outputs

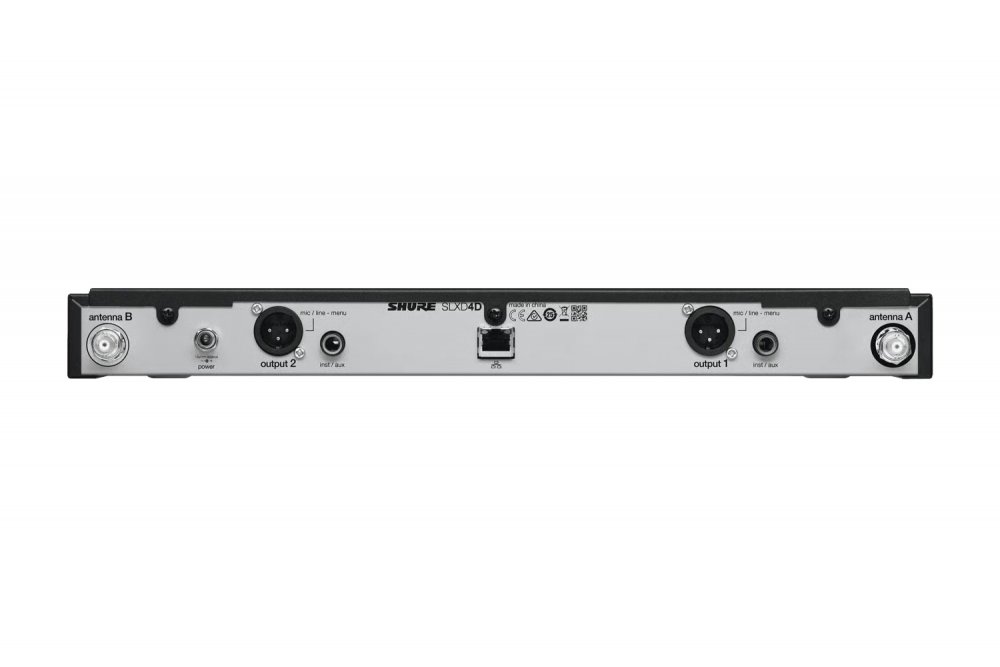

Outputs per Channel: XLR mic or line level, quarter inch instrument
Additional Features
Infrared Sync: IR scan and sync for quick transmitter pairingExpandability: Scalable up to 32 mic systemsInterchangeable Microphone Capsules: YesAntenna Compatibility: Supports UA874 active and PA805SWB passive antennasAntenna Distribution System Compatibility: UA844 plus SWB
Application Suitability
Intended Use: Speech presentation and vocal performanceVenue Type: Small to medium venues, lecture halls, houses of worship, event spaces, education facilities
