SHURE  |  SKU: 24439

Shure SLXD4-J52

Single digital receiver with PS43US power supply, 1/4-wave antennas, and rackmounthardware. Frequency Range (44MHz) 558-602, 614-646.


$649.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Shure SLXD4 Digital Wireless Receiver - J52 offers dependable wireless performance and superior audio clarity in a streamlined single-channel design. Engineered for professional-grade speech and vocal applications, it supports a broad 44 MHz tuning bandwidth and operates in the J52 frequency band (558 to 602 MHz + 614-616 MHz), making it suitable for a wide variety of venues-from corporate events and classrooms to houses of worship and live entertainment stages.

This receiver features transparent 24-bit digital audio, a dynamic range of 118 dB, and digital predictive switching diversity to ensure stable and interference-resistant transmission. Its compact half-rack metal chassis includes removable antennas, balanced XLR and 1/4-inch outputs, and an intuitive front-panel LCD for quick setup and monitoring. With support for up to 32 compatible systems in one environment and remote control capabilities via Shure's Wireless Workbench or the ShurePlus Channels app, the SLXD4 J52 is a scalable and user-friendly solution for high-performance wireless audio.

Features

Single-channel receiver with 24-bit digital audio for clear, natural sound
Operates in the 558-602 MHz + 614-616 MHz UHF band with 44 MHz tuning range
Digital predictive switching diversity for stable and reliable wireless performance
Supports up to 32 compatible systems per frequency band
Easy transmitter pairing via IR sync and automatic channel scan
Compatible with Shure Wireless Workbench and ShurePlus Channels app
Ethernet port for group scans, remote control, and firmware updates

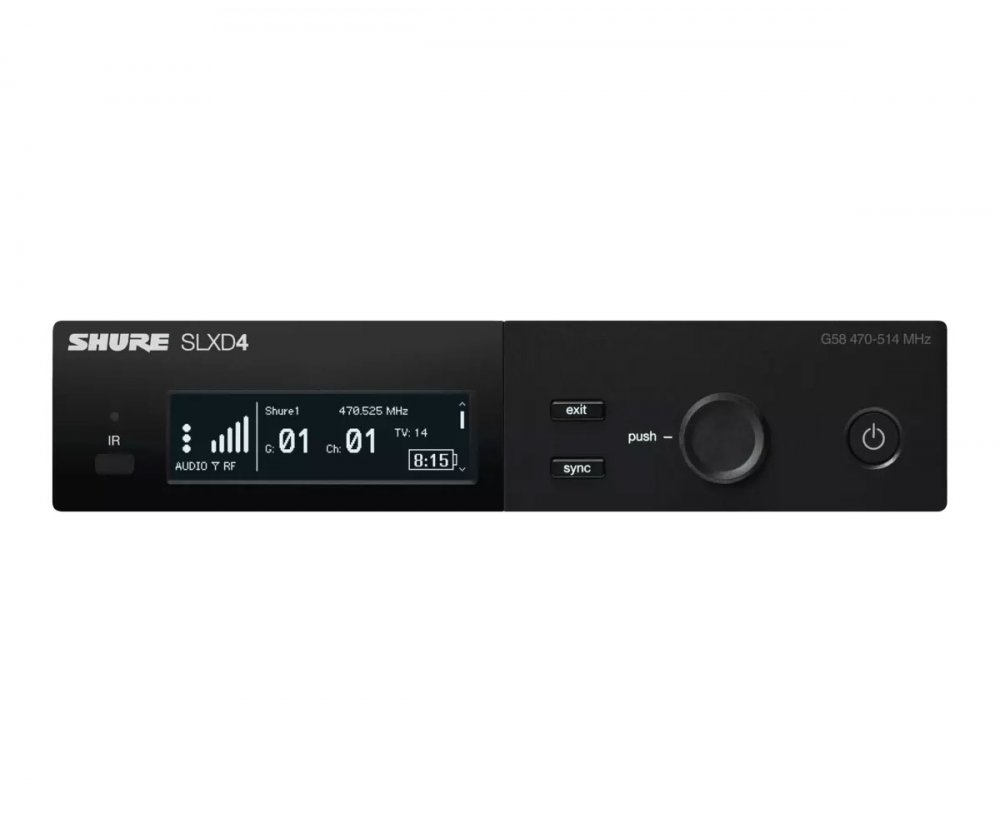

High-contrast LCD interface with guided setup for easy configuration
Durable metal housing with removable antennas and rackmount hardware included

Specifications

General Specifications

Product Name: SLXD4 Digital Wireless Receiver

SKU: SLXD4-J52

Receiver Type: Single channel half rack

Frequency Band: J52 558 to 602 megahertz plus 614 to 616 megahertz

Housing: Galvanized steel

Display: High contrast LCD

Compatibility: SLX D wireless systems and transmitters

Capsule Compatibility: Interchangeable microphone capsules

Software Support: Shure Wireless Workbench 7 and ShurePlus Channels mobile app

Setup Features: Guided setup mode, automatic channel scan, IR scan and sync

Audio Performance

Audio Resolution: 24 bit digital audio

Frequency Response: 20 hertz to 20 kilohertz microphone dependent

Dynamic Range: 118 decibels

Gain Adjustment Range: 18 to 42 decibels in 1 decibel steps

Mic Line Switch: 30 decibel pad

Phantom Power Protection: Yes on quarter inch and XLR outputs

RF and Wireless Specs

Diversity Technology: Digital Predictive Switching Diversity

Tuning Bandwidth: 44 megahertz

Channels per Frequency Band: Up to 32

Compatible Systems: Up to 10 per 6 megahertz TV band, 12 per 8 megahertz TV band

Spurious Rejection: Greater than 75 decibels typical

RF Input Connector: BNC

RF Input Impedance: 50 ohms

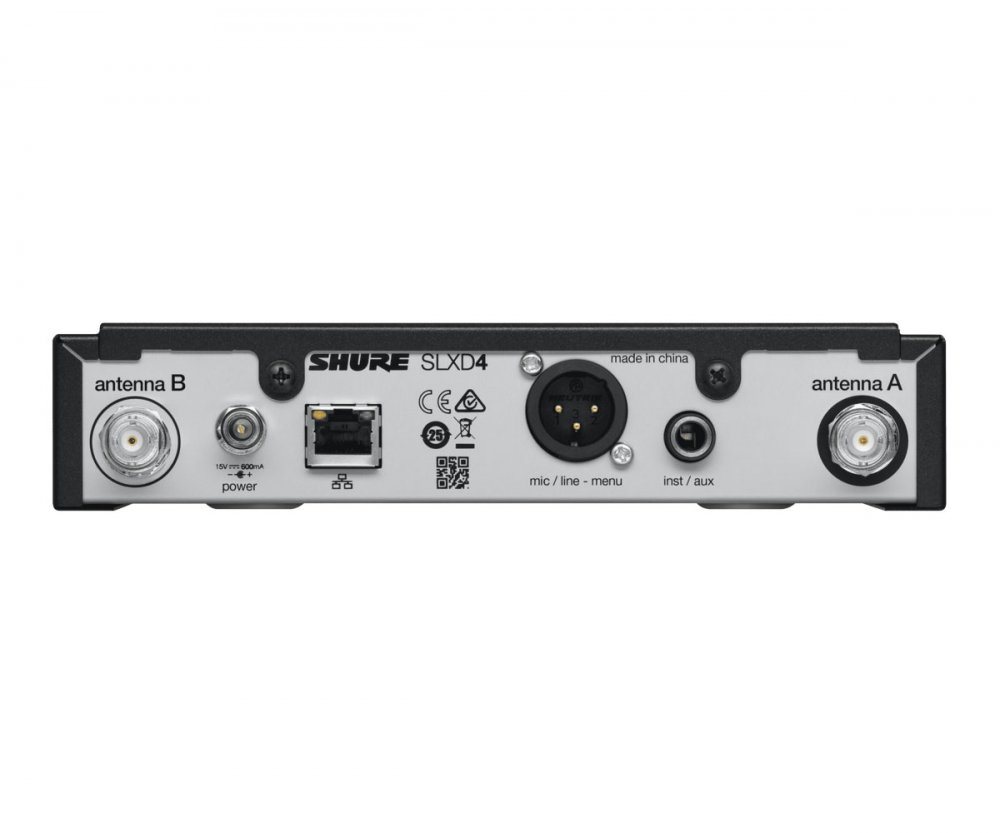

Inputs and Outputs

Audio Outputs: XLR balanced and quarter inch balanced

Quarter Inch Output Impedance: 1.3 kilo ohms balanced, 670 ohms unbalanced

XLR Output Impedance Line: 400 ohms balanced, 200 ohms unbalanced

XLR Output Impedance Mic: 150 ohms

Full Scale Output Quarter Inch: Plus 15 dBV differential, plus 9 dBV single ended

Full Scale Output XLR Line: Plus 15 dBV

Full Scale Output XLR Mic: Minus 15 dBV

Networking

Network Interface: Single port Ethernet 10 100 Mbps

Addressing Options: DHCP or manual IP

Maximum Cable Length: 100 meters

Power and Battery

Power Requirement: 15 VDC at 600 milliamps

Power Supply: External with tip positive

Battery Options for Transmitters: Two AA batteries or Shure SB903 rechargeable battery

Battery Life: Up to 8 hours

Dimensions and Weight

Height: 42 millimeters

Width: 197 millimeters

Depth: 152 millimeters

Weight: 816 grams without antennas

Included in the Box

One single channel receiver

Two quarter wave antennas

Two bulkhead adapters

Two 22 inch BNC cables

One power supply

Two short rack mount brackets

One hardware kit
