Shure SLXD4-H55
UPC/EAN #042406556750
MPN #SLXD4-H55
$1219.00
Save 20.2%, MSRP $1528.00
Single digital receiver with PS43US power supply, 1/4-wave antennas, and rackmounthardware. Frequency Range (44MHz) 514-558
The Shure SLXD4 Digital Wireless Receiver - H55 is a high-performance, single-channel receiver designed for seamless operation in demanding audio environments such as houses of worship, lecture halls, and live performance venues. Operating in the 514-558 MHz UHF band, it features an impressive 44 MHz tuning bandwidth and supports up to 32 simultaneous systems, ensuring exceptional spectrum efficiency. With crystal-clear, 24-bit digital audio and ultra-low latency (3.2 ms), it delivers detailed, transparent sound for a range of vocal applications.
Built for professional use, the SLXD4 features true diversity reception with predictive switching, a durable metal half-rack chassis, and easy-to-navigate controls via its high-contrast LCD interface. It offers both XLR and 1/4-inch balanced outputs, plus Ethernet connectivity for coordinated multi-system setup using Shure's Wireless Workbench or the ShurePlus Channels mobile app. Whether installed or used in portable racks, the SLXD4 ensures reliable signal stability and effortless system integration, making it a versatile and essential tool for any wireless audio setup.
Features
Single-channel wireless receiver with 24-bit digital audioOperates in the 514"558 MHz UHF band with 44 MHz tuning rangeDigital predictive switching diversity for stable signal receptionSupports up to 32 compatible transmitters per bandEasy pairing with transmitters via infrared sync and auto-scanWorks with Shure Wireless Workbench and ShurePlus Channels appEthernet port for networked group scans and firmware updatesHigh-contrast LCD screen with intuitive setup interfaceDurable half-rack steel chassis with removable antennasIncludes rackmount hardware and accessories for installation
Specifications
General Specifications
Product Name: SLXD4 Digital Wireless ReceiverSKU: SLXD4-H55Frequency Band: H55 514 to 558 megahertzReceiver Type: Single channel half rack tabletop or rack mountableWireless Technology: Digital UHFDiversity Type: Digital Predictive Switching DiversityLatency: 3.2 millisecondsMobile App Compatibility: ShurePlus Channels for Android and iOSEncryption: Not supportedBuilt-in Recorder: NoTimecode Support: No
Audio Performance
Audio Resolution: 24 bit digital audioFrequency Response: 20 hertz to 20 kilohertz plus 1 minus 2 dB microphone dependentDynamic Range: 118 decibelsGain Range: 0 to 21 decibels in 3 decibel stepsNumber of Audio Channels: 1
RF and Wireless Specs
Number of Selectable Frequencies: 1760Tuning Bandwidth: 44 megahertzMax Operating Range: 100 meters or 328 feetMax Transmitters per Band: 32Compatible Systems: Up to 10 per 6 megahertz band and 12 per 8 megahertz band
Inputs and Outputs

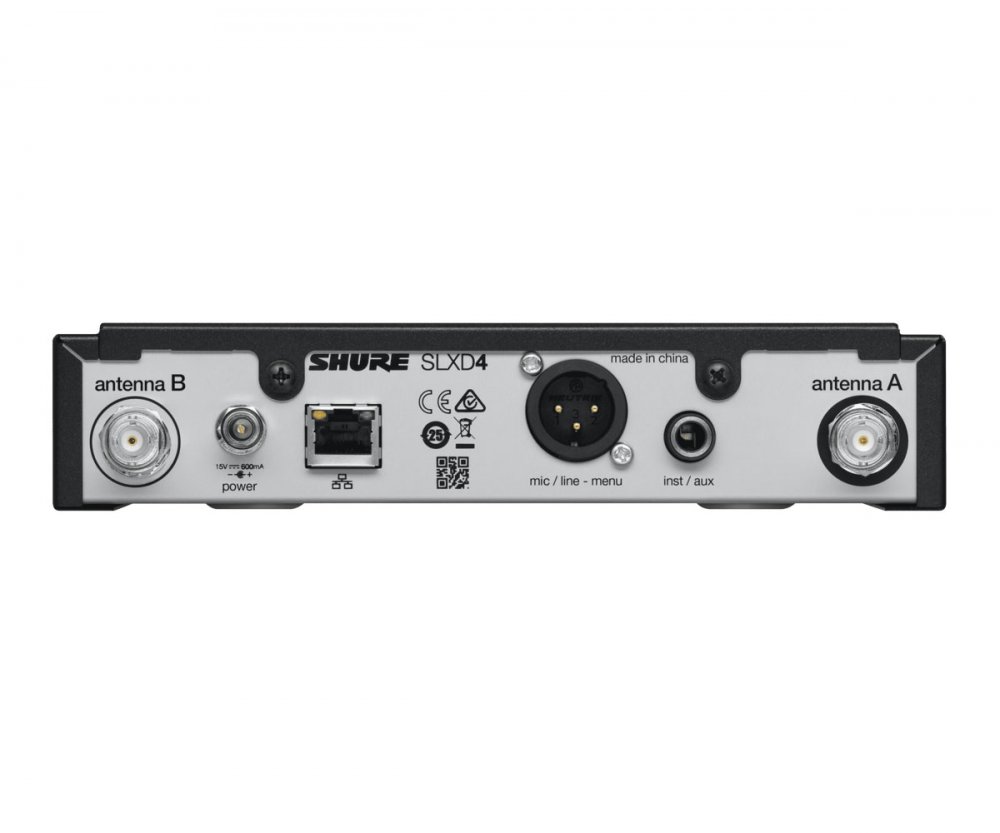

Audio Outputs: 1 XLR 3 pin balanced mic or line, 1 quarter inch TRS balancedRF Input Connectors: 2 BNC quarter wave removable rear mountNetwork I O: 1 RJ45 Ethernet DHCP or manual IPUSB or Lightning Connectivity: Not supported
Display and Interface

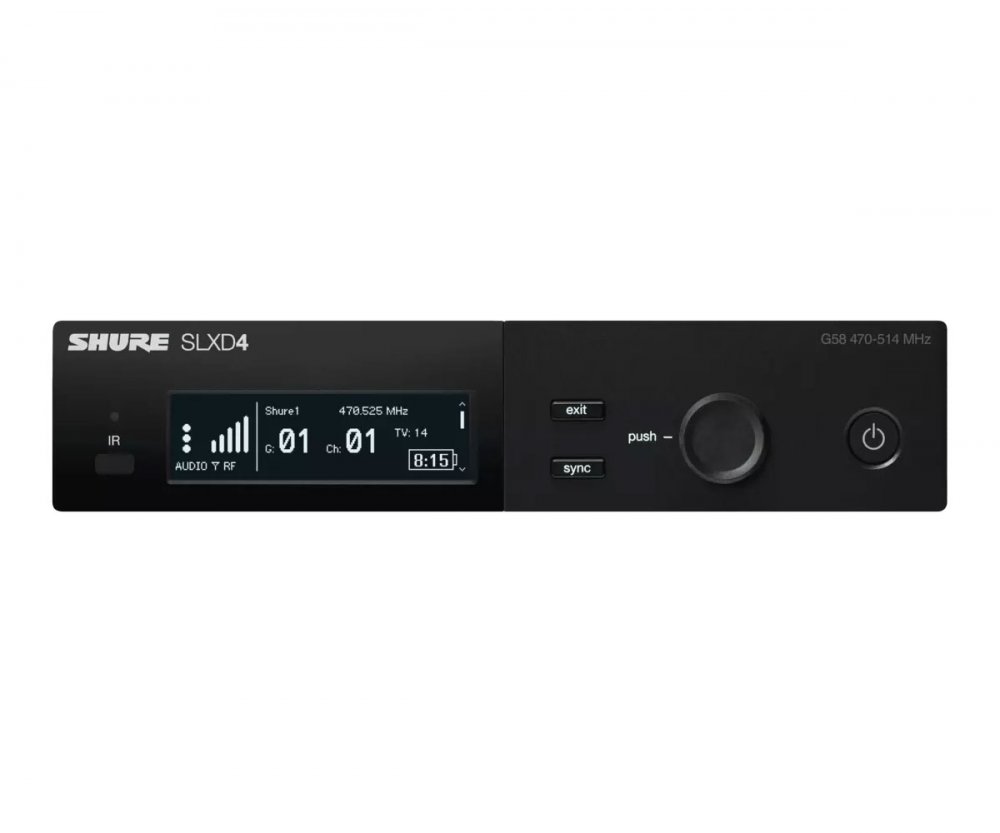

Display Type: Backlit LCDIndicators: RF, battery status, audio output
Power and Battery
Power Supply: 15 VDC at 600 milliamps center positive AC or DC adapterInput Voltage: 100 to 240 VAC 50 or 60 HzBattery Options for Transmitters: Two AA batteries or Shure SB903 rechargeable batteryBattery Life: Up to 8 hours
Physical Specifications
Dimensions: 197 x 42 x 152 millimeters or 7.8 x 1.7 x 6 inchesWeight: 816 grams or 1.8 pounds without antennaHousing Material: SteelEnvironmental Resistance: Not rated
Included in the Box
One single channel receiverTwo quarter wave antennasTwo bulkhead adaptersTwo 22 inch BNC cablesOne power supplyTwo short rack mount bracketsOne hardware kit
Packaging Information
Package Weight: 6.41 poundsBox Dimensions: 17.9 x 13.8 x 4.5 inches
