Shape DSLR Kirk Neff Offset Rig Bundle
UPC/EAN #629266003237
MPN #DSLRKN1
$1495.12
Save 12%, MSRP $1699.00
Shoulder-mount solution for DSLR and other compact cameras with offset design, removeable shoulder pad and handgrips, Follow Focus with Friction & 0.8 Gears, and 4x4? Matte Box

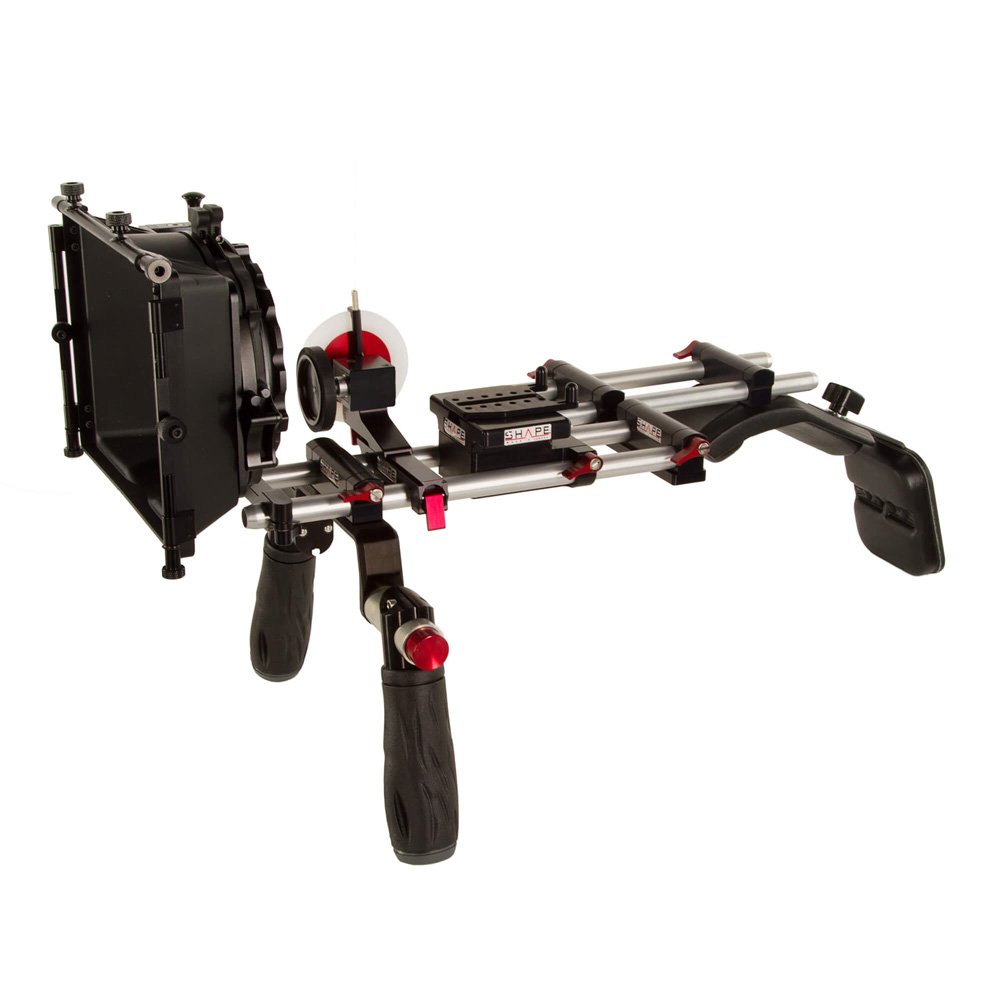

The DSLR Kirk Neff Offset Rig Bundle from SHAPE is a 15 mm rod, shoulder-mount solution designed for DSLR or other compact cameras and comes complete with a matte box and follow focus. The offset design places your camera's LCD screen in front of your eyes for easier viewing while shooting. At the heart of the bundle are the DSLR Kirk Neff Baseplate 2.0, a rod offset bracket, and a pair of 10?- and 12?-long 15 mm rods. The rig, matte box, and follow focus are supported using an included shoulder pad and dual handgrips. Your camera attaches to the baseplate via a V-lock quick-release camera plate. The plate is also compatible with third party support systems that utilize the V-lock interface. The baseplate provides clamps to support one of the 15 mm rod pairs, allowing you to mount the dual handgrips, matte box, and follow focus in front of the baseplate, as well as the rod offset bracket behind it.
The Quick Handle Rod Bloc provides dual handgrip support and features SHAPE's Push-Button rosette release, which allows you to adjust the angle of the handgrips without having to remove your hands from the rig. At the rear of the rig is the Mini Composite Shoulder Pad which provides padded shoulder support for the rig. It mounts onto the pair of 15 mm rods extending out the back of the rod offset bracket. A Back Pad is included which attaches to the shoulder pad for augmented camera support and comfort. A 1/4?-20 hole allows for additional accessories to be added.
DSLR Kirk Neff baseplate 2.0 (DSLRKNBPLT2.0)
The DSLR Kirk Neff Baseplate 2.0 from SHAPE is a 15 mm rod baseplate designed for DSLR cameras that utilizes a standard V-lock quick-release system. The quick-release plate provides a 1/4?-20 threaded camera screw and has rubber stoppers at the back to prevent your camera from twisting during operation. The rubber stoppers can be adjusted and removed using the included hex key. For alignment and balance adjustments, the V-lock delta adapter on the bottom of the quick-release plate can be also adjusted forward/backward, and the camera screw can be placed in a front or rear position - using appropriate hex keys. The baseplate itself features two 15 mm rod ports with thumbscrews. It's design places the optical center of camera between the two rods and places the lens at a height suitable for use with a matte box. A pair of 8? aluminum rods come included.
Delta adapter (DELTA)
Quick release adaptor plate built with superior quality material; The V SHAPE is compatible with the Quick Release Marbel. Compatible with the Quick release plate Sony VCT-U14 and similar plates. You can attach the Quick Marbel Delta adaptor underneath your camera and attached it to your SHAPE camera rig.
15 mm 8 in rods (15TUBE8)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter8-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish
Delta adapter (DELTA)
Quick release adaptor plate built with superior quality material; The V SHAPE is compatible with the Quick Release Marbel. Compatible with the Quick release plate Sony VCT-U14 and similar plates. You can attach the Quick Marbel Delta adaptor underneath your camera and attached it to your SHAPE camera rig.
Quick handle rod bloc (HAND5)
The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.
SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.
SHAPE Composite mini shoulder pad (SHPAD3)
The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.
Back pad (PAD1)
The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad's position can be adjusted to the user's preference - up to 2? vertically and 360 horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.
Offset rail 15 mm 2-rod bloc (BMOFBRAC)
The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods.
Follow focus friction & gear clic (FFCLIC)
The SHAPE Friction & Gear Follow-Focus Clic with Adjustable Marker is made of lightweight anodized CNC aluminum for strength and durability. It is designed to attach onto standard 15 mm rods of shoulder support rigs and other rigs. It attaches onto them via a clamp system, with simplicity. You would sit the Clic on top of the rods, and then slide and close a SHAPE-patented lever clamp underneath the rods, and the lever locks and holds the Clic securely on the rods.
The Clic's focus mechanism also works with a clamp system, which when unlocked loosens the focus mechanism and allows it to be moved horizontally. It moves so to adjust itself closer to the lens. As it moves, its main feature - the focus disk - moves with it, and the focus disk is what reaches the lens. The focus disk can either be a friction wheel or a gear wheel. Both are present in this package and replacing one with the other is accomplished with the help of the included Allen wrench. The friction wheel has a rubber outer surface that would press up against the lens, keep firm contact with it, and ensure accurate and slip-free focusing. The friction wheel would serve well for most lenses and is made of high-quality rubber that in cold temperatures won't get too cold to lose its grip. The gear wheel would accommodate those lenses that specifically have teeth on their focusing rings, and it would do so without any ring gears, by pressing its 0.8 pitch gears into the teeth.
The focus mechanism can be used on either the left or the right side of the lens, depending on the direction you place the Clic onto the rods in. And the focus disk itself can be used either in front of the focus mechanism or behind it, so to accommodate a wider variety of lens lengths. To move the disk to the rear, you would first just unscrew two screws from the gearbox. Once the screws are off, the focus disk can just be flipped over for use with longer lens constructions. The white mark disk at the right of the red knob is made of highly resistant Delrin thermoplastic. It can be written on with non-permanent markers to mark up focus measurements for various predetermined shots, and it is interchangeable and thereby many predetermined measurements can be kept ready at your side. Additionally, a slide-adjustable marker made of aluminum is included to be attached beside the mark disk and to be moved and tightened into positions along the disk.
0.8 mm pitch aluminum gear for ffclic (G053-0.8)
The SHAPE 0.8 Pitch Aluminum Gear for Follow Focus Friction and Gear Clic can be used with geared, cine lenses and 0.8 lens gears. It is compatible with the SHAPE Lens Gear Kit (0.8 Pitch) and is included with all Follow Focus Friction and Gear Clic (FFCLIC) follow focuses. The gear is constructed from aluminum for strength and durability.
Used with cine lenses and lens gearsCompatible with Lens Gear Kit (0.8 Pitch)Included with Follow Focus Friction and Gear Clic (FFCLIC) Follow FocusConstructed from aluminum for durability
15 mm 10" rods (15TUBE10)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter10-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish15 mm 12" rods (15TUBE12)
15 MM 12" RODS
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter12-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish
Matte box 4x4 (MATT44)
The SHAPE 2-Stage 4 x 4? Matte Box accepts lenses with up to a 105 mm front outside diameter. The main frame made of carbon fiber. It mounts to 15 mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard. Two rotating filter stages support the use of 4x4? filters. The matte box comes with a top flag (eyebrow), side flags, six matte box donuts in 65, 77, 85, 88, 100 and 105 mm sizes, and (1) elastic donut. The matte box also has a rear opening of 100 mm for lenses.
The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 65, 77, 85, 88, 100, 105 mm. The included elastic donut supports lenses with a front outside diameter between 65 and 105 mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom. The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lockdown thumbscrew loosen accidentally. The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65? vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85 mm distance from LWS rod center to lens port center.
Features
Complete Shoulder-Mount SolutionDSLR Kirk Neff Baseplate 2.0V-Lock Quick-Release Camera PlatePush-Button Handgrip AdjustmentMini Composite Shoulder Pad & Back PadFollow Focus with Friction & 0.8 Gears4x4? Matte BoxTwo 4x4? Rotating Filter Stages10? & 12? 15 mm RodsOffset Bracket
Specifications
What's in the box
(1) DSLR BASEPLATE CAGE 2.0 (DSLRKN2.0)
(1) DELTA PLATE ADAPTER (DELTA)
(1) OFFSET RAIL 15MM ROD BLOC
(1 PAIR) OF RUBBER QUICK HANDLE WITH ROD BLOC AND PUSH-BUTTON
(1) COMPOSITE SHOULDER PAD (SHPAD3)
(1) BACK PAD
(1) FOLLOW FOCUS FRICTION & GEAR CLIC
(1) MATTE BOXE 4X4
(2) 15MM RODS 10?
(2) 15MM RODS 12?
Weight:
9.63 lbs 4.37 kg
Dimensions:
13.57 x 11.73 x 25.36 in
34.5 x 29.8 x 64.4 cm
