Shape Blackmagic Pocket Cinema 4K & 6K Shoulder Mount Kit
UPC/EAN #629266008713
MPN #BM4KSM

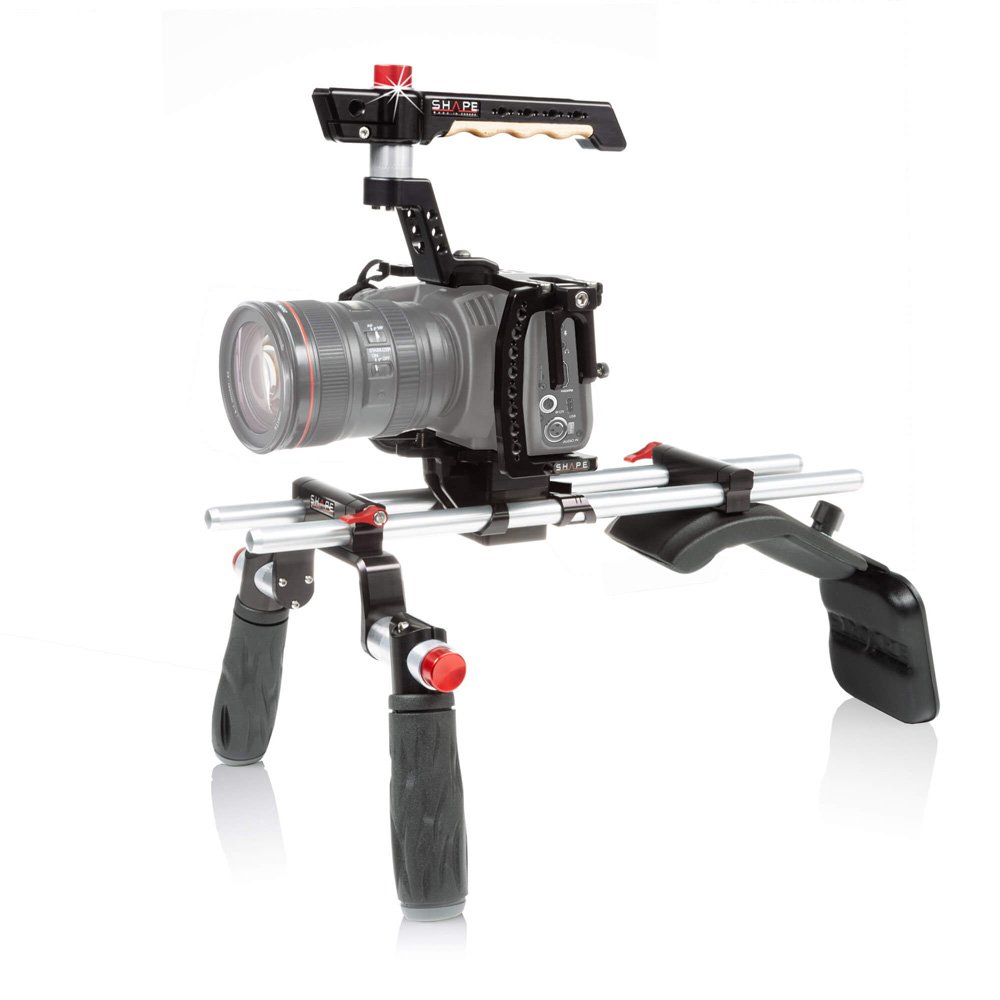

Shoulder mount for Blackmagic Pocket Cinema 4K and 6K cameras with top handle with a push-button, 15 mm LW quick release rod base system, and a pair of quick handles
The Shoulder Mount Kit from SHAPE features a CNC machined aluminum cage with 1/4?-20 threaded holes on the top and bottom to secure the Blackmagic Pocket Cinema 4k, 6k camera. This mount includes a top handle with a Push-Button, a 15 mm LW quick release rod base system, 1 pair of 18? 15 mm rods, a pair of quick handles with a Push-Button, a shoulder mount, and a back pad.
SHAPE Blackmagic Pocket cinema 4k , 6k cage with 15 mm rod system (C4KROD)

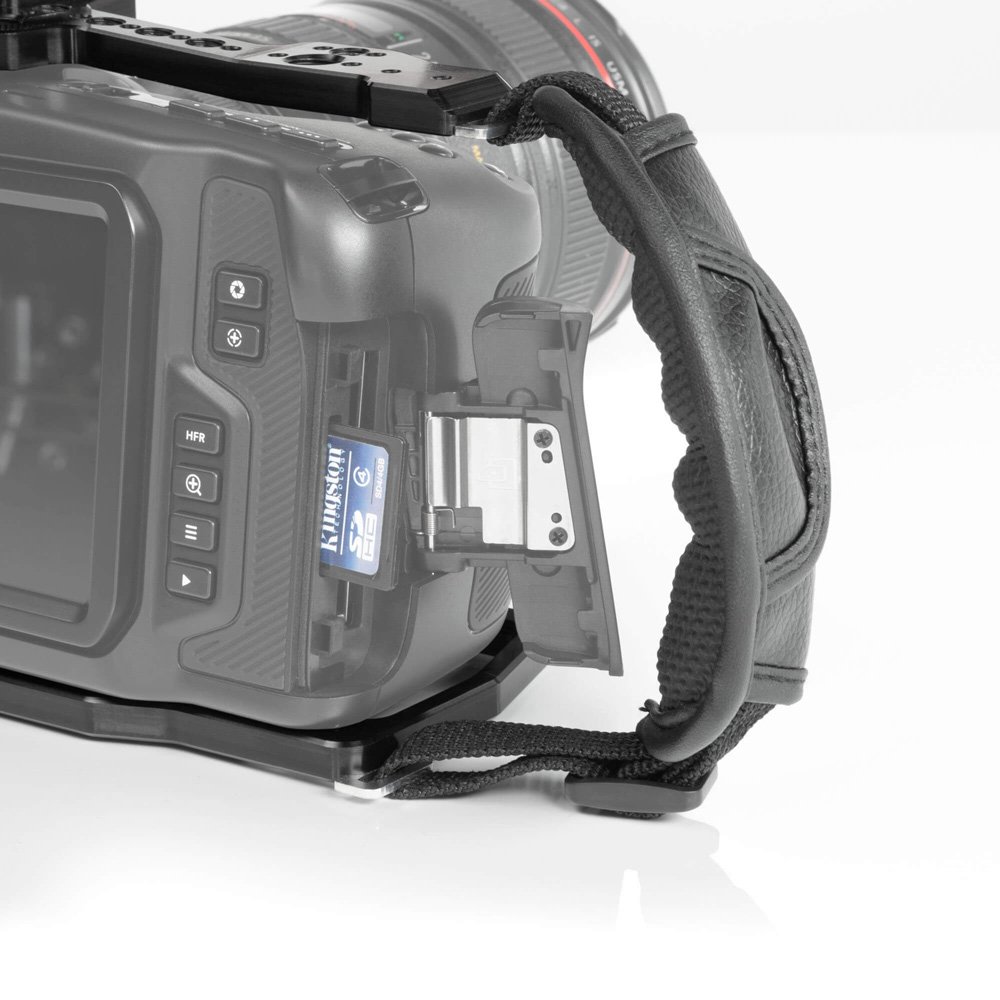

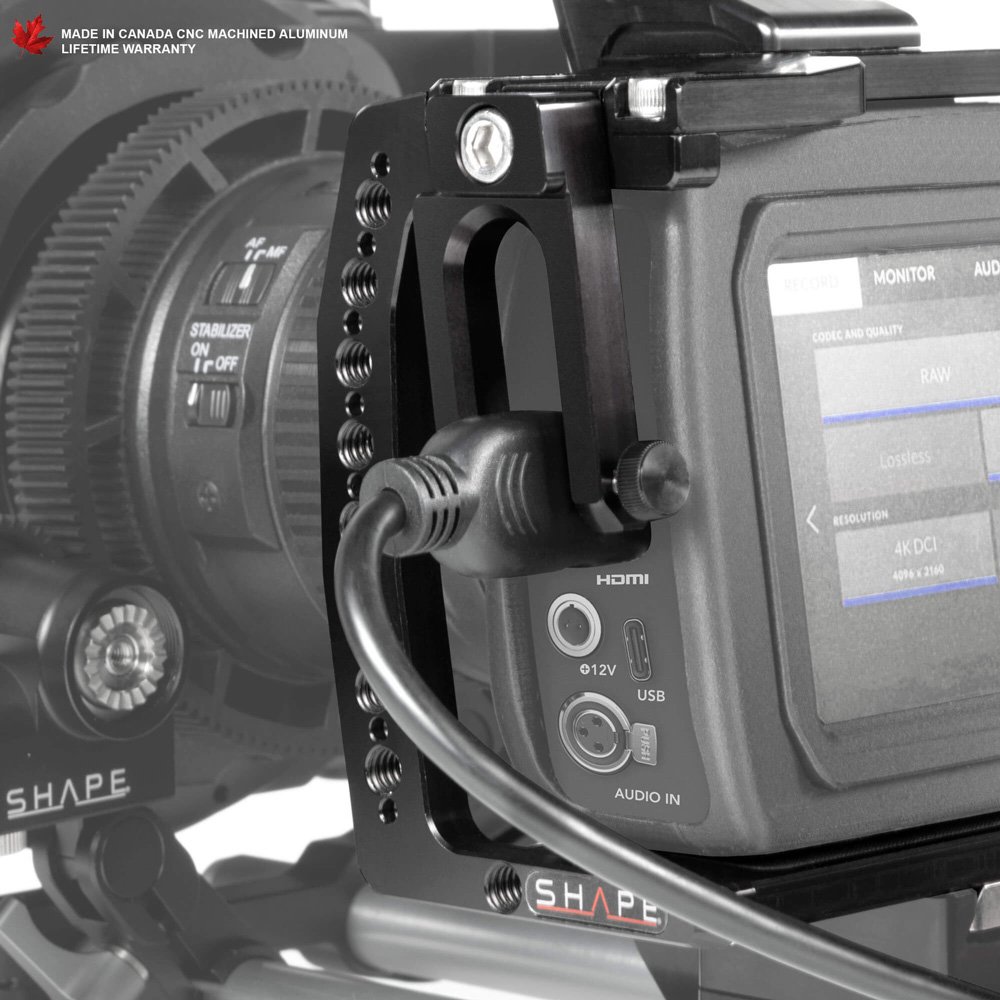

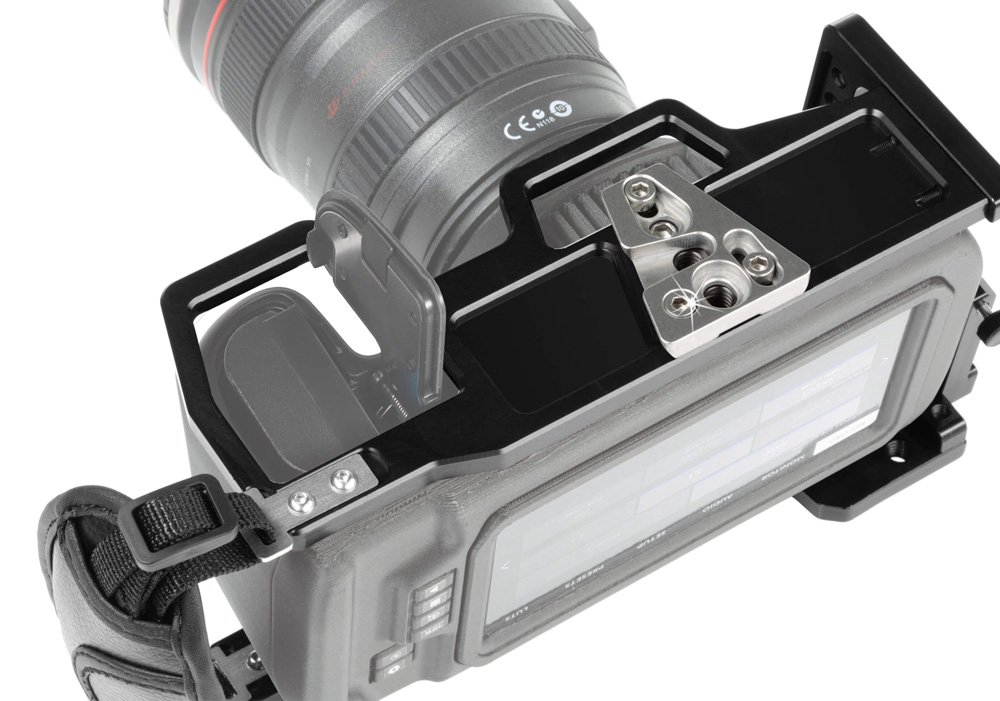

The Camera Cage for Blackmagic Cinema Camera 4K from SHAPE provides a formfitting base for attaching accessories, handles, or grips to your BMCC 4K. All controls, ports, and slots remain accessible when the cage is mounted to your Blackmagic Cinema Camera 4K. It gives you easy access to the memory card, the battery door, the lens release button and all other controls and outputs. The cage is designed with one cold shoe at the top to mount accessories like a microphone, magic arm (RPB2AHS), LED or Top Handle (DTH1). There is also multiple 1/4"-20, 3/8"-16 threaded holes with ARRI anti-twist threads to strongly secure the camera and accessories in place. Constructed from lightweight yet sturdy CNC-machined aluminum, the cage includes a left-side clamp to prevent your HDMI cable from accidentally disconnecting. A padded hand strap adds comfort when grasping the right side of the camera.
Formfitting, lightweight and robust CNC aluminum cageEasy to assemble and disassembleMaintains access to all camera controls, ports, and slots(1) cold shoe mount on topMultiple 1/4"-20, 3/8"-16 holes with ARRI anti-twist mounting threads1/4"-20 tripod threads on BaseHDMI cable clamp prevents accidental cable disconnectionPadded hand strap to grasp and feel the camera on right side
Removable top handle
The SHAPE removable top handle is made of CNC Machined Aluminum and genuine Canadian maple wood to give you a solid and comfortable grip on your camera. It features our patented Push-Button technology for fast adjustment. It's easy to strongly attach the top handle to the camera cage with the cold shoe attachment system. The top handle features the following mounting options to strongly attach more camera accessories: (1) EVF mount, (15) ΒΌ-20 threaded holes with stoppers and (2) cold shoe brackets at the front and back of the handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle or top handle in the best position for your use. Push, adjust, release, and then its lock.
Quick release baseplate, adjustable rod bloc system
The quick release baseplate can be used as a table stand or can be attached to a tripod. The bottom of the base block designed with a removable Metabones Support Bracket perfect to support heavier lens. The rod bloc travel height is adjustable with an Allan Key to allow an optimal adjustment of your matte box, Follow Focus and optical center. A rod clamps allowing you to use available rod mounted accessories.
15 mm 18 in rods (15TUBE18)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
15-mm diameter18-in lengthHollow, non-threadedTapered ends for easy connection to a rod blockAluminum coated with a clear finish
Quick handle rod bloc (HAND5)
The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.
SHAPE Composite mini shoulder pad (SHPAD3)

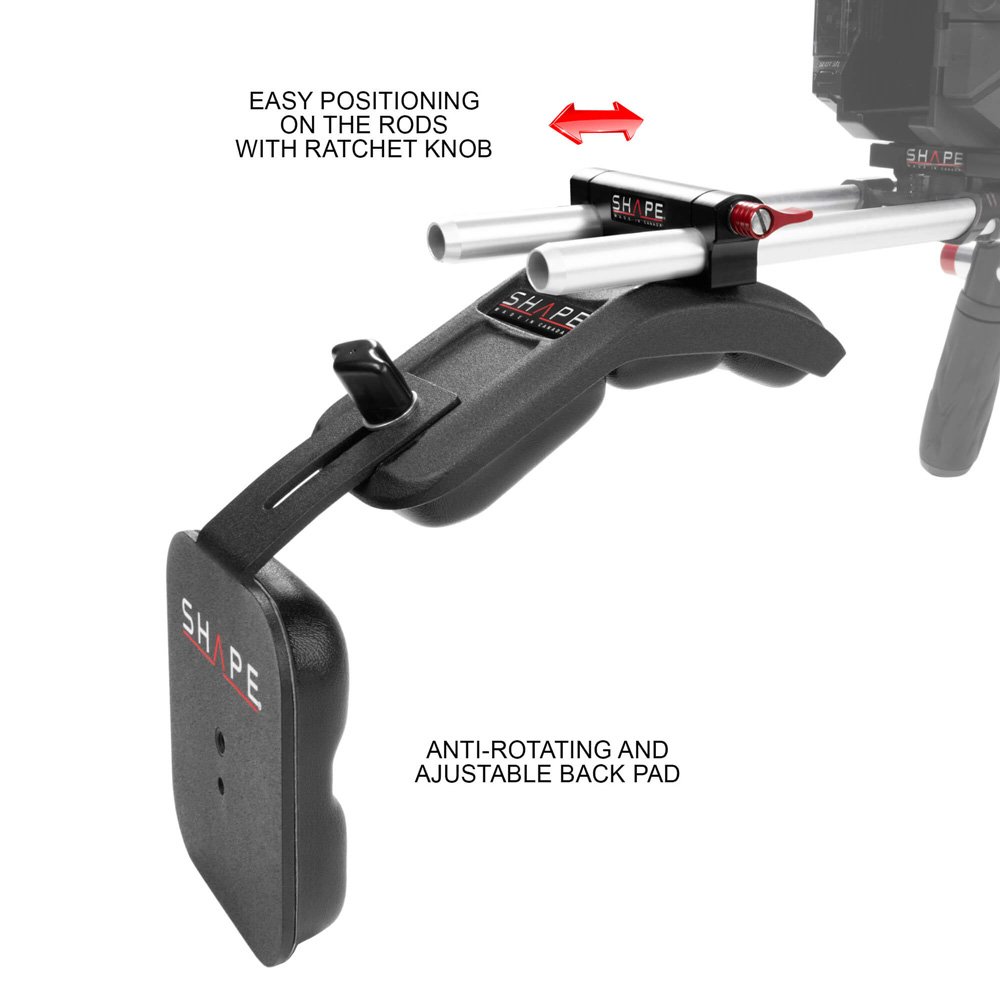

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.
Back pad (PAD1)
The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad's position can be adjusted to the user's preference - up to 2? vertically and 360 horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.
Features
Not compatible with the Blackmagic Pocket 6K Pro.Formfitting, lightweight and robust CNC aluminum cageBMPCC6K not compatible with the Metabones bracket of the cageEasy to assemble and disassembleAccess to all camera controls, ports, and slotsCold shoe mount and multiple 1/4?-20, 3/8?-16 holesPadded hand strap to grasp and feel the camera on right sideQuick release baseplate with 15 mm rods 18?Quick release handgrips with Push-button and 15 mm rod blocRemovable top handle with Push-buttonRemovable shoulder pad and back pad, padded for superior comfort
Specifications
What's in the box
(1) CAGE FOR BLACKMAGIC POCKET CINEMA CAMERA 4K (CBM4K)
(1) TOP HANDLE WITH PUSH-BUTTON
(1) 15 MM LW QUICK RELEASE ROD BASE SYSTEM
(2) 15 MM RODS 18?
(1) PAIR OF QUICK HANDLE WITH PUSH-BUTTON (HAND5)
(1) SHOULDER MOUNT (SHPAD3)
(1) BACK PAD (PAD1)
Weight:
6.70 lbs 03.04 kg
Dimensions:
17.56 x 11.73 x 23.60 in
44.60 x 29.79 x 59.94 cm
