Shadow Hills Industries Equinox
MPN #The Equinox

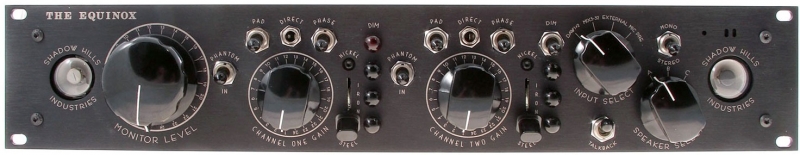

2U rack console with dual high-end mic preamps, 30-channel passive analog summing, and mastering-grade monitor control, switchable output transformers for varied tonal options
The Shadow Hills Industries Equinox is an all-in-one powerhouse for professional recording studios, combining a high-quality microphone preamp, a versatile summing mixer, and a comprehensive monitor controller"all within a compact 2U rack space. This unit is designed to serve as a complete small-format recording console, making it an ideal solution for studios looking to enhance their analog sound without compromising on space. With its vintage-inspired design and modern capabilities, the Equinox delivers both aesthetic appeal and cutting-edge performance.
At its core, the Equinox features two Golden Age microphone preamplifiers, known for their rich tonal characteristics and flexibility. These preamps offer 60 dB of gain, with gold-plated stepped attenuators, phantom power, and switchable output transformers"providing a choice between Steel, Nickel, and Iron transformers for a range of sonic textures from tight and punchy to warm and smooth. The 30-channel summing section is designed to provide analog warmth and depth to your digital mixes, utilizing premium components for passive summing. The master section of the Equinox includes a comprehensive monitoring setup with multiple input sources, speaker outputs, and control options, ensuring precise and reliable monitoring throughout the recording and mixing process. This exceptional blend of form, function, and high-end sound makes the Shadow Hills Equinox a centerpiece for any professional audio setup.
Features
2U rack space recording consoleTwo Golden Age mic preamps30-channel analog summing mixerMastering-quality monitor controlSwitchable output transformers (Steel, Nickel, Iron)Supports up to 3 sets of studio monitorsBuilt-in Talkback Mic and Cue outputRequires separate 2U power supply (Not Included)
Specifications
Gerenal
Type: Microphone preamp, summing mixer, monitor controllerFormat: Small-format recording consoleRack Spaces: 2UChassis: 19-inch rack-mount
Channels
2-channel microphone preamp30-channel analog summing mixer
Microphone Preamps
Gain: 60 dBAttenuators: 24-position, gold-plated steppedPhantom Power: 48VPad: -20 dBPhase Reverse: YesDirect Input: 1/4" DI input
Output Transformer Matrix
Steel: Punchy, tight, most color, biggest low endNickel: Clear, smooth transients, subtleIron: Warm, round, detailed mid-range
Summing Network
Summing: 30 channels, passiveBuss Bars: CopperResistors: Esoteric resistorsChannel Distribution: DAW inputs 3-24 (stereo), DAW inputs 25-32 (mono)Signal Path: Through Golden Age amplifiers, selectable output transformers
Monitor Section
Input Sources: 4 selectable (DAW 1-2, MIX 3-32, EXTERNAL, MIC PRE)Speaker Outputs: 3 pairs (switchable)Monitor Level: 24-step controlFeatures: Monitor Level DIM switch, Talkback Mic, Cue output, Stereo/Mono switchCue Output: Independent of Monitor Level, switches to Talkback signal when engaged

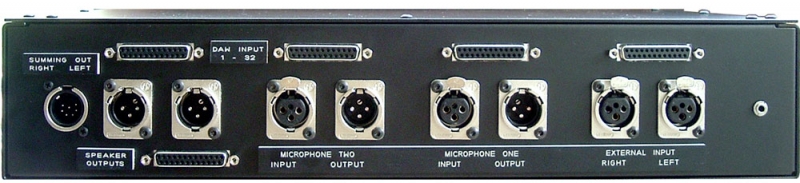

Connectors
Inputs: Analog DB25, Analog XLROutputs: Analog DB25, Analog XLRBalanced XLR Inserts: On 2-buss for external processing
Power Supply
Requires external Shadow Hills Power Supply (Not Included)
Construction
Sturdy steel case, black Bakelite-style knobs
Additional Features
"Magic-eye" VU metersEsoteric Holco metal film resistors in summing bussTalkback mic with dim featurePhantom power, polarity, and pad switches on mic preamps
Operation
Allows for the selection between different console textures for summing and preamp outputsMonitor section allows toggling between DAW and Equinox-summed mixes
Write a review about the Shadow Hills Industries Equinox
![]()
5.0
don benedictson
Roseisle, MB Canada
January 18, 2016
Shadow Hills Equinox ROCKS!!
As soon as you pick up the box it is delivered in, you know that this is a serious piece of equipment. Incredibly well built, designed and thought out for the multiple purposes it is intended for. The fact that you have three different console characteristics to choose from when either tracking or mixing is a tremendous advantage if you are working in different genres of music.
Read more Highly recommended!!
Thanks Francois and the crew from Studio Economik! You are an absolute pleasure to do business with!!
