SHADOW HILLS INDUSTRIES  |  SKU: 5988

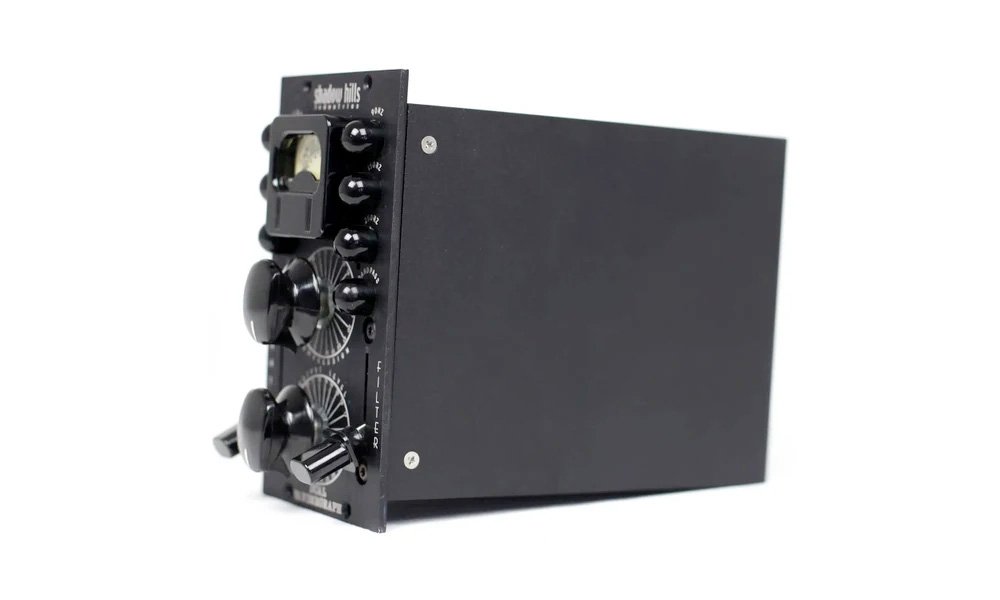

Dual Vandergraph

Stereo Bus Compressors

500 Series Stereo compressor with dual mono and linked stereo modes, discrete Class A signal path, stepped controls, variable sidechain filtering, switchable output transformers

$3,795.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Shadow Hills Dual Vandergraph is a high-end, 500 series stereo compressor designed for professionals in the audio engineering and music production fields. Renowned for its rich, vintage-style compression, the Dual Vandergraph brings the essence of Shadow Hills' flagship mastering compressor to a more compact, rack-mounted unit. This compressor is designed to provide precise control over dynamics while adding a unique tonal character to your mixes, making it ideal for both tracking and mastering applications.

One of the standout features of the Dual Vandergraph is its dual-channel design, allowing for stereo linking or dual mono operation. This flexibility ensures that it can be seamlessly integrated into a variety of studio setups. The unit features two compression modes " Discrete and Optograph " each offering a distinct sound signature, from clean and transparent to warm and colored. With its intuitive interface, complete with large, easy-to-read VU meters and solid, tactile controls, the Dual Vandergraph not only excels in performance but also enhances the overall user experience. This piece of gear is perfect for those seeking to add a touch of analog warmth and dynamic control to their audio projects.

Features

Input impedance >10k

Minimum load impedance 600 ohms

Stereo

Fully Class-A

Discrete audio path

Discrete gain cells from Mastering Compressor

Sidechain Filter Matrix from Optograph

Swiss made discrete attenuators

Military Spec build quality

Meets the specifications of the VPR Alliance

Specifications

General Features

Type: Dual-channel, discrete stereo VCA compressor

Format: 500 series module (double-width)

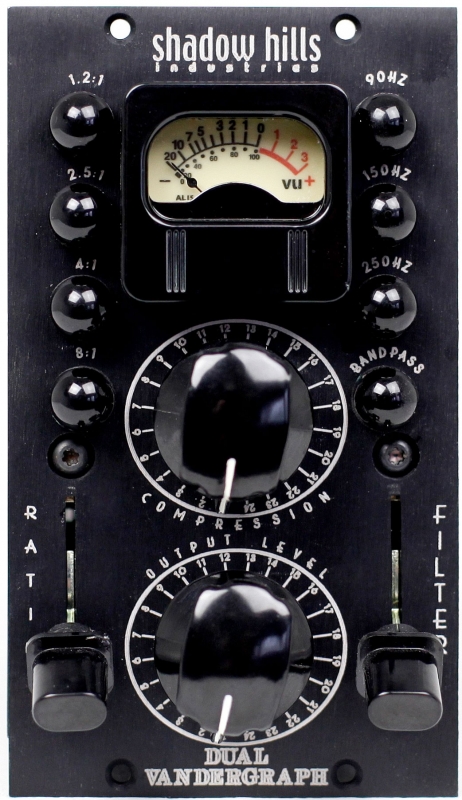

Controls

Compression Ratio: Off, 1.2:1, 2.5:1, 4:1, 8:1

Compression Threshold: Rotary switch (scaled 1-24)

Output Level: Rotary switch (scaled 1-24)

Side-chain Filter: Off, 90Hz, 150Hz, 250Hz high-pass, Band-pass

Audio Specifications

Frequency Response: 20 Hz to 20 kHz

THD: Less than 0.5%

Noise: Greater than -80 dBu

Dynamic Range: Greater than 110 dB

Input and Output

Input Impedance: >10k Ohms

Output Impedance: 600 Ohms

Max Output Level: +24 dBu

Power Requirements

Power Supply: Requires 500 Series chassis with power supply

Power Consumption: 240mA per module

Physical Dimensions

Height: 5.25 inches (3U rack height for 500 series)

Width: 2 slots in 500 series rack

Weight: Approximately 1.5 lbs per module

Additional Features:

Metering: VU meters for gain reduction and output level

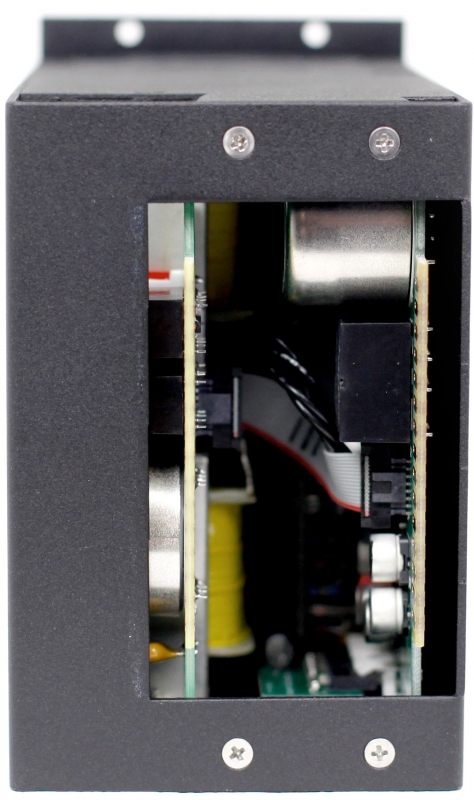

Build: Handcrafted with discrete Class-A circuitry

Construction: Black anodized aluminum front panel, rotary switches for parameter control
