Sequential Trigon-6 Desktop
UPC/EAN #855346000531
MPN #SEQ-3810
Six-voice polyphonic analog synthesizer desktop module with three oscillators per voice, and an enhanced ladder filter with a dedicated drive and feedback control
Experience the Power of Three Oscillators and a Ladder Filter with the Trigon-6 Module

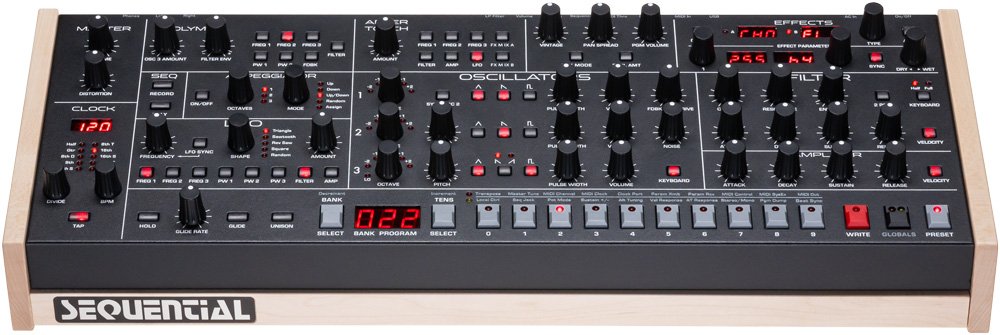

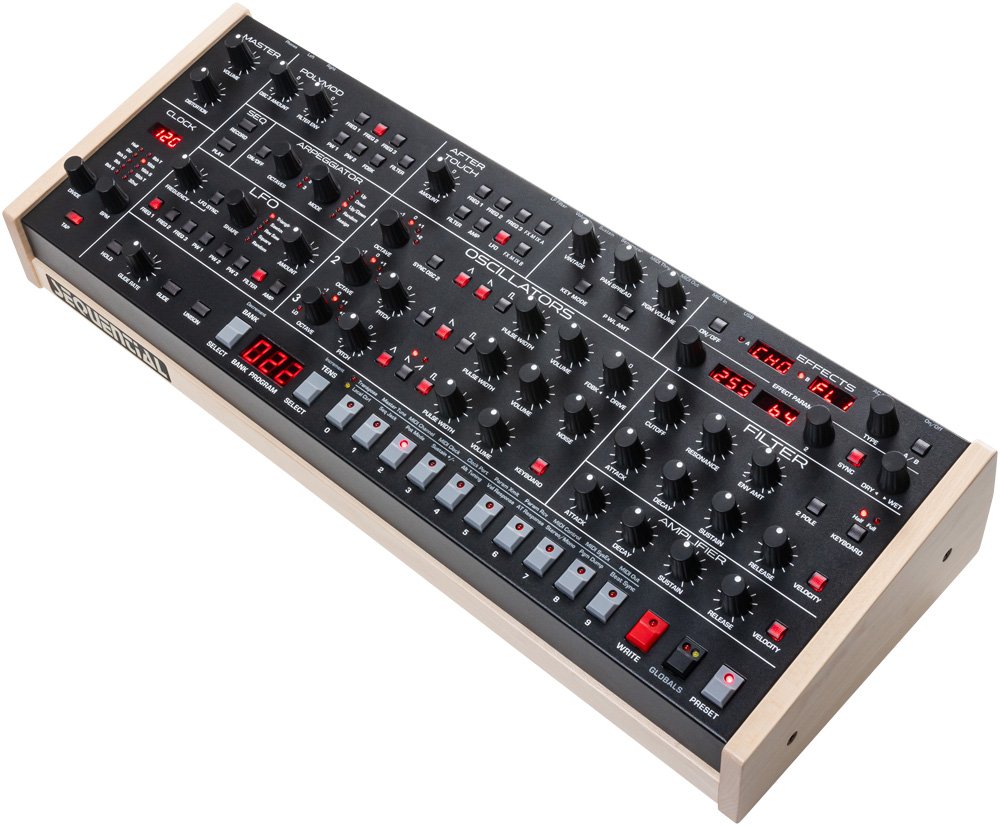

The Sequential Trigon-6 desktop module delivers the same massive sound and hands-on timbre shaping control as the Trigon-6 Keyboard. It features the same pure analog signal path with discrete oscillators and filters, and the same high-quality digital effects. It also has the same intuitive layout with full-sized knobs and switches that make it quick and easy to create new sounds.
The Trigon-6 module sounds huge - just like the keyboard, because it is the same six voice polyphonic instrument, just in a smaller form factor. And if you want even more polyphony, you can use the poly chain feature to link any two Trigon-6s for a stunning twelve-voice synth!
A Sound That is Bold and Familiar
The Trigon-6 is Sequential's polyphonic take on the classic, thick and creamy, 3-oscillator-plus-ladder-filter analog sound that defined the dawn of the synth era. It's a sound that bridges genres and styles " now refined and redefined with Sequential's own modern imprint.
All-New Filter and Oscillator Design
At the heart of the Trigon-6 sound are three newly designed voltage-controlled oscillators (with triangle, saw, and pulse waves) and an enhanced version of the ladder filter that Sequential created for its Pro 3 mono synth. The switchable 2/4 pole resonant filter design has dedicated drive and feedback controls that make it effortless to go from silky and smooth to bold and crunchy with a simple knob turn.
Rounding Out the Picture
Naturally, the Trigon-6 has the full complement of Sequential's "must-have" sound-sculpting features including super snappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. Best of all, the knob-per-function front panel of the Trigon-6 puts these controls at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides a wide range of basses, leads, and pads to jump start any project.
Dual Effects
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flanger, phaser, and ring modulator. The independent stereo distortion effect adds on-demand aggression and is 100% analog.
Adjustable Vintage Character
Finally, to give even more classic organic warmth to an already classic synth, there's the Vintage Knob, which adds voice-to-voice variations in calibration and component behavior. Vintage response is adjustable from subtle to extreme to emulate the stability of a perfect modern instrument or a time-worn relic.
Portable and Powerful
With all that Trigon-6 has to offer, it's amazing that this analog beast is packed into a desktop module light enough to carry in a backpack. And with Trigon's new MPE compatibility, this instrument is more playable and nuanced than ever before. It is the perfect choice for the project studio or the gigging musician who wants the ultimate Sequential synthesis experience.
Specifications
OSCILLATORS
Three discrete VCOs per voiceSimultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulsePulse width per oscillatorHard sync: oscillator 1 syncs to oscillator 2Keyboard tracking on/off (oscillator 3)Low frequency mode (oscillator 3)Oscillator feedback and drive controls for increased signal saturationWhite Noise source
LOW-PASS FILTER
Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voiceFilter can be driven into self-oscillation with the Resonance controlBi-polar filter envelope amountVelocity modulation of envelope amountKeyboard tracking: off, half, full
FILTER ENVELOPE
Four-stage (ADSR) envelope generatorVelocity modulation of envelope amount
AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generatorVelocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)LFO syncInitial amountMod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)
POLY MOD
Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount
VINTAGE KNOB
Recreates vintage synth characteristics by adding voice-to voice variations in component behavior
AFTERTOUCH
Source: channel (mono) aftertouch with bi-polar amountDestinations: Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, LFO amount, amplifier envelope amount, filter envelope amount, FX mix A, FX mix B
CLOCK
Master clock with tap tempoBPM control and displayMIDI clock sync
ARPEGGIATOR
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter noteOne, two, or three octave rangeUp, down, up/down, random, and assign modes
SEQUENCER
Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
Stereo analog distortionDual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulatorDelay syncTrue bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
Hold switch latches held notes onPolyphonic portamentoUnison (monophonic) mode with configurable voice count, from one to all six voices, and key modes to control voice triggering priorityPreset switch: when on, the front panel is live " what you see is what you hear
PATCH MEMORY
500 user and 500 factory programs in 10 banks of 100 programs eachDirect program access, including single-button access to the current set of 10 programs
IN/OUT

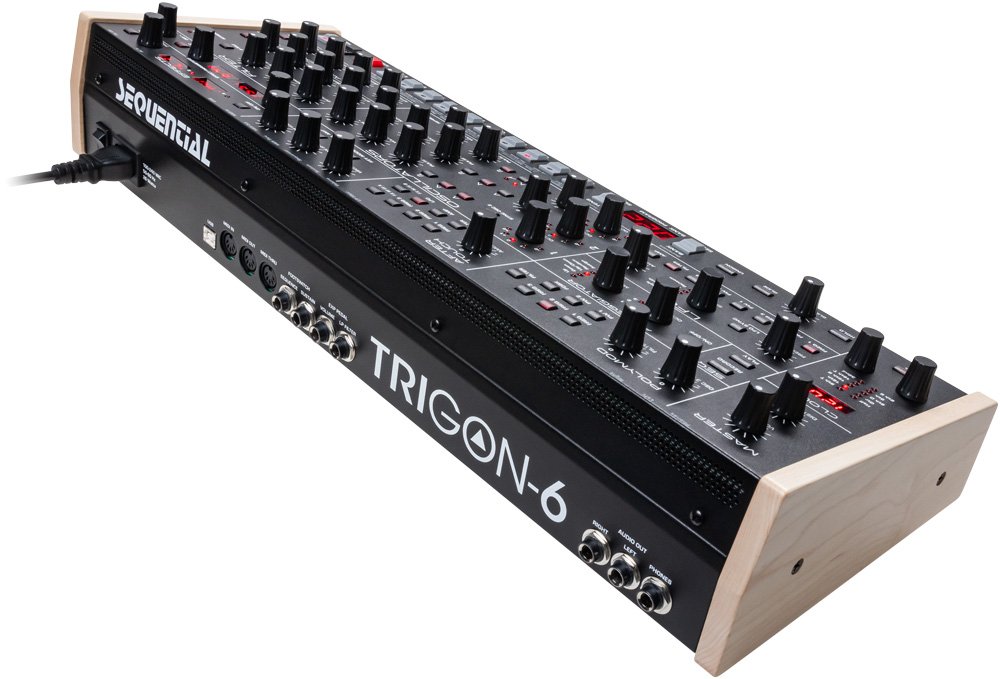

Left/mono and right audio outputs (2 x 1/4" phone jack)Headphone output (stereo, 1/4" phone jack)MIDI in, out, and thru portsUSB for bidirectional MIDI communicationFilter cutoff expression pedal inputVolume expression pedal inputSustain footswitch inputSequencer start/stop footswitch input
POWER
IEC AC power inlet for internal power supplyOperates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS

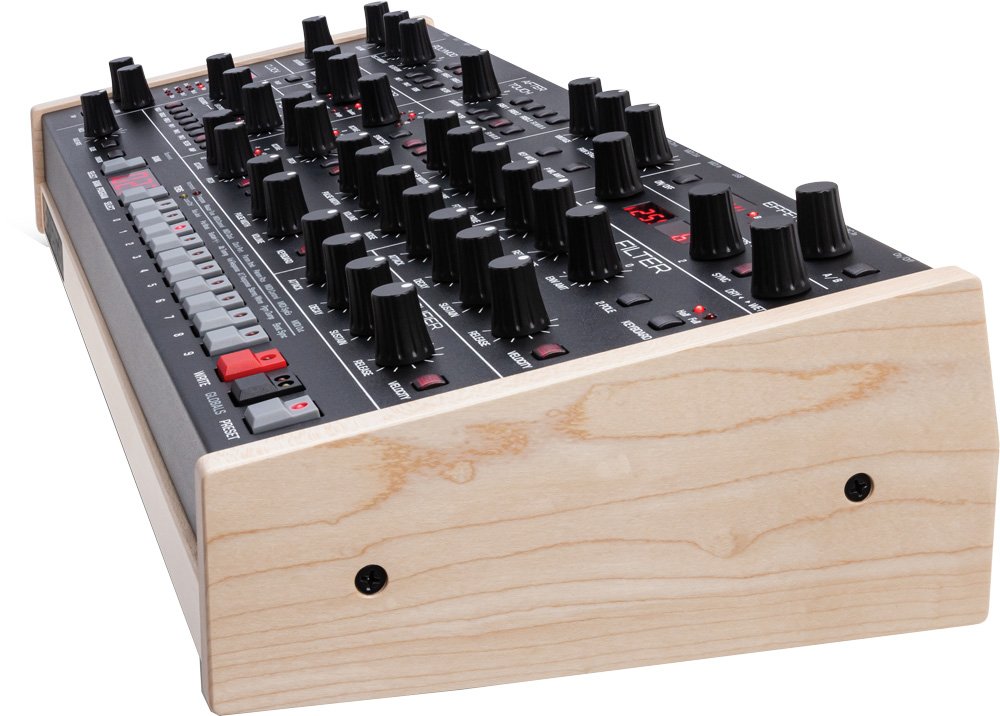

Maple end panelsWeighs approximately 10.9 lbs. (4.95 kg)Measures 22.00" L x 8.45" W x 4.54" H (55.88 cm x 21.46 cm x 11.53 cm).
