SENNHEISER  |  SKU: 14527

XSW 2-865

Wireless Systems

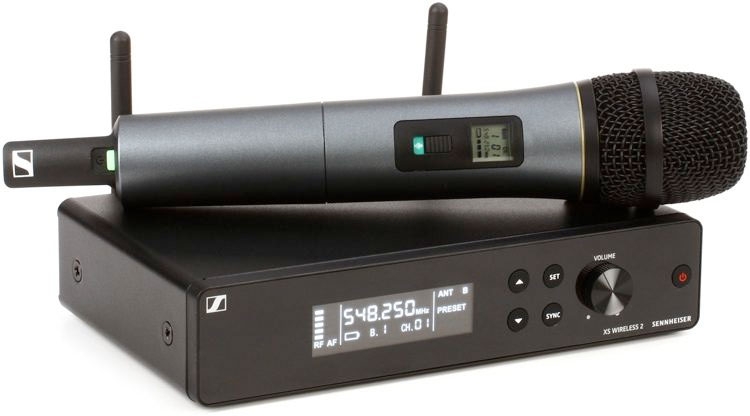

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned e865 evolution microphone capsule.

$679.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser's renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

Features

Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

True diversity receiver with metal housing

External antennas

Automatic frequency management and synchronization via

remote channel for easy setup

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

Up to 12 compatible channels

Specifications

What's in the box

1 receiver EM-XSW 2

1 handheld transmitter SKM 865-XSW

1 microphone clamp MZQ 1

1 power supply NT 12-5 CW

2 AA batteries

1 rackmount kit

1 pouch

User Manual


Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 680g
Power supply: 12 V DC nom. / 300 mA
Housing: metal, microphone: robust ABS
AF frequency response: 50 to 16,000 Hz (-3 dB)

Microphone

Dimensions approx. 260 x 50 mm

Weight approx. 245g

Operating time approx. 10 hrs

Power supply 2 AA size batteries, 1.5 V

AF frequency response 80-16,000 Hz


Microphone: condenser
Frequency response: 50 to 16,000 Hz (-3 dB)
THD, total harmonic distortion: 0.9%
Pick-up pattern: super-cardioid
Signal-to-noise ratio : 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation wideband: FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Frequency 8 frequency banks, each with up to 12 factory-preset channels

Frequency range A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity: < 3 V at 52 dB(A)rms S/N
Squelch: switchable from 3 dBV to 28 dBV (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.8 mV / Pa
Adjustment Range Transmitter: 0-3010
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0C to +40C, storage: -20C to +70C
Receiver Principle: double superheterodyne
Diversity principle: True Diversity
