UPC/EAN #615104315549     MPN #508270

$899.00

Save 14.3%, MSRP $1049.00
Financing available
Free shipping in Canada. Conditions

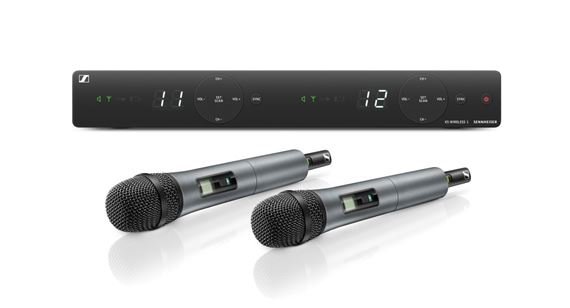

The Sennheiser XSW 1-835 Dual is a solid, reliable wireless transmission with up to 10 compatible channels in a stable UHF band



This vocal set is an easy-to-use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser's renowned evolution microphone capsule, the e835 (superior dynamic, cardioid). The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as vocal microphones and microphone clamps.
  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • Antenna-switching 2-channel diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
  • Dimensions: approx. 200 x 42 x 127 mm
    THD, total harmonic distortion: 0.9%
    Pick-up pattern: cardioid
    Signal-to-noise ratio: 103 dBA
    RF output power: 10 mW
    Switching bandwidth: up to 24 MHz
    Operating time: approx. 10 hrs
    Modulation: wideband FM
    Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    Housing: rugged ABS housing
    Dynamic range: dynamic
    Frequency: 8 frequency banks, each with up to 10 factory-preset channels
    Frequency range: A: 548-572 MHz
    Sensitivity: < 3 V at 52 dB(A)rms S/N
    Squelch: djustable from 3 dBV to 28 dBV (combined with pilot tone)
    Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
    Input sensitivity: 1.5 mV / Pa
    Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
    Audio adjustment range: 45 dB, adjustable in 5-dB steps
    Line / Mic level: 20 dB, switchable
    Temperature Range: operation: 0°C to +40°C, storage: -20°C to +70°C
    Receiver Principle: double superheterodyne
    Diversity principle: Antenna switching diversity via internal antennas

    What's in the Box

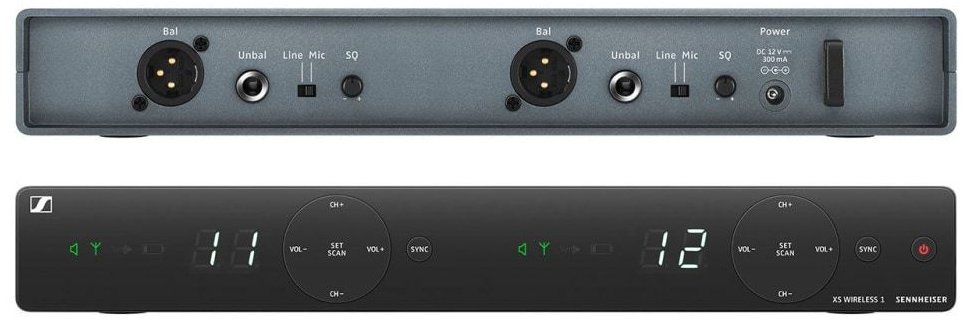

  • 1 stationary receiver EM-XSW 1 Dual
  • 2 handheld transmitter SKM 835-XSW
  • 2 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
  • View more products from Sennheiser
