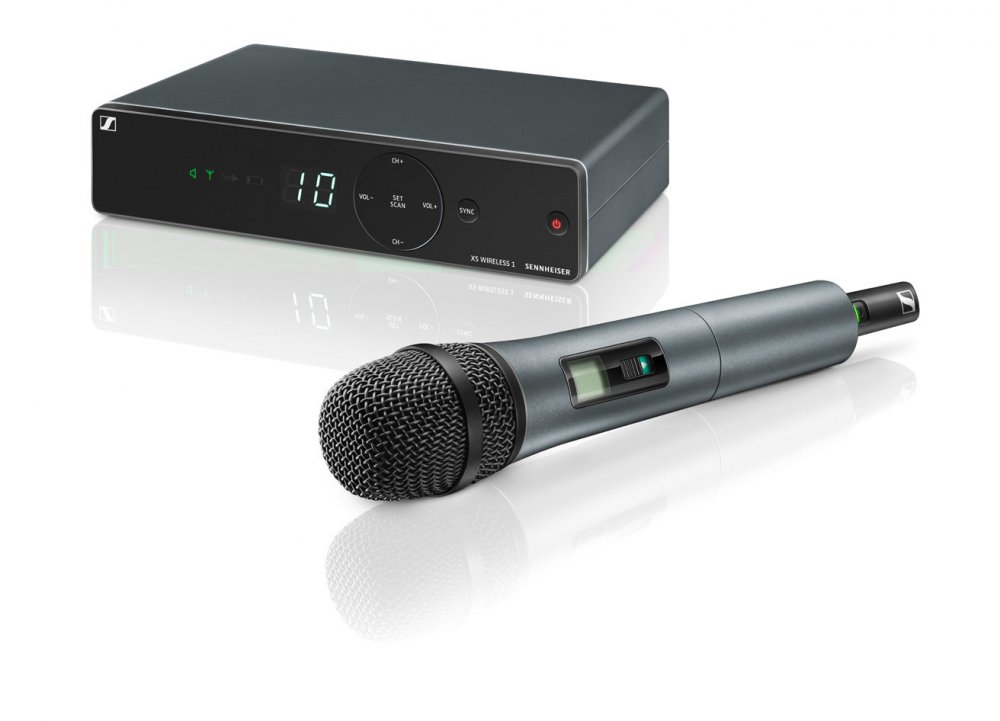

XSW 1-835

Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

True diversity receiver with metal housing

External antennas

Automatic frequency management and synchronization via

remote channel for easy setup

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

Up to 10 compatible channels

Dimensions: approx. 200 x 42 x 127 mm
THD, total harmonic distortion: 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM

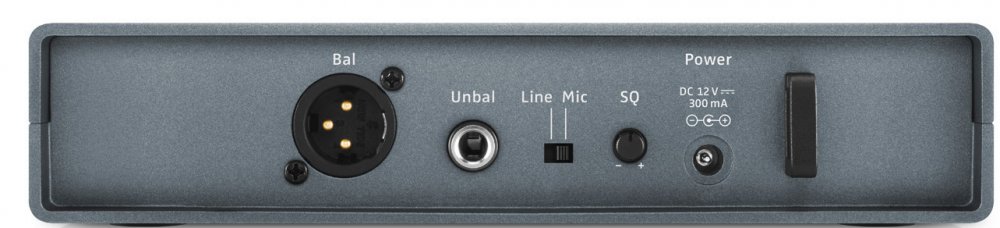

Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range:
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz

Sensitivity: < 3 V at 52 dB(A)rms S/N
Squelch: djustable from 3 dBV to 28 dBV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0C to +40C, storage: -20C to +70C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

What's in the Box

1 receiver EM-XSW 1

1 handheld transmitter SKM 825-XSW or SKM 835-XSW

1 microphone clamp MZQ 1

1 power supply NT 12-5 CW

2 AA batteries
