UPC/EAN #615104369047     MPN #509792

$579.00

Save 14.7%, MSRP $679.00
Financing available
Free shipping in Canada. Conditions

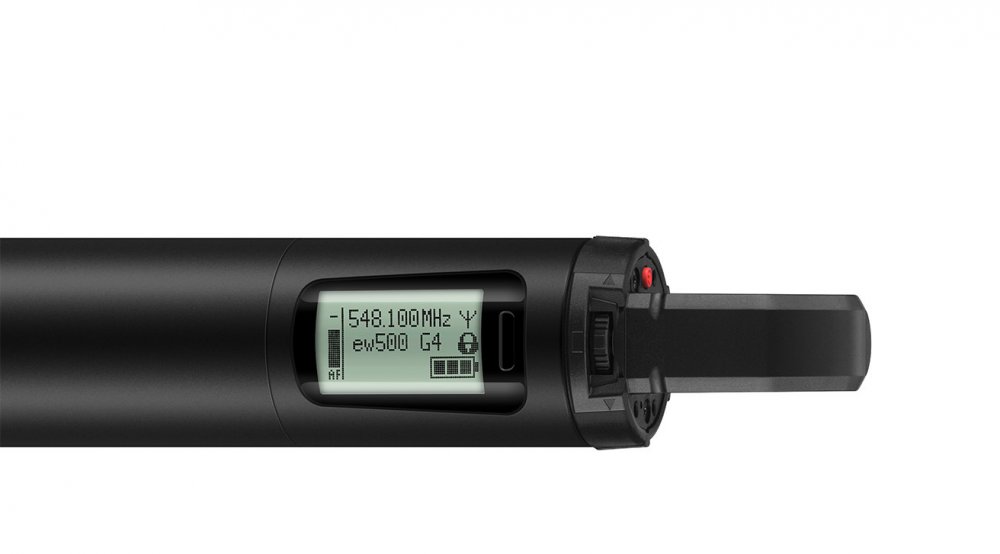

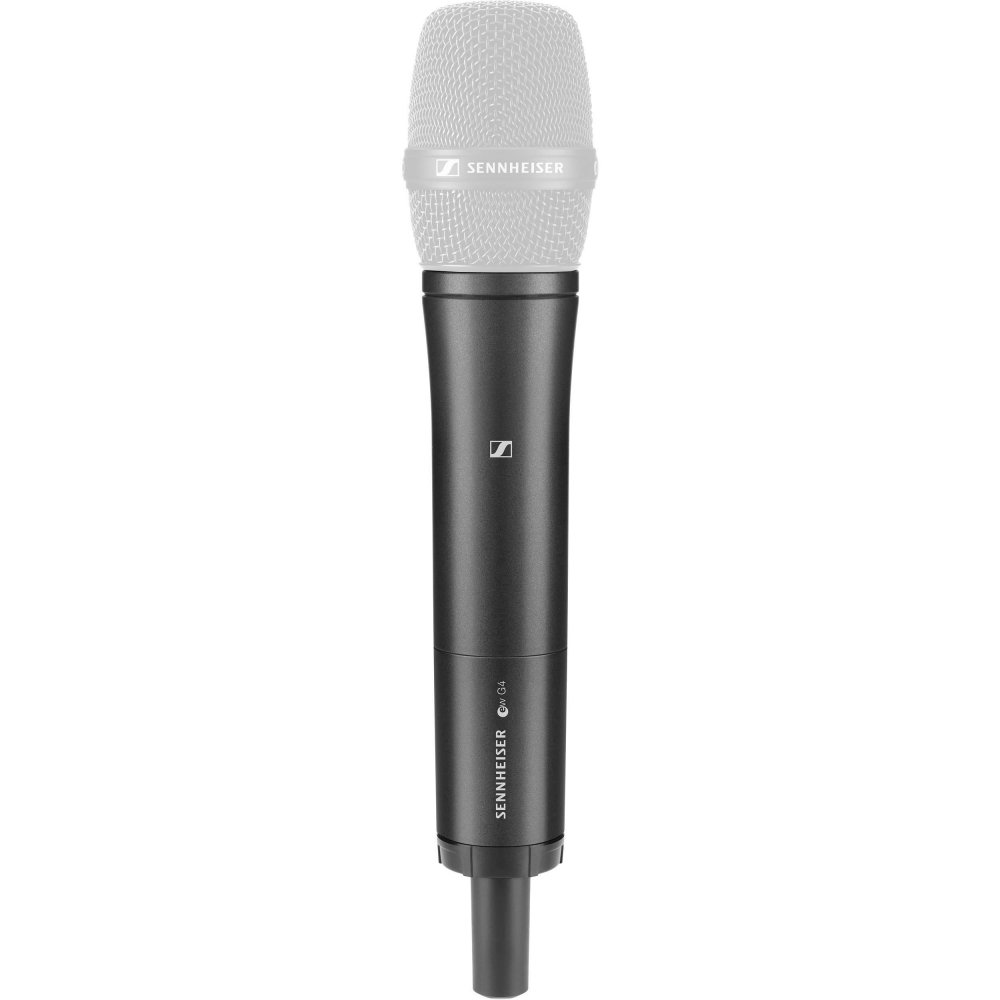

Wireless handheld transmitter with no mic capsule for EW 500 G4 series



Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world?s biggest live stages. For evolution wireless G4 500 Series systems.
  • Your choice of Sennheiser?s renowned state-of-the-art e 935, e 945, e 965 capsules
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Frequency range
    Gw1: 558 - 608 MHz

    Dimensions
    Approx. Ø 50 x 265 mm

    Compander
    Sennheiser HDX

    THD, total harmonic distortion
    ? 0.9 %

    Weight
    (incl. batteries) approx. 450 g

    Signal-to-noise ratio
    ? 115 dBA

    RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

    Switching bandwidth
    up to 88 MHz

    Peak deviation
    ±48 kHz

    Nominal deviation
    ±24 kHz

    Operating time
    Typically 8 h

    Modulation
    Wideband FM

    Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ? 25 ?A

    Powering
    3 V battery / 2.4 V rechargeable battery

    Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

    AF frequency response
    80 " 18,000 Hz

    Temperature Range
    -10 °C to +55 °C

    Frequency stability
    ? ±15 ppm
