Easy receiver-transmitter synchronization at the push of a button. All-metal housing.

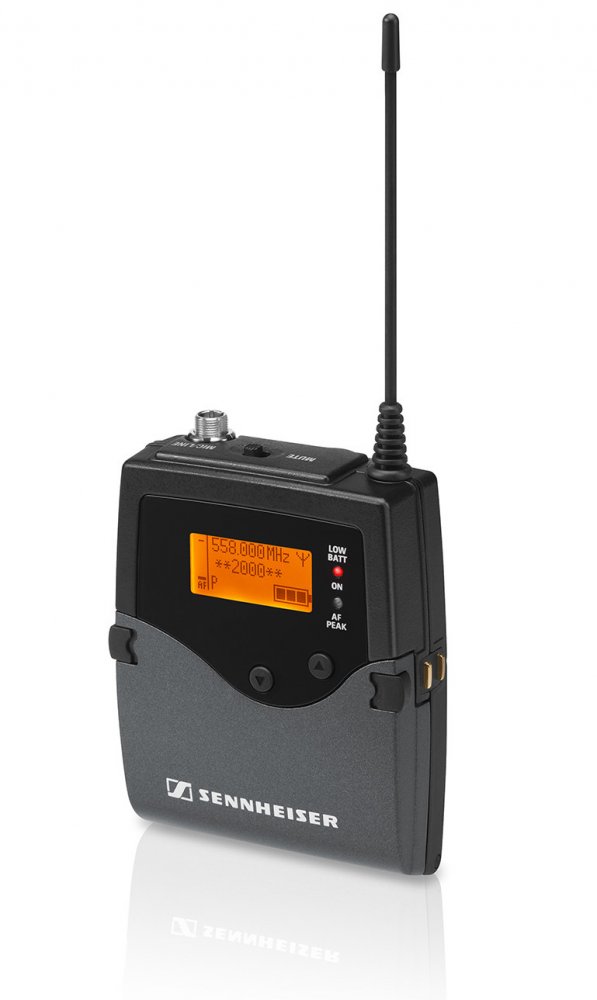

This lightweight yet extremely rugged bodypack transmitter is a delight for both the musician and the audience. With an AF frequency response of 25 to 20,000 Hz, it transmits even the sound of a bass guitar with rich fundamentals. Three RF output powers (four in the US version) provide longer transmission ranges or more channels per frequency range. The rechargeable batteries of the SK 2000 (optional) can be charged right in the unit using the external charging contacts.

Sturdy all-metal housing

Up to 75 MHz switching bandwidth

20 fixed frequency banks with up to 64 compatible presets

6 banks each with up to 64 tunable channels

Frequency setting in 25 kHz steps

Pilot tone squelch for interference-free operation

External charging contacts for recharging battery BA 2015 in the transmitter

Backlit display on transmitter (keystroke activation)

Auto-lock feature to prevent buttons from being pressed accidently

Audio and RF MUTE feature for muting the transmitter

Wide range of accessories for virtually any use

Enhanced audio frequency response in the bass range for optimum transmission from bass guitars

Input sensitivity above 60 dB can be set in 3 dB steps

Transmitters can be configured from the receiver menu

Can be synchronized with the receiver using infrared interface

Wide range of accessories for virtually any use

Frequency range
516 ... 558 MHz
626 ... 698 MHz
718 ... 790 MHz
790 ... 865 MHz
558 ... 626 MHz
606 ... 678 MHz / UK
516 ... 558 MHz / US
558 ... 608 MHz / US
925 ... 937.5 MHz / Korea

Dimensions
82 x 64 x 24 mm

Compander
HDX

Audio-XLR connector
Sennheiser (3-pin) Socket

Presets
max. 64

Weight
160 g

Signal-to-noise ratio
> 120 dB(A) (@ 1 mV, peak deviation)

RF frequency range
516 ... 866 MHz

RF output power
10, 30, 50 mW (US: 100 mW)

Peak deviation
±48 kHz

Nominal deviation
±24 kHz

In compliance with
CE , FCC, IC

Operating time
typ. 8 h

Modulation
FM

Power supply
2 x 1,5 V (AA)

Carrier frequencies
max. 3000

Input impedance
mic.: 40 k

Input impedance
line: 1 M

Max. Input voltage
3 V (mic + line)

What's in the Box:
1 SK 2000 bodypack transmitter
2 AA 1.5 V batteries
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF power sheet
