SENNHEISER  |  SKU: 23639

MKH 8018

Shotgun Microphones

Stereo shotgun microphone with switchable MS, XY-narrow, and XY-wide modes. Low-cut filter, -10 dB pad, moisture-resistant design, extended bass response, and low self-noise.

$2,699.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

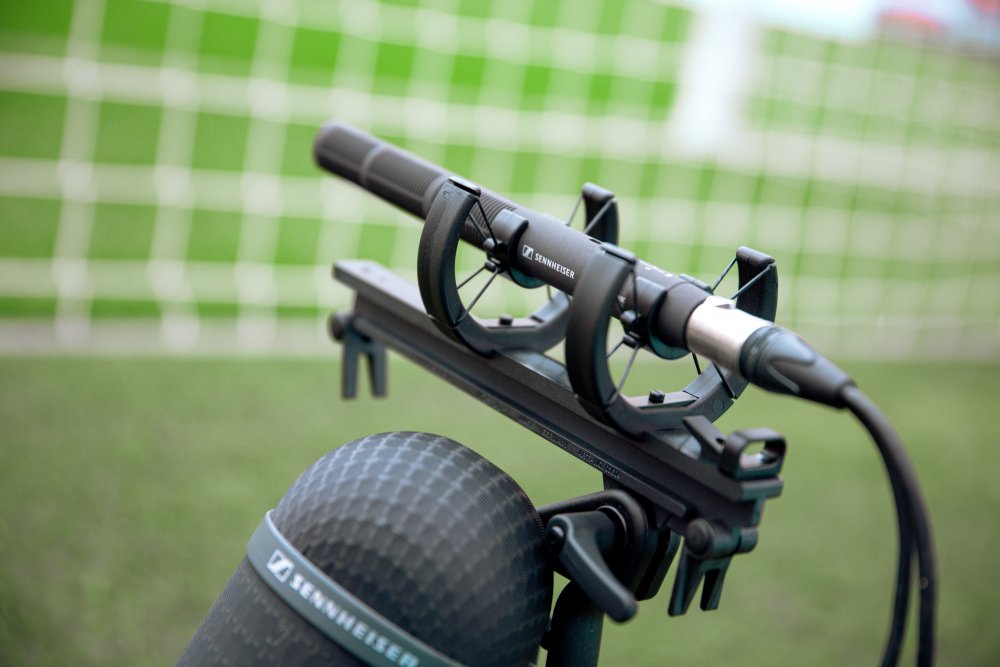

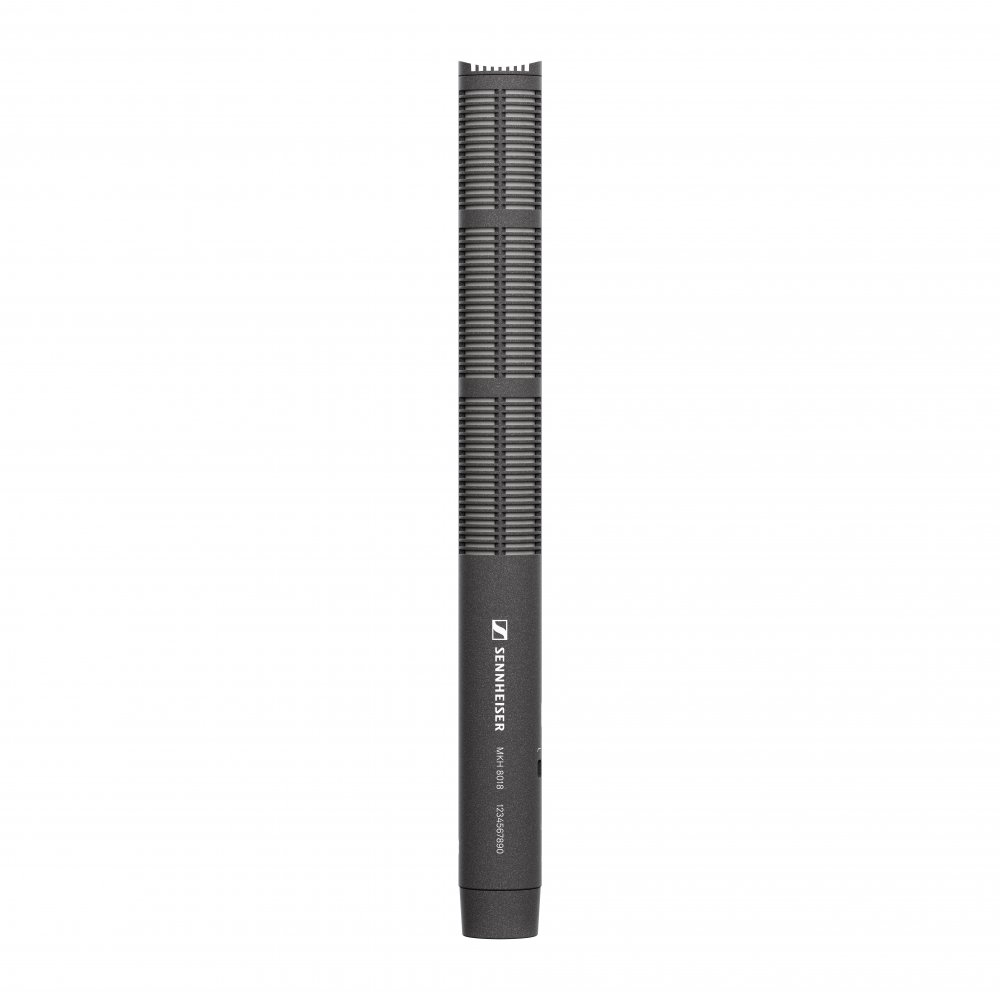

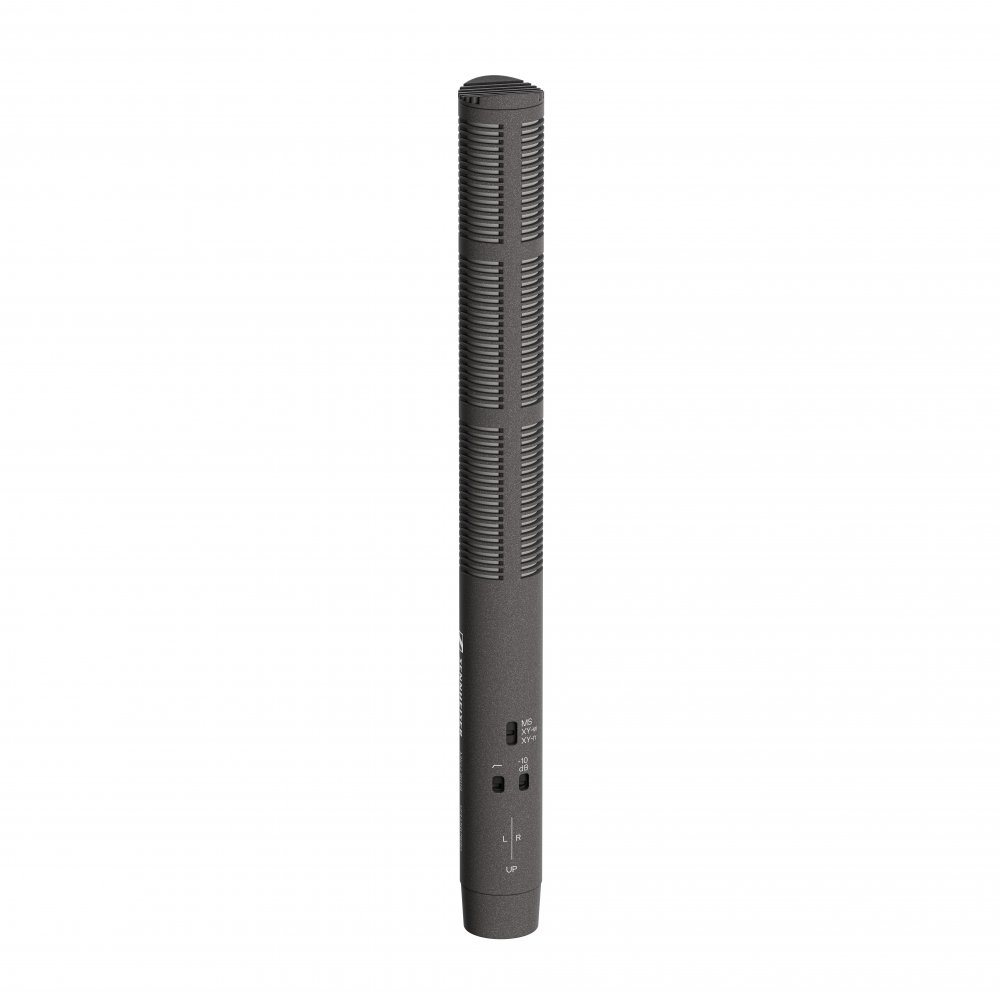

The Sennheiser MKH 8018 is a high-performance stereo shotgun microphone designed for professional audio capture in film, TV, and field recording applications. Featuring an advanced push-pull transducer design and a low-tension diaphragm, it delivers exceptional sensitivity and a wide frequency response for natural, immersive sound reproduction. Whether you're capturing dialogue, soundscapes, or environmental audio, the MKH 8018 ensures precise directional pickup and spatial realism, making it ideal for demanding recording environments.

This microphone offers three switchable stereo modes"MS, XY-narrow, and XY-wide"providing flexibility for different recording scenarios. The MS mode enables post-production adjustments to the stereo image, while the XY modes deliver a balanced left-right stereo field without external processing. Additional features include a low-cut filter to reduce handling noise, a -10 dB pad for high SPL situations, and a moisture-resistant design for reliable performance in various climates. With its compact size, balanced XLR-5M output, and non-reflective Nextel finish, the MKH 8018 is a discreet yet powerful tool for professional sound engineers and filmmakers.

Features

Three switchable stereo modes: MS, XY-Narrow, XY-Wide

Switchable low-cut filter (-3 dB at 70 Hz) to reduce wind and handling noise

-10 dB pad for protection against overdriving

Fully floating balanced output for minimal distortion

Low-tension diaphragm with push-pull transducer design for unrestricted sound flow

Extended bass response for flexible microphone positioning

Moisture-resistant design for operation in humid, hot, or cold environments

Optimal polar pattern minimizes off-axis coloration for a coherent sound image

Low self-noise for enhanced detail and dynamic range

Low nonlinear distortion for improved sonic clarity

Compact and visually unobtrusive for live shows and TV

Nextel non-reflecting paint to prevent reflections from stage lights

Non-modular design with fixed XLR 5M-Out

Specifications

General Specifications

Type: Stereo shotgun RF condenser microphone

Capsule Configuration: Stereo shotgun

Application: Film & video production, sports broadcasting, wildlife recording, environmental sounds

Audio Performance

Pick-up Pattern: Stereo shotgun

Frequency Response: 40 Hz " 20,000 Hz

Nominal Impedance at 1 kHz: 430 hms

Minimum Load Impedance: 4.7 kilo-ohms

Low-cut Filter (Switchable): -3 dB @ 70 Hz

Attenuation (Switchable): -10 dB

Maximum SPL: > 126 dB

Sensitivity (M-Channel): 56 mV/Pa | -25 dB ref (1V/Pa)

Sensitivity (S-Channel): 25 mV/Pa | -32 dB ref (1V/Pa)

Sensitivity (XY Narrow): 50 mV/Pa | -26 dB ref (1V/Pa)

Sensitivity (XY Wide): 32 mV/Pa | -30 dB ref (1V/Pa)

Equivalent Noise Level (A-weighted, M-Channel): 12 dB

Equivalent Noise Level (A-weighted, S-Channel): 14.5 dB

Equivalent Noise Level (A-weighted, XY Narrow): 12 dB

Equivalent Noise Level (A-weighted, XY Wide): 13 dB

Equivalent Noise Level (CCIR-weighted, M-Channel): 24 dB

Equivalent Noise Level (CCIR-weighted, S-Channel): 25 dB

Equivalent Noise Level (CCIR-weighted, XY Narrow): 24 dB

Equivalent Noise Level (CCIR-weighted, XY Wide): 25 dB

Power & Connectivity

Power: 48V

Current Consumption: 2 - 3.4 mA

Connector: XLR-5M

Physical & Environmental Specifications

Weight: 115 g

Diameter: ⌀ 22 mm

Length: Approx. 230 mm

Operating Temperature: -10 C to 60 C (14 F to 140 F)

Storage Temperature: -20 C to 70 C (-4 F to 158 F)

Relative Humidity: 5% to 95%, non-condensing

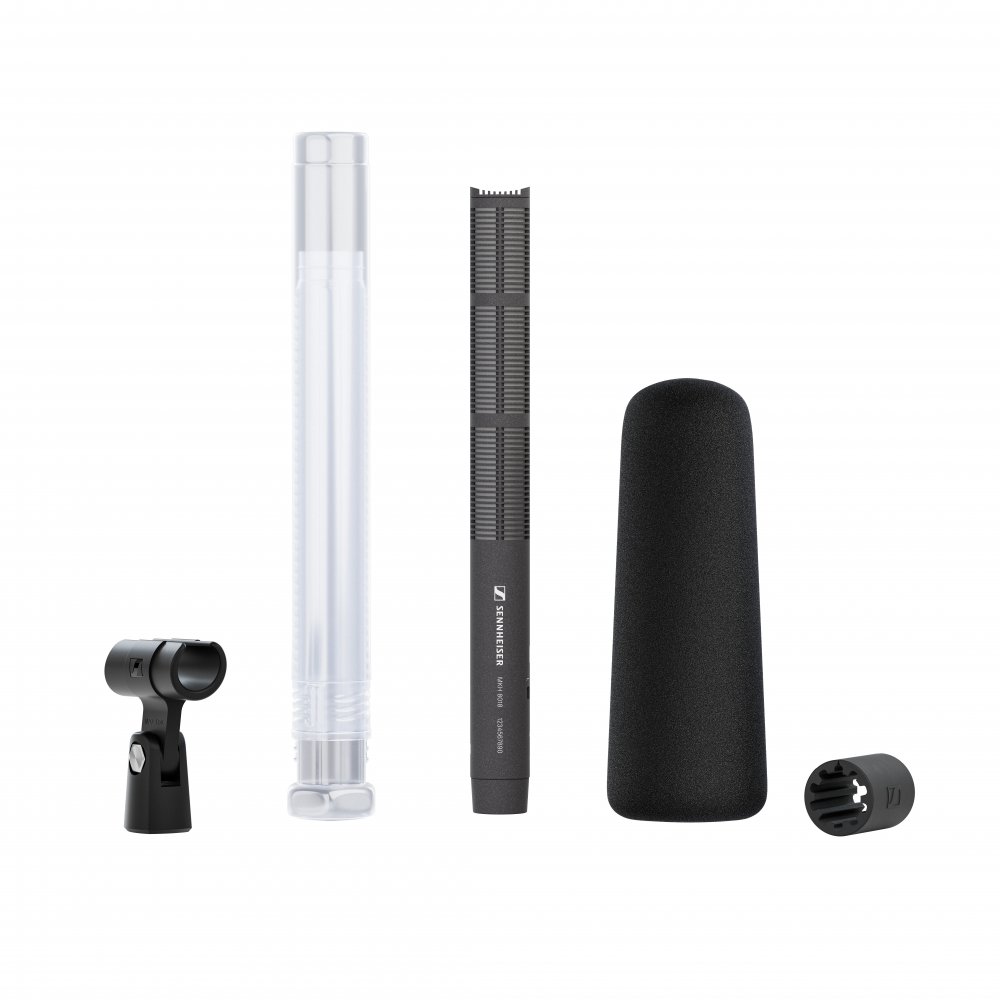

Included Accessories

Microphone Clip (MZQ 100)

Windshield (MZW 8018)

Threaded Transport Tube

Camera Adapter (MZR 8000)

Safety Instructions

Quick Guide
