Sennheiser L 6000
UPC/EAN #615104281066
MPN #507300
$1425.00
Save 16.1%, MSRP $1699.00
The Sennheiser L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station.
Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-color LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.

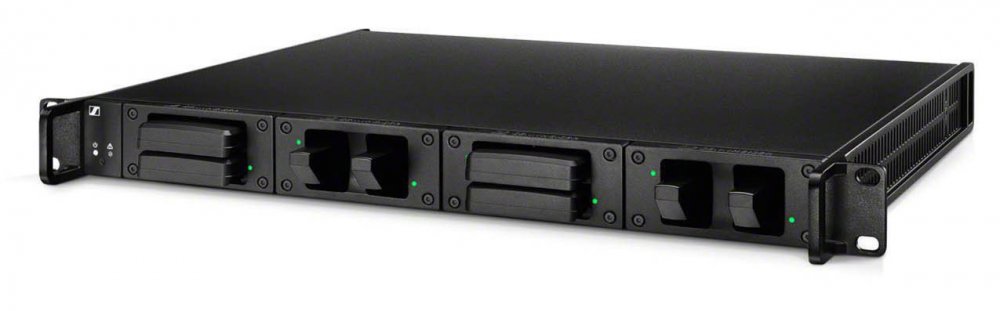

Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods.
The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted.
Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).
Features
19 inch charging station in 1 RUFlexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)Quick overview of charging status with three-color LEDsIntelligent charging control with four fans for optimum coolingStorage mode keeps battery packs in optimum charge condition for longer storage periodsIntegrates into the Wireless Systems Manager
Specifications
Dimensions:
44 x 483 x 373 mm
Weight:
5.1 kg
Charging time:
BA 60: 80 %: approx. 1:15 h, 100%: approx. 2:30h
BA 61: 80 %: approx. 1:45 h, 100%: approx. 3:15 h
BA 62: 80% approx. 1:15 h, 100% approx. 2:45 h
Power consumption:
Max. 85 W
Min. 1 W
Power supply:
100 - 240 V AC, 50/60 Hz
Capacity:
Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
Operating relative humidity:
Max. 90 % at 40 C
Charging Current:
2 A
Display:
Multi-colored
Network protocol:
IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Temperature Range:
Charging: 0 - 50 C
Ambient: -10 - 50 C
Charging voltage:
4.2 V
Power plug:
3-pin, protection class I as per IEC/EN 60320-1
Average discharge current:
0.15 A
Water Protection Code:
The product must not be exposed to dripping and splashing (IP2X)
What's in the Box
1 L 6000
1 Mains Cable (EU, UK or US plug)
4 Dummy Cover incl. Screws
Quick Guide
Safety Guide
2 Sticker
4 Rubber Feet
