Sennheiser EW IEM G4 (G: 566-608 MHz)

UPC/EAN #615104365711 MPN #509610

$1425.00

Save 16.1%, MSRP $1699.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

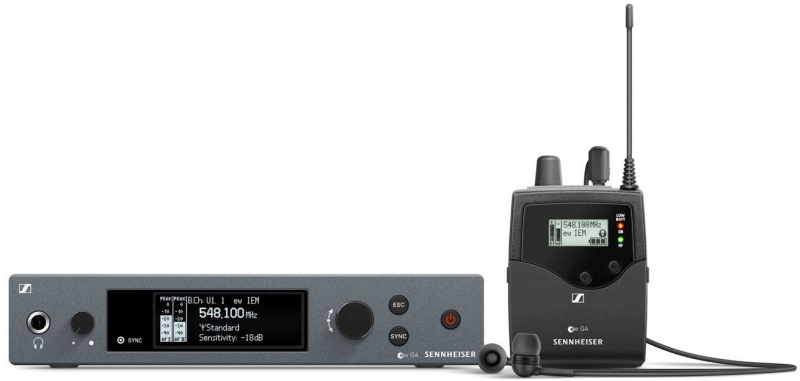

The EW IEM G4 In-Ear Monitoring Sets make your gig an extraordinary experience - not just for your audience, but also for you.

Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

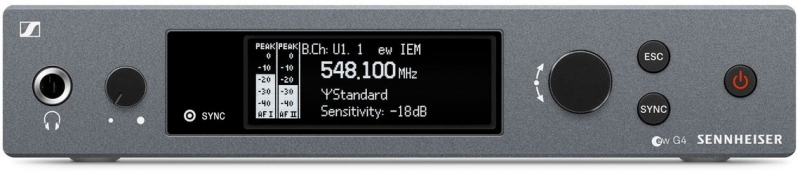

Half-rack stereo transmitter in a full-metal housing with OLED display for full control

Easy and flexible wireless synchronization between transmitter and receiver via infrared

Compatible with Sennheiser WSM control software for flexible frequency allocation

Up to 16 compatible channels

Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

Transmission Range: up to 100 meters / 300 feet

High RF output power (up to 50 mW) depending on country regulations

Specifications

SR IEM G4
Frequency range: G: 566-608 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: < 0.9 %
Weight: Approx. 980 g

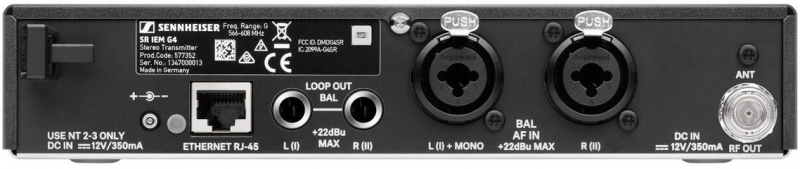

Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output: ¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio: >90 dB

RF output power (switchable)

Low: typ. 10 mW

Standard: typ. 30 mW

High: typ. 50 mW

Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM stereo (MPX pilot tone)
Power supply: 12 V DC
Current consumption: max. 350 mA
Max. Input voltage: +22 dBu

Transmission frequency

Max. 1680 frequencies

Adjustable in 25 kHz steps

20 frequency banks

Each with up to 16 factory-preset channels

No intermodulation

6 frequency banks with up to 16 programmable channels

AF frequency response: 25 Hz to 15 kHz
Temperature Range: -10 C to +55 C
Frequency stability: ±10 ppm
Antenna Output: BNC socket, 50

EK IEM G4
Frequency range: G: 566-608 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries) : approx. 125 g
Signal-to-noise ratio: approx. 90 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: approx. 4 to 6 hours (depending on volume level)
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: 25 µA
Adjacent channel rejection: Typically 65 dB
Audio-Output-Power: 2 x 100 mW at 32
Intermodulation attenuation: Typically 70 dB
Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
Powering: 3 V battery / 2.4 V rechargeable battery

Receiving frequency
