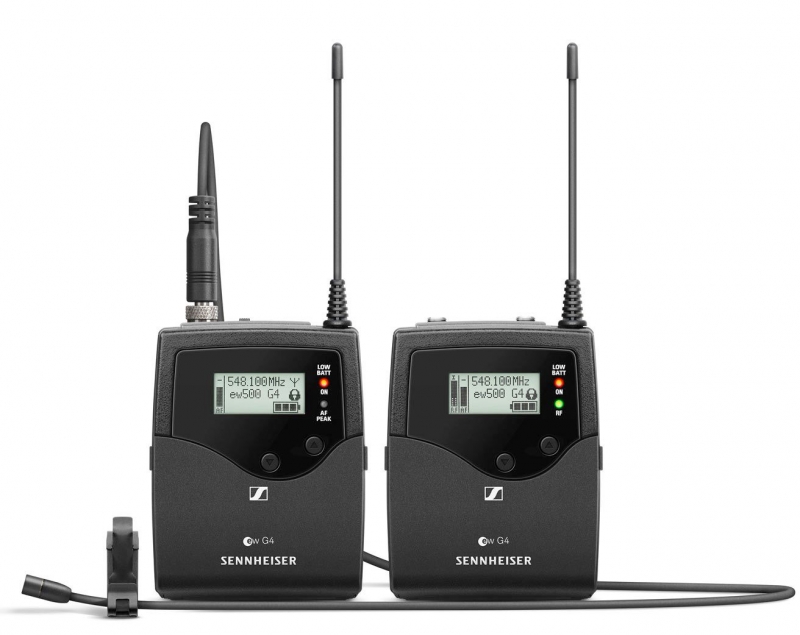

EW 512P G4 (Aw+: 470-558 MHz)

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording

Professional sound and excellent construction quality

Easy to use and fast setup time

Easy and flexible wireless synchronisation between transmitter and receiver via infrared

Up to 88 MHz bandwidth, up to 32 channels

Range: up to 100 meters / 330 feet

Increased RF output power (10/30/50 mW)

Up to 8 hours of operation time

EK 500 G4

Frequency range:

Aw+: 470-558 MHz

Dimensions:

Approx. 82 x 64 x 24 mm

Compander:

Sennheiser HDX

THD, total harmonic distortion:

0.9 %

Weight:

(incl. batteries) approx. 130 g

Audio output:

3.5 mm jack socket: +17 dBu (mono, balanced)

Signal-to-noise ratio:

Line: 110 dBAPhones: approx. 90 dBA

Switching bandwidth:

up to 88 MHz

Peak deviation:

±48 kHz

Nominal deviation:

±24 kHz

Operating time:

Typically 8 h

Modulation:

Wideband FM

Power supply:

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption:

at nominal voltage: typ. 140 mA with receiver switched off: 25 µA

Adjacent channel rejection:

Typically 65 dB

Intermodulation attenuation:

Typically 65 dB

Powering:

3 V battery / 2.4 V rechargeable battery

Receiving frequency

Max. 3520 receiving frequencies

adjustable in 25 kHz steps 20 frequency banks

each with up to 32 factory-preset channels

no intermodulation 6 frequency banks with up to 32 programmable channels

RF sensitivity:

< 1.6 V for 52 dBA eff S/N

Squelch:

low: 5 dBµV middle: 15 dBµV high: 25 dBV

Temperature Range:

-10 C to +55 C

Receiver Principle:

Adaptive diversity

Blocking:

70 dB

SK 500 G4

Frequency range:

Aw+: 470-558 MHz

Dimensions:

Approx. 82 x 64 x 24 mm

Compander:

Sennheiser HDX

THD, total harmonic distortion:

0.9 %

Weight:

(incl. batteries) approx. 160 g

Signal-to-noise ratio:

115 dBA

RF output power (switchable)

Low: typ. 10 mW

Standard: typ. 30 mW

High: typ. 50 mW

Switching bandwidth:

up to 88 MHz

Peak deviation:

±48 kHz

Nominal deviation:

±24 kHz

Operating time:

Typically 8 h

Modulation:

Wideband FM

Power supply:

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: typ. 180 mA

with transmitter switched off: 25 µA

Input impedance:

40 k, unbalanced / 1 M

Max. Input voltage:

3 Veff

Powering:

3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 3520 frequencies

Adjustable in 25 kHz steps

20 frequency banks

each with up to 32 factory-preset channels

No intermodulation

6 frequency banks with up to 32 programmable channels

AF frequency response:

Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz

Temperature Range:

-10 C to +55 C

Frequency stability:

±15 ppm

MKE 2

Connector:

3.5 mm jack

Frequency response:

20 to 20.000 Hz ± 3 dB

Max. sound pressure level:

142 dB

Cable length:

approx. 1.60 m

Transducer principle:

pre-polarized condensor microphone

Pick-up pattern:

omni-directional

Sensitivity in free field, no load (1kHz):

5 mV/Pa, ± 3 dB

Equivalent noise level:

26 dB

Equivalent noise level weighted as per CCIR 468-3:

39 dB
