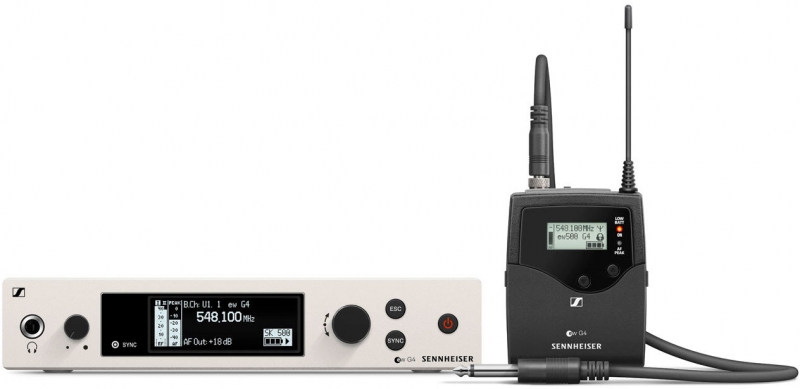

Sennheiser EW 500 G4-Ci1 (Aw+: 470-558 MHz)
UPC/EAN #615104366893
MPN #509669
$1175.00
Save 14.8%, MSRP $1379.00
The pro's choice. Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi channel settings on the world's music stages.
Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro's choice for perfectly balanced but upfront guitar and bass. Powerful bodypack transmitter and Ci1 instrument cable for unforgettable performances.
Features
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full controlEasy and flexible wireless synchronization between transmitter and receiver via infraredUp to 32 compatible channelsUp to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF rangeEthernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setupsHigh RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Specifications

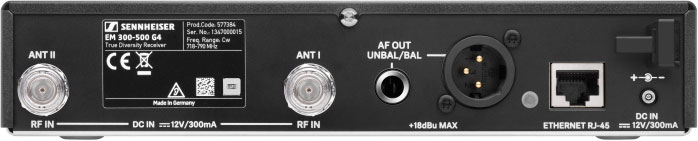

EM 300-500 G4
Frequency Range: Aw+: 470-558 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio: 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically 75 dB
Intermodulation attenuation: Typically 70 dB
Receiving frequency
Max. 3520 receiving frequenciesadjustable in 25 kHz steps20 frequency bankseach with up to 32 factory-preset channelsno intermodulation6 frequency banks with up to 32 programmable channels
RF sensitivity: < 2.5 V for 52 dBA eff S/N
Squelch: 5 to 25 dBV in steps of 2 dB
Equalizer
Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 C to +55 C
Receiver Principle: True diversity
Blocking: 75 dB
SK 500 G4
Frequency Range: Aw+: 470-558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: 115 dBA
RF output power (switchable)
Low: typ. 10 mWStandard: typ. 30 mWHigh: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mAwith transmitter switched off: 25 µA
Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequenciesAdjustable in 25 kHz steps20 frequency bankseach with up to 32 factory-preset channelsNo intermodulation6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
