Sennheiser EW 500 FILM G4 (Aw+: 470-558 MHz)
UPC/EAN #615104364301
MPN #509544
$1875.00
Save 14.7%, MSRP $2199.00

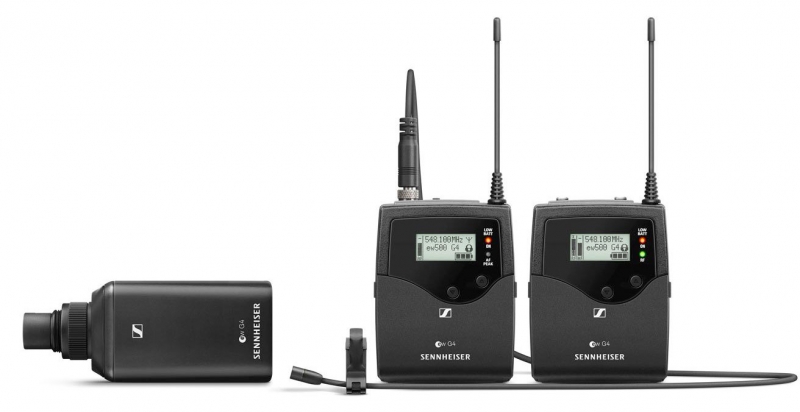

The ew 500 Film G4 Wireless Combo System Kit with MKE2 Lavalier Microphone from Sennheiser is the latest addition to Sennheiser's evolution family of wireless microphone systems.
The professional's choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.
Features
Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recordingProfessional sound and excellent construction qualityEasy to use and fast setup timeEasy and flexible wireless synchronisation between transmitter and receiver via infraredUp to 88 MHz bandwidth, up to 32 channelsRange: up to 100 meters / 330 feetIncreased RF output power (10/30/50 mW)Up to 8 hours of operation timeWith 48 V phantom powering
Specifications
EK 500 G4
Frequency range: Aw+: 470-558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 130 g
Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio: Line: 110 dBAPhones: approx. 90 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: 25 µA
Adjacent channel rejection: Typically 65 dB
Intermodulation attenuation: Typically 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequenciesadjustable in 25 kHz steps 20 frequency bankseach with up to 32 factory-preset channelsno intermodulation 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 1.6 V for 52 dBA eff S/N
Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBV
Temperature Range: -10 C to +55 C
Receiver Principle: Adaptive diversity
Blocking: 70 dB
SKP 500 G4
Frequency range: Aw+: 470-558 MHz
Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: 120 dBA
RF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 210 mAwith transmitter switched off: 25 µA
Input impedance: 68 k, unbalanced
Max. Input voltage: 6 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequenciesadjustable in 25 kHz steps 20 frequency bankseach with up to 32 factory-preset channelsno intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
SK 500 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: 115 dBA
RF output power (switchable)
Low: typ. 10 mWStandard: typ. 30 mWHigh: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mAwith transmitter switched off: 25 µA
Input impedance: 40 k, unbalanced / 1 M
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequenciesAdjustable in 25 kHz steps20 frequency bankseach with up to 32 factory-preset channelsNo intermodulation6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
MKE 2
Connector: 3.5 mm jack
Frequency response: 20 to 20.000 Hz ± 3 dB
Max. sound pressure level: 142 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
Equivalent noise level: 26 dB
Equivalent noise level weighted as per CCIR 468-3: 39 dB
