Sennheiser EW 500 BOOM G4 (Gw1: 558-608 MHz)
UPC/EAN #615104364493
MPN #509554
$1300.00
Save 16.1%, MSRP $1549.00

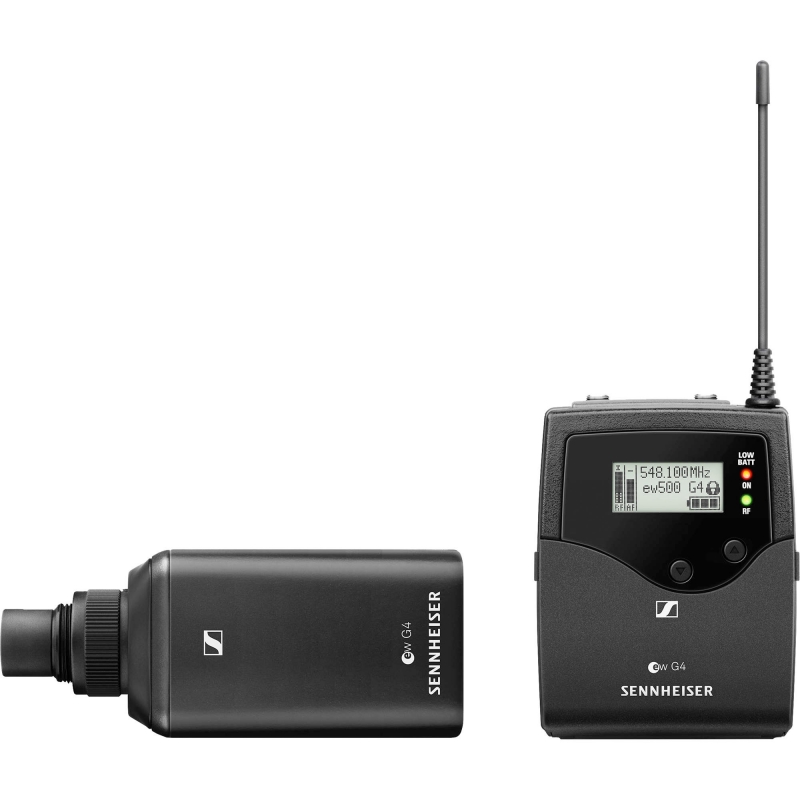

EW 500 BOOM G4 is an highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
The professional's choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.
Features
Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recordingProfessional sound and excellent construction qualityEasy to use and fast setup timeEasy and flexible wireless synchronisation between transmitter and receiver via infraredUp to 88 MHz bandwidth, up to 32 channelsRange: up to 100 meters / 330 feetIncreased RF output power (10/30/50 mW)Up to 8 hours of operation timeWith 48 V phantom powering
Specifications
EK 500 G4
Frequency range: Gw1: 558-608 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 130 g
Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
Signal-to-noise ratio: Line: 110 dBAPhones: approx. 90 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: 25 µA
Adjacent channel rejection: Typically 65 dB
Intermodulation attenuation: Typically 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequenciesadjustable in 25 kHz steps 20 frequency bankseach with up to 32 factory-preset channelsno intermodulation 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 1.6 V for 52 dBA eff S/N
Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBV
Temperature Range: -10 °C to +55 °C
Receiver Principle: Adaptive diversity
Blocking: 70 dB
SKP 500 G4
Frequency range: Gw1: 558-608 MHz
Dimensions: Approx. 105 x 43 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 195 g
Signal-to-noise ratio: 120 dBA
RF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 210 mAwith transmitter switched off: 25 µA
Input impedance: 68 k, unbalanced
Max. Input voltage: 6 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequenciesadjustable in 25 kHz steps 20 frequency bankseach with up to 32 factory-preset channelsno intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 - 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ±15 ppm
