Sennheiser EW 300 G4-BASE COMBO (Aw+: 470-558 MHz)
UPC/EAN #615104368866
MPN #509779
$1389.00 (Special)
Save $200.00, Regular $1589.00
Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz.
New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.

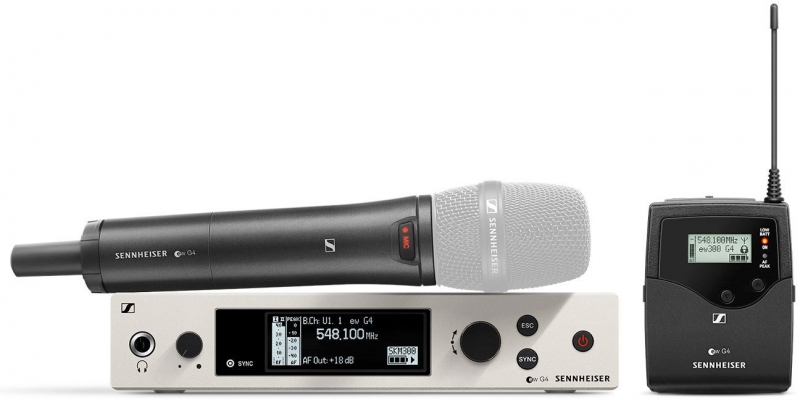

The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.
Features
Easy to use, fast setup timeIntegrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM SoftwareBroad range of products and existing accessories (such as microphones) allows usage in any kind of environmentUp to 88 MHz bandwidth, up to 32 channelsIncreased RF output power (10/30/50 mW)Transmission Range: up to 100 meters / 330 feetCompatible with wireless speaker system LSP 500 PRORC (remote control) switch available for the bodypack transmitter
Specifications
EM 300-500 G4
Frequency Range: Aw+: 470-558 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio: 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically 75 dB
Intermodulation attenuation: Typically 70 dB
Receiving frequency
Max. 3520 receiving frequenciesadjustable in 25 kHz steps20 frequency bankseach with up to 32 factory-preset channelsno intermodulation6 frequency banks with up to 32 programmable channels
RF sensitivity: < 2.5 V for 52 dBA eff S/N
Squelch: 5 to 25 dBV in steps of 2 dB
Equalizer
Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 C to +55 C
Receiver Principle: True diversity
Blocking: 75 dB

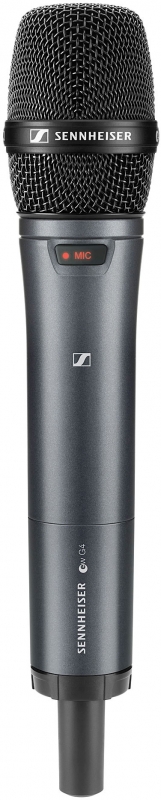

SKM 300 G4-S
Frequency Range: Aw+: 470-558 MHz
Dimensions: Approx. Ø 50 x 265 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 450 g
Signal-to-noise ratio: 115 dBA
RF output power (Switchable) Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mAwith transmitter switched off: 25 µA
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 transmission frequenciesAdjustable in 25 kHz steps20 frequency banksEach with up to 32 factory-preset channelsNo intermodulation6 frequency banks with up to 32 programmable channels
AF frequency response: 80 - 18,000 Hz
Temperature Range: -10 C to +55 C
Frequency stability: ±15 ppm
