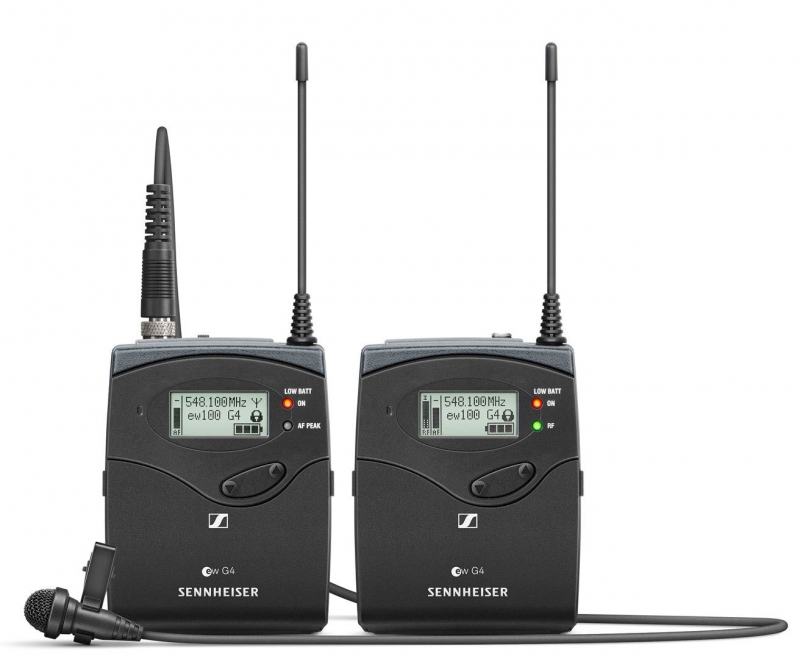

EW 112P G4 (A1: 470-516 MHz)

Rugged all-in-one wireless system with high flexibility for broadcast quality sound

Excellent sound and construction quality

Easy to use and fast setup time

Powerful and reliable wireless transmission

Range: up to 100 meters / 330 feet

Up to 8 hours of operation time

EK 100 G4

Frequency range

A1: 470-516 MHz

Dimensions:

Approx. 82 x 64 x 24 mm

Compander:

Sennheiser HDX

THD, total harmonic distortion:

0.9 %

Weight (incl. batteries):

approx. 160 g

Audio output:

3.5 mm jack socket, +12 dBu (mono, unbalanced)

Signal-to-noise ratio:

110 dBA

Switching bandwidth:

up to 42 MHz

Peak deviation:

±48 kHz

Nominal deviation:

±24 kHz

Operating time:

Typically 8 h

Modulation:

Wideband FM

Power supply:

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption at nominal voltage:

typ. 180 mA

with receiver switched off:

25 µA

Adjacent channel rejection:

65 dB

Intermodulation:

attenuation 65 dB

Powering:

3 V battery / 2.4 V rechargeable battery

Receiving frequency:

Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity:

< 1.6 V for 52 dBA eff S/N

Squelch

Low: 5 dBµV

Middle: 15 dBµV

High: 25 dBV

Temperature Range:

-10 C to +55 C

Receiver Principle:

Adaptive diversity

Blocking:

70 dB

SK 100 G4

Frequency range:

A1: 470-516 MHz

Dimensions:

Approx. 82 x 64 x 24 mm

Compander:

Sennheiser HDX

THD, total harmonic distortion:

0.9 %

Weight (incl. batteries):

approx. 160 g

Signal-to-noise ratio:

110 dBA

RF output power:

Max. 30 mW

Switching bandwidth:

up to 42 MHz

Peak deviation :

±48 kHz

Nominal deviation:

±24 kHz

Operating time:

Typically 8 h

Modulation:

Wideband FM

Power supply:

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption at nominal voltage:

typ. 180 mA

with transmitter switched off:

25 µA

Input impedance:

40 k, unbalanced / 1 M

Max. Input voltage:

3 Veff

Powering:

3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 1680 transmitting frequencies

Adjustable in 25 kHz steps 20 frequency banks

Each with up to 12 factory-preset channels

No intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response

Mic: 80 - 18,000 Hz

Line: 25 - 18,000 Hz

Temperature Range:

-10 C to +55 C

Frequency stability:

±15 ppm

ME 2

Connector:

3.5 mm jack

Frequency response:

50 to 18,000 Hz (ME 2-II)

Max. sound pressure level:

130 dB

Cable length:

approx. 1.60 m

Transducer principle:

pre-polarized condensor microphone

Pick-up pattern:

omni-directional

Sensitivity:

in free field, no load (1kHz) 20 mV/Pa

Equivalent noise level:

36 dB
