Sennheiser EK IEM G4 (A: 516-558 MHz)
UPC/EAN #615104365964
MPN #509622
$629.00
Save 20.3%, MSRP $789.00

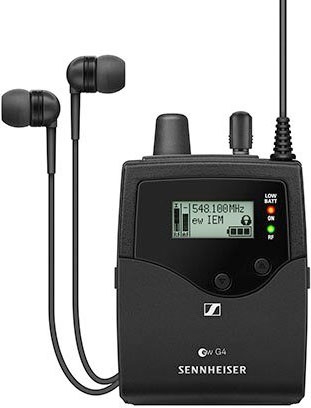

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stageEasy and flexible wireless synchronization between transmitter and receiver via infraredCompatible with Sennheiser WSM control software for flexible frequency allocationUp to 16 compatible channelsUp to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF rangeTransmission Range: up to 100 meters / 300 feetHigh RF output power (up to 50 mW) depending on country regulations
Specifications
Frequency range
A: 516-558 MHz
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries) : approx. 125 g
Signal-to-noise ratio: approx. 90 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: approx. 4 to 6 hours (depending on volume level)
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: 25 µA
Adjacent channel rejection: Typically 65 dB
Audio-Output-Power: 2 x 100 mW at 32
Intermodulation attenuation: Typically 70 dB
Limiter: -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 frequenciesAdjustable in 25 kHz steps20 frequency banksEach with up to 16 factory-preset channelsNo intermodulation6 frequency banks with up to 16 programmable channels
RF sensitivity:
