Sennheiser EK 100 G4 (A1: 470-516 MHz)
UPC/EAN #615104363786
MPN #509518
$449.95
Save 20.9%, MSRP $569.00

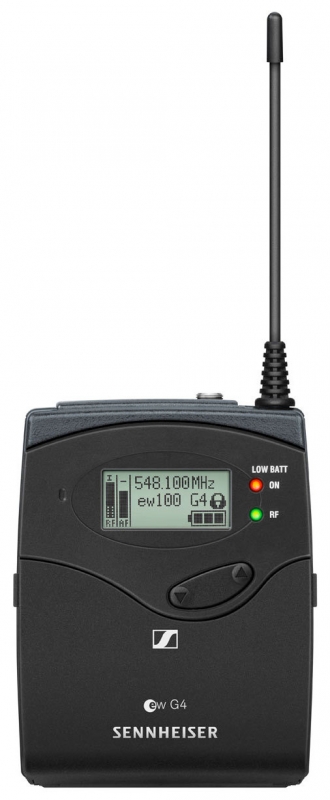

The EK 100 G4 is a powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems
For documentary, Mobile Journalism and audio for video applications.
Portable components always work easiest when you do not have to think about them. This was the basis on which the EK 100 G3 was developed. Its adaptive-diversity technology provides excellent reception at all times. This receiver is designed to securely attach to a camera's shoe using a clamp mount. The EK 100 G3 also can synchronize to a G3 transmitter with a simple push of a button. The EK100G3 is compatible with the optional DC 2 external adapter for extended use without batteries where a 12VDC source is available.
Features
Powerful camera receiver, easily mounted on any kind of cameraExcellent sound and construction qualityEasy to use and fast setup timePowerful and reliable wireless transmissionRange: up to 100 meters / 330 feetUp to 8 hours of operation time
Specifications
Frequency range
A1: 470-516 MHz
General
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight (incl. batteries): approx. 160 g
Audio output: 3.5 mm jack socket, +12 dBu (mono, unbalanced)
Signal-to-noise ratio: 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: 25 µA
Adjacent channel rejection: 65 dB
Intermodulation: attenuation 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity:
