Schoeps CCM 4 Parabolic Disc Set
MPN #163201

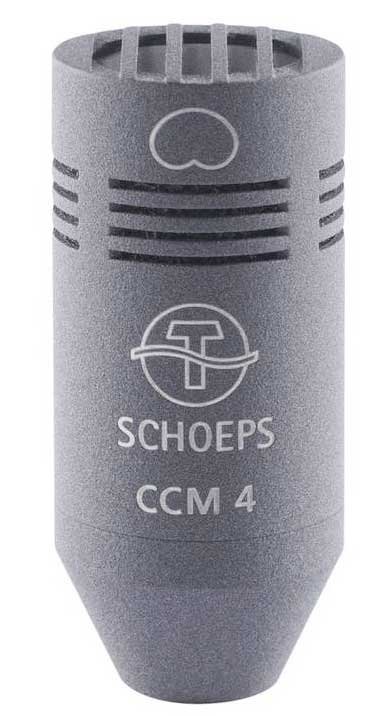

CCM 4 Cardioid Parabolic Dish Set is a compact microphone, including CCM 4 Lg Cardioid and a Pari-1 Kit
It offers the highest sound quality, flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. In the diffuse sound field it shows only a mild rise around 10 kHz. The sonic impression is thus free of coloration whether sound is arriving at the front or at the sides of the microphone, as well as for diffuse sound (reverberation) in a room.
By design, the CCM 4 was optimised for rejection of rear-incident sound. As is typical of a classic cardioid, the attenuation at 90° incidence angle is 6 dB and at 180° it reaches 20-30 dB. Diffuse sound is reduced by 4.8 dB compared to frontally-incident sound - a value corresponding to the directivity index. The higher this value is, the less room sound the microphone picks up, thus lowering the risk of acoustic feedback.
Thanks to its directivity, the CCM 4 can achieve the same diffuse-to-direct sound balance from 1.7 times the distance to the sound source compared to a pure pressure transducer with the same sensitivity.
Practice
The CCM 4 is suitable for recording both speech and music. It is used equally often as a spot or studio microphone or as part of a stereo array. For example, the ORTF-Stereo technique with STC is realised using this microphone. Excellent results can be achieved with a CCM 4 as the mid microphone in a M/S arrangement or with two CCM 4 as a XY stereo pair.
This microphone type is exceptionally universal and thus most often used.
Features

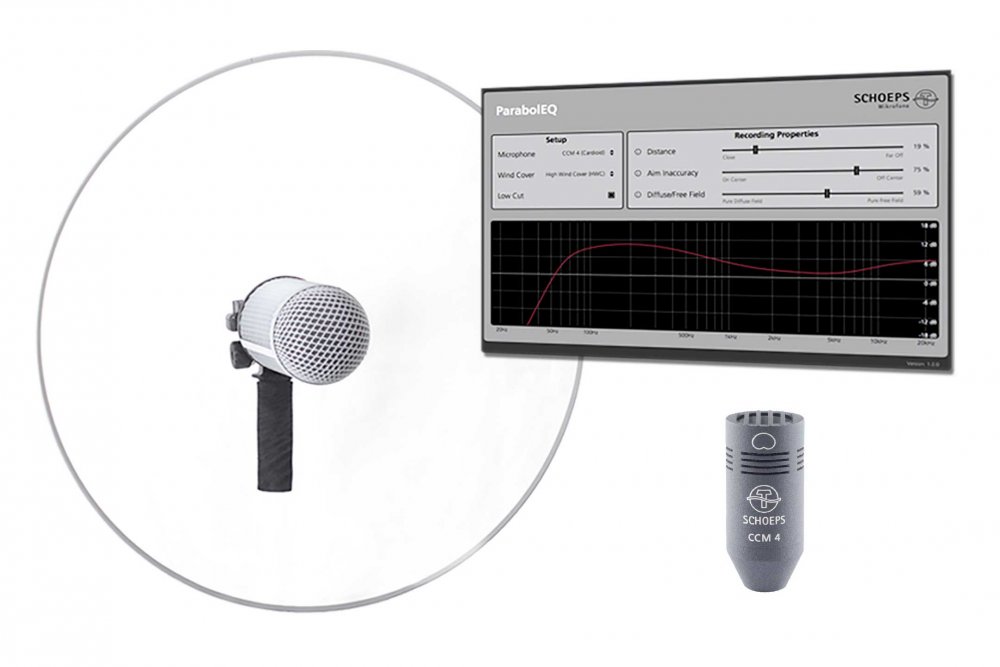

Matched system of CCM microphone and parabolic dish for highest directivity at medium and high frequenciesApplication: nature recordings, sports broadcasts, sound designFor best results use with free EQ plugin "ParabolEQ"Strong protection against wind noise due to innovative design using a Rycote windshield with furSets available with omni, wide cardioid or cardioid CCM microphoneOEM parabolic dish from Telinga
Specifications
Variants & Options

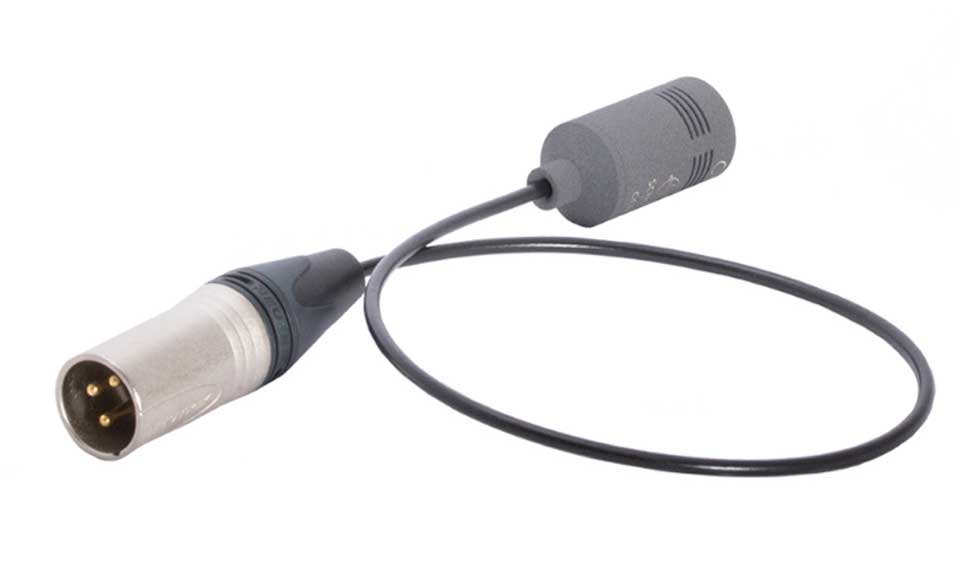

No. 191701 "Matching of microphone capsules including certificate": Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs.Each CCM microphone is available as a standard version "L" with a Lemo plug and as a version "U" with a permanently attached 5 m cable and XLR-3M connector.
Included Accessories
CCM microphone incl. premium box, SGC clamp, K 5 LUParabolic dish 22" foldable, transparentHandle including the fixed microphone cableMicrophone holder with Rycote windshield incl. mounting kitRycote fake-fur Windjammer
