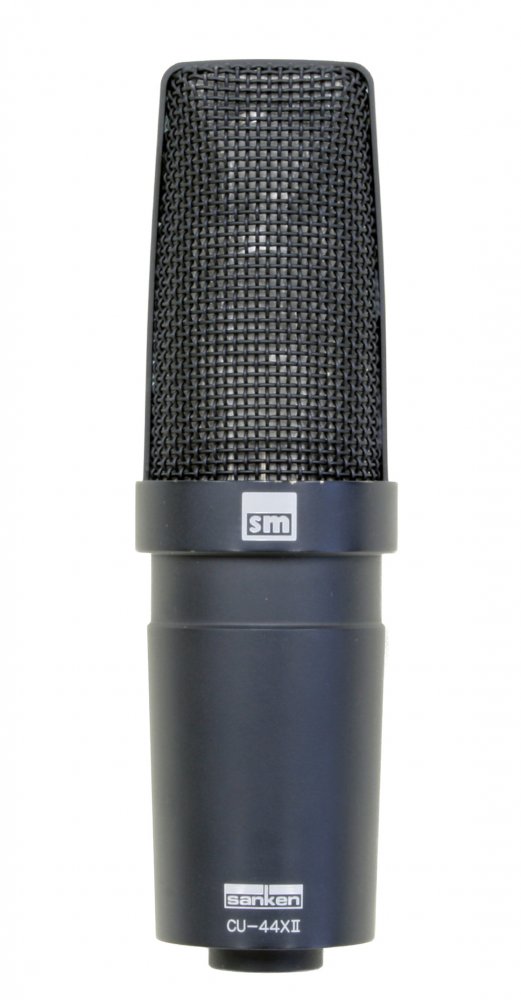

Sanken CU-44X MKII
MPN #CU-44X MKII
High transient response, transformerless 2 way capsule microphone
This unique design with dual titanium diaphragms is a meticulously engineered microphone which produces a completely transparent and high-resolution sound suitable for today's advanced high sampling digital recordings. The CU-44X MkII also features a unique capsule mounting scheme to ensure phase coherency between the two capsules. The titanium membranes of the CU-44X MkII are immune to the effects of humidity and temperature change, resulting in a totally consistent response, regardless of the recording environment
In 1982, Sanken introduced the first of the company's dual capsule microphones, the CU-41, a cardioid condenser microphone which established a new standard for music and voiceover recording. The CU-41's 2-way capsule provided flat frequency response and distortion-free performance from 20Hz to 20kHz, resulting in a completely natural and uncolored sound. The CU-44X introduced in 1988 was an output-transformerless version of the popular CU-41. The high speed transient characteristics of a transformerless design afforded new degrees of accurate spatial reproduction and colorless sonic transparency. While the CU-44X required a special PSU power supply, the new CU-44X MkII conveniently houses the 48V phantom power supply within the body of the microphone.
The CU-44X MkII's frequency response is totally flat , not only on axis, but also at 90 degrees, and even at 135 degrees. This capacity is essential in maintaining absolute sonic transparency. The smooth cardioid polar pattern and uniform response over the entire frequency range allows the CU-44X MkII to capture both the designated audio target as well as the naturally reflected sounds, with identical optimum response.
The CU-44X MkII has the desirable characteristics of a transformerless design, achieving superior transient response and vivid sonic imagery. This revolutionary new microphone has a maximum input level of 140dB (1% THD), making it capable of withstanding extremely high sound pressure levels without distortion.
Specifications
Directivity: Cardioid
Transducer: DC biased condenser
Frequency range: 20Hz - 30kHz
Sensitivity (nominal at 1kHz): 25.1mV/Pa(-32dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 15dB-A
Max SPL (1% THD): 140dB SPL
Output impedance at 1KHz: 150 ohm
Powering: +48±4V phantom
Current consumption: less than 4mA
Weight: 430g
Dimensions: 156mm x 45.5mm(diameter)
Surface finish: matte black
Connector: XLR-3M
Included Accessories

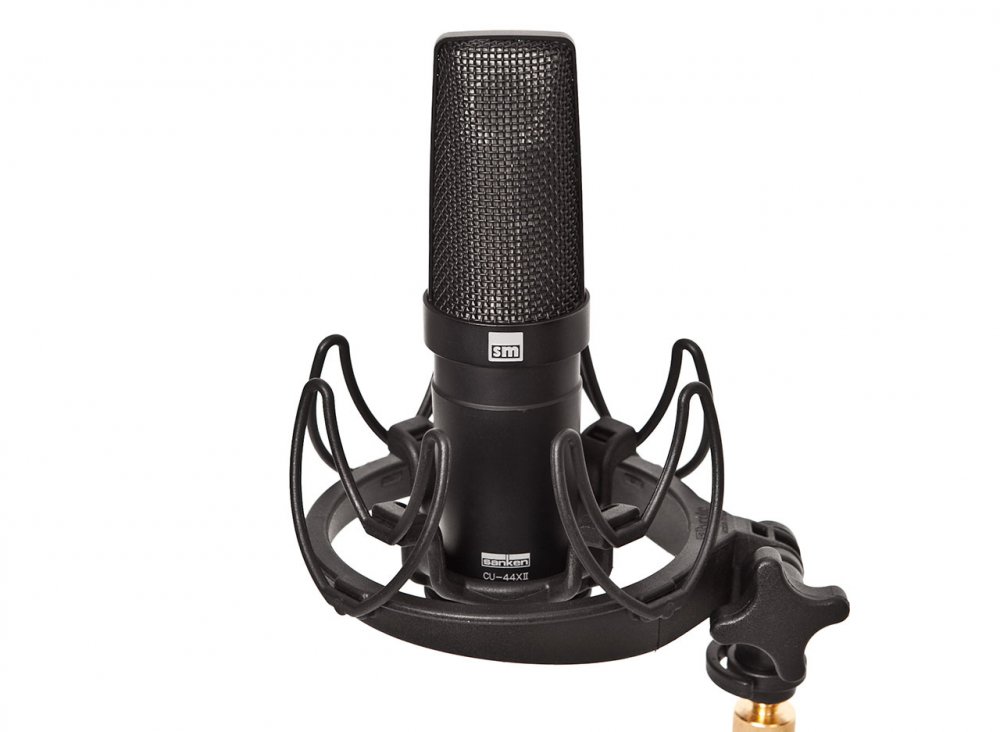

measurement datawarranty cardS-44X Shock Mount SuspensionVinyl Case
