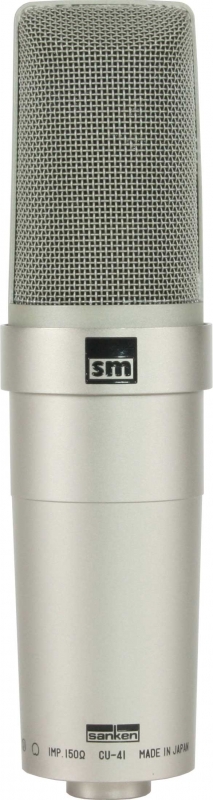

Sanken CU-41R
MPN #CU-41
Cardioid condenser microphone with 2 way capsule design and totally flat frequency response
The special two-way transducer provides a totally flat frequency response.
Frequency response is totally flat not only on axis, but also at 90 degrees, and even at 135 degrees. This capacity is very important in keeping the sound transparent.
The CU-41 is also suitable as an announcer and narration booth microphone in TV and Radio facilities. Its distortion-free performance is renowned worldwide. This microphone offers a pure cardioid pattern with low proximity effect, and is 48V phantom-driven.
Features
2 way capsule designTotally flat frequency response in 0, 60,90and 135
Specifications
Directivity: Cardioid
Transducer: DC biased condenser
Frequency range: 20Hz - 30kHz
Sensitivity (nominal at 1kHz): 7mV/Pa ( -43dB,0dB=1V/Pa)
Equivalent noise level (A-weighted): 15dB-A
Max SPL (1% THD): 140B SPL
Output impedance at 1KHz: 150 ohm
Powering: +48±4V phantom
Current consumption: less than 4.2mA
Weight: 600g
Surface finish: satin nickel
Connector: XLR-3M
Dimensions: 180mm x 50mm (diameter)
Included Accessories
measurement datawarranty cardvinyl caseS-41 elastic suspension
