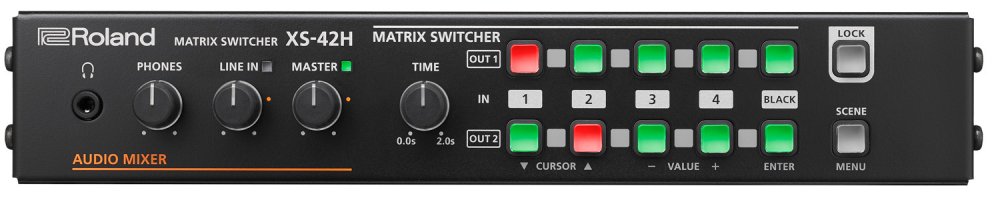

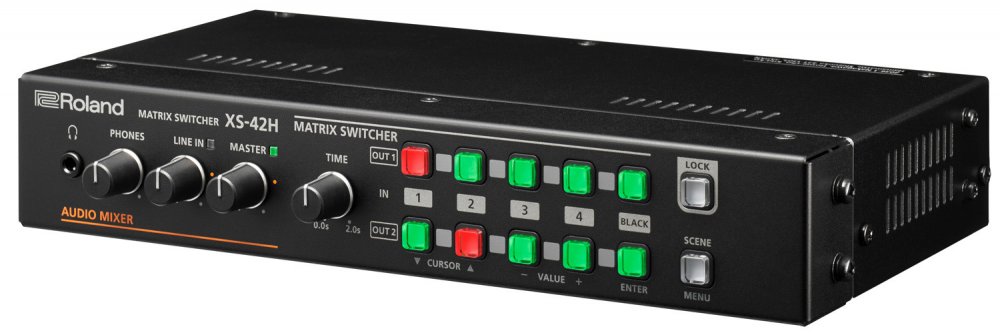

Roland XS-42H
UPC/EAN #761294513316
MPN #XS-42H
The Roland XS-42H is the switcher anyone can connect to and immediately startsharing information to one or two screens for effective meetings and huddles
It is easily installed without any AV experience turns any flat panel TV into a meeting room system.
Specifications
VIDEO
Processing: 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
Input Connectors: HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
Output Connectors: HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
Formats: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
Composition: Layer: 1
Transition: Black-insert, Mix, Cut
Still Image: Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sample Rate: 48 kHz, 24 bits
Input Connectors: HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type
Output Connectors: HDMI: HDMI type A x 2
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini typeInput LevelAUDIO INPUT: -10 dBu (Maximum: +8 dBu)Input ImpedanceAUDIO INPUT: 15 k ohmsOutput LevelAUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms)Output ImpedanceAUDIO OUTPUT: 1 k ohm
PHONES : 10 ohmsFormatsHDMI: Linear PCM, 24 bits, 48 kHz, 2 chProcessingMixer: 4 ch x 2 (Delay: Maximum 250 ms, Audio Follow)

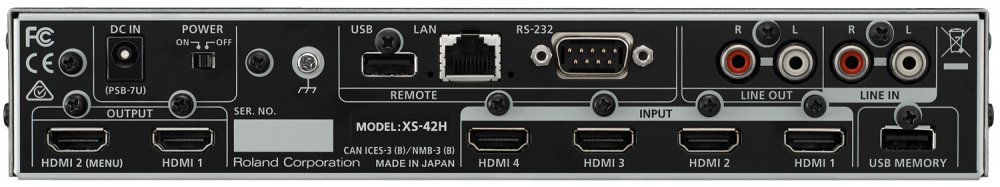

OTHERS
External Connectors: REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
USB MEMORY: USB A type x 1 (Use for USB Memory)
Functions:
Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator
Power Supply: AC Adaptor
Current Draw: 2.1 A
Power Consumption: 25 W
Operation Temperature:
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions:
242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
Weight:
1.2 kg
2 lbs 11 oz
Accessories:
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

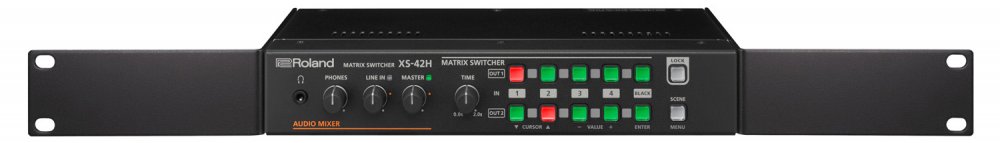

Rubber feet (4 pcs.)
Rack mount angle setThe 7" KRK ROKIT RP7 G4 (Generation 4) bi-amp professional monitor takes music and sound creativity to a whole new industry-level.Desktop 2 x 4 Thunderbolt 3 Audio Interface w/ Realtime UAD-2 SOLO Processing for Mac and Windows.
