Roland FS-6
UPC/EAN #761294086513
MPN #FS-6

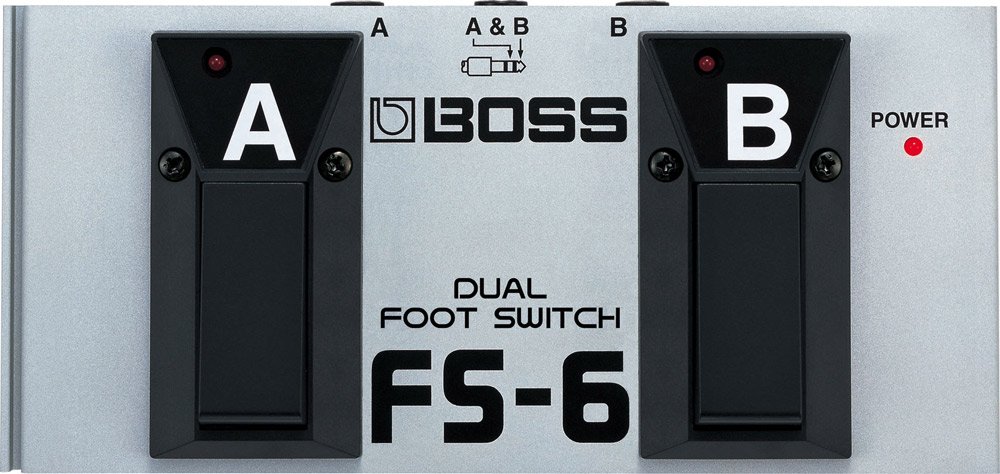

Roland/Boss double contact footswitch for triggering compatible video switchers
Two switches in one, BOSS's FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.
Features
Each footswitch can be assigned latch- or momentary-type
Stereo input jack for single stereo cable connection
Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U
Specifications
Controls: Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B

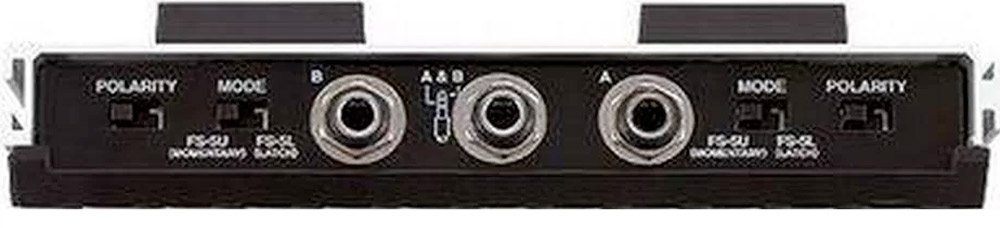

Connectors: Jack A, Jack B (1/4 inch phone type)
Jack A & B (TRS 1/4 inch phone type)
Power Supply: DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)
Current Draw: 8 mA (max.)
Accessories: Dry battery/9 V (6F22), Owner's Manual
SIZE AND WEIGHT ( INCL. BATTERY )
Width: 188 mm, 7-7/16 inches
Depth: 91 mm, 3-5/8 inches
Height: 43 mm, 1-3/4 inches
Weight: 470 g, 1 lbs. 1 oz.
