RME  |  SKU: 13306

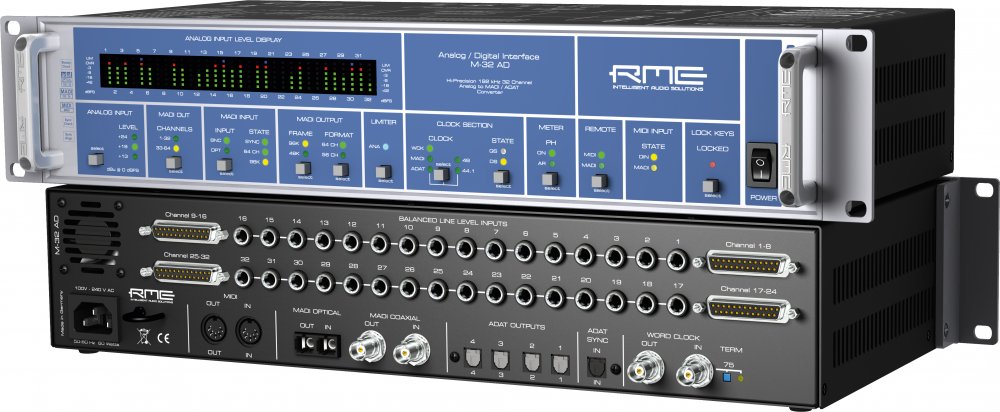

M32AD

MADI

32 channel analog to MADI/ADAT converter

$7,549.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The unit's unique set of features includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.3 mm TRS and D-sub inputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure. An extraordinary limiter, conceived and optimised for professional studio, stage, and broadcast applications, offers essential operational safety with its capability to limit an input's overload of up to 17 dB without audible distortion (max. input level + 30 dBu).

The M-32 provides multichannel conversion in reference quality - at an unbeatable price/performance ratio!

Features

32-channel AD converter, fully symmetrical design, 116 dBA

19" enclosure with only 2 units height

1 x MADI I/O, 32 chanels @ 96 kHz, 16 channels @ 192 kHz

4 x ADAT Out, 16 channels @ 96 kHz, 8 channels @ 192 kHz

Automatic Delay Compensation: no user operation necessary when stacking units

Analog limiter can be activated

32 LED level meters with 5 LEDs each

32 LEDs to display the Limiter state per channel

SteadyClock(TM) - pristine sound quality independently from the quality of the external clock signal

SyncCheck(TM) - unique technology to check clock synchronization

All settings are stored permanently

Fully remote controllable via MIDI and MIDI over MADI

Specifications

Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path

Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial

Dynamic Range AD: 113 dB RMS unweighted, 116 dBA

THD AD: < -110 dB (< 0.00032 %)

THD+N AD: < -104 dB (< 0.00063 %)

Crosstalk AD: > 130 dB

Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu

Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)

Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)

Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)

Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input

Jitter sensitivity: all PLLs operate error-free even at 100 ns

Jitter suppression: > 30 dB (2.4 kHz)

Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt

Dimensions: (WxHxD) 483 x 88 x 200 mm
