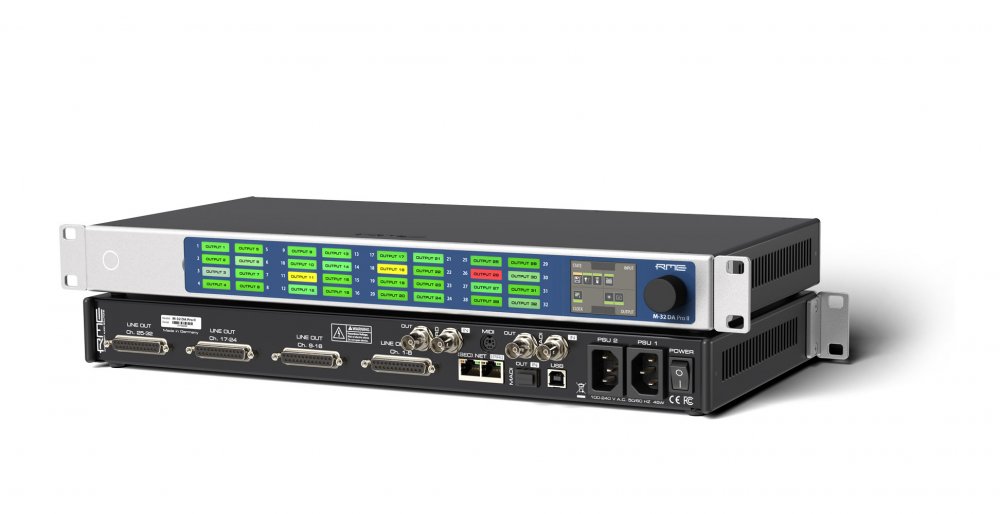

RME M-32 Pro DA II
MPN #M-32 Pro DA II
32-channel 192 kHz DA converter with MADI, AVB, redundant PSU, +24 dBu support, SteadyClock FS, tri-color metering, web/USB control, low latency.
The RME M-1620 Pro DA is a 20-channel digital-to-analog converter that brings pristine, reference-grade sound from MADI, ADAT, and Milan AVB network audio into the analog domain. Equipped with 16 balanced line outputs (individually switchable up to +24 dBu) plus two independent stereo headphone outputs, it's an ideal hub for professional live sound monitoring, broadcast playback, and high-end studio workflows.
Built into a rugged 1U chassis, the M-1620 Pro DA offers dual redundant network and MADI connections, optional optical MADI via SFP, and a monitored DC input alongside the internal AC power supply for mission-critical reliability. RME's SteadyClock FS ensures ultra-low jitter, while the onboard routing matrix allows direct channel mapping from any digital source to the analog outputs or headphones. Full control is possible from the front panel, via web interface, or over USB, making it equally suited for standalone operation or deep integration into networked audio systems.
Features
32-channel digital-to-analog conversion with fully symmetrical, truly balanced outputs.MADI I/O (coaxial & optional optical SFP) with automatic input redundancy.AVB networking with dual redundant ports, up to 128 channels at 48 kHz (96 @ 96 kHz, 64 @ 192 kHz).Per-channel +24, +19, +13 dBu output level switching for versatile system integration.SteadyClock FS for jitter suppression and precise clocking.Tri-color backlit channel labels with magnetic cover for customizable markings.Routing matrix supports flexible signal routing from any digital input to any analog output.Redundant internal PSUs for maximum reliability in critical applications.Control via front panel, network, USB, MIDI over MADI, or JSON API.Slim 1U rackmount design with 15 preset storage slots.
Specifications
General Specifications:
Model: M-32 DA Pro IIType: 32 channel digital to analog converter with MADI and AVBForm Factor: 1U 19 inch rackmountNetwork Protocol: AVB IEEE 802.1 and 1722.1 compliantRedundancy: Dual network ports, dual MADI, dual redundant PSU
Connectivity:

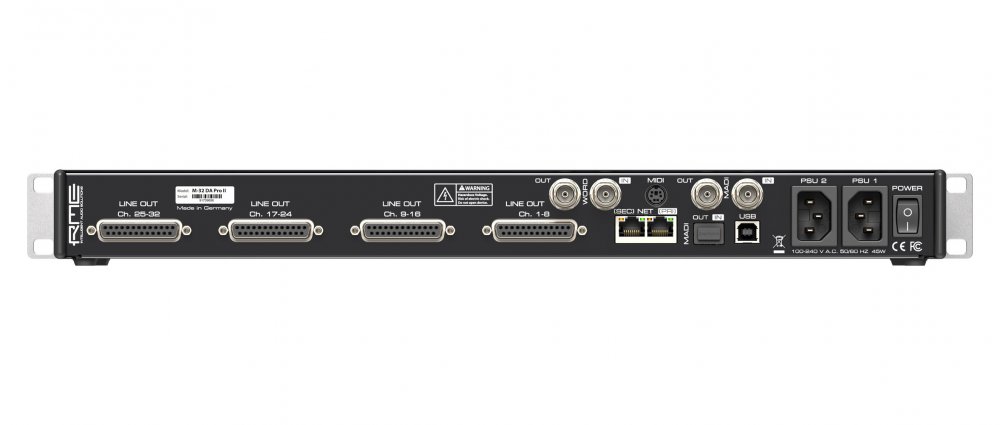

32 analog outputs via 25 pin D-sub up to +24 dBu2 MADI IO coaxial BNC2 MADI IO optical SFP optional multimode or single mode2 RJ45 Gigabit Ethernet AVBWord Clock IO BNCUSB 2.0 for remote control and firmwareOptional MIDI IO for legacy remote control
Analog Line Output Specifications:
Resolution 24 bitOutput level switchable per channel +24 dBu, +19 dBu, +13 dBuDC coupled truly balancedOutput impedance 200 Ohm balanced, 100 Ohm unbalancedSNR at +13 dBu 116.0 dB RMS unweighted, 119.0 dBASNR at +19 dBu 116.3 dB RMS unweighted, 119.3 dBASNR at +24 dBu 116.5 dB RMS unweighted, 119.8 dBAFrequency response at 44.1 kHz 0 Hz to 22 kHzTHD at '1 dBFS less than '113 dB, less than 0.00022 percentTHD+N at '1 dBFS less than '111 dB, less than 0.00028 percentChannel separation greater than 110 dB
Features:

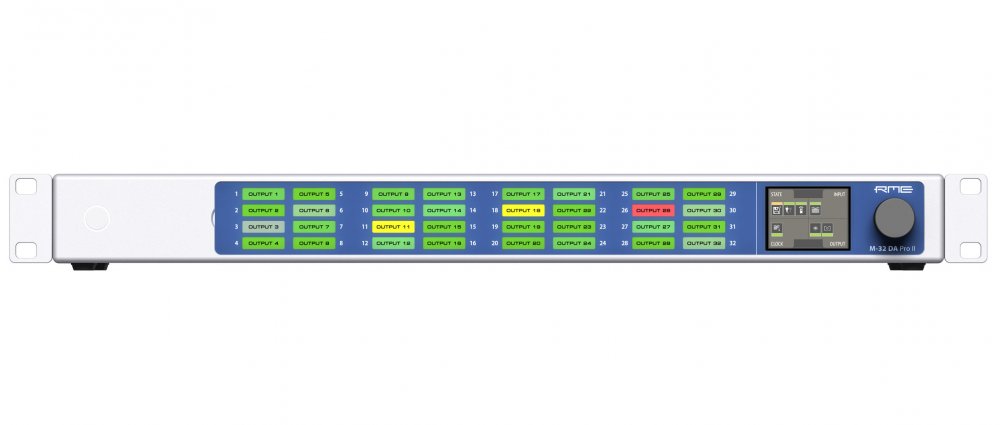

SteadyClock FS for jitter reduction and clock stabilityInternal single channel routing up to 256x288 channelsSyncCheck and Intelligent Clock ControlMADI Auto Input seamless redundancyTri color backlit channel indicators with peak RMS meteringMagnetic cover with customizable channel labels2 inch display with control knob15 preset storage with lock and dark modeRemote control via HTTP, JSON, IEEE 1722.1 ATDECC, MIDI over MADI, optional MIDIImpulse response optimization at 88.2 kHz and higherAVB streaming up to 128 channels at 48 kHz, 96 channels at 96 kHz, 64 channels at 192 kHz
