RME M-32 Pro AD II Dante
MPN #M-32 Pro AD II DAnte
32-channel 192 kHz AD converter with MADI, Dante, redundant PSU, +24 dBu support, SteadyClock FS, tri-color metering, web/USB control, low latency.

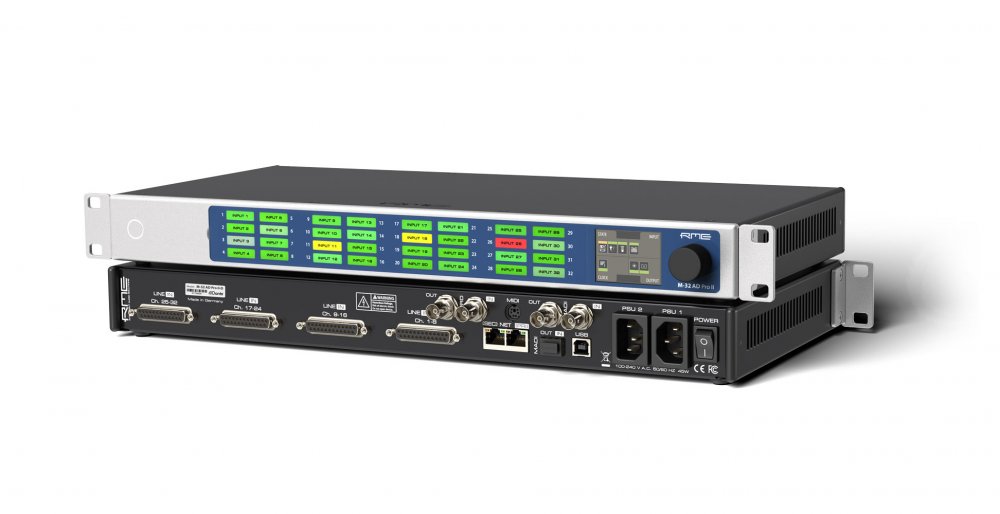

The M-32 AD Pro II and M-32 AD Pro II-D are 32-channel, 192 kHz analog-to-digital converters built for professional studios, large-scale installations, and live production systems demanding reference-grade audio capture and robust network integration. They feature fully balanced analog inputs with per-channel level settings of +13, +19, or +24 dBu, delivering up to 120.7 dB(A) SNR and ultra-low THD for maximum transparency.

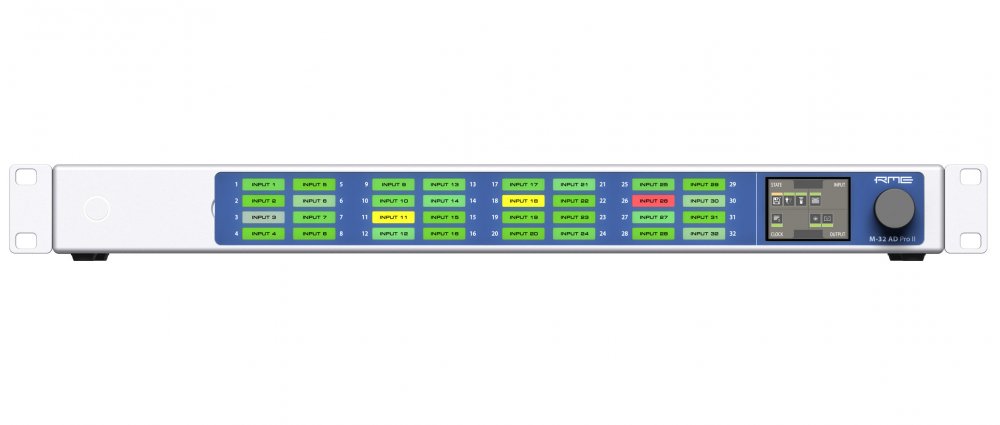

The Pro II model incorporates AVB networking with dual redundant ports, while the Pro II-D integrates Dante connectivity for direct interoperability with Dante-enabled audio networks and recording systems via Dante Virtual Soundcard (license required). Both versions provide MADI I/O (coaxial and optional optical SFP), Word Clock, USB remote control, and dual redundant PSUs. A front-panel display, tri-color channel metering, and customizable magnetic labels offer instant status feedback, while the powerful internal routing matrix enables single-channel routing between analog, MADI, and network streams. With SteadyClock FS technology, fixed-latency network audio, and multi-layer redundancy, the M-32 AD Pro II series ensures stable, transparent, and reliable performance for the most demanding professional environments.
Features
32-channel analog-to-digital conversion with premium-grade components for ultra-low noise and distortion.MADI I/O (coaxial & optional optical SFP) with seamless redundancy.Native Dante networking with dual redundant ports, up to 64 channels at 192 kHz, compatible with Dante Virtual Soundcard.Per-channel +24, +19, +13 dBu input level switching for professional studio and live setups.SteadyClock FS ensures excellent clock quality in all sync situations.Tri-color backlit channel labeling for easy visual management.Integrated routing matrix allows any channel to be routed to any digital output.Dual redundant internal PSUs for fail-safe operation.Full control from front panel, network interface, USB, MIDI over MADI, or JSON API.Compact 1U rack design with magnetic label cover and preset memory slots.
Specifications
General Specifications:
Model: M-32 AD Pro II-DType: 32 channel analog to digital converter with MADI and DanteForm Factor: 1U 19 inch rackmountNetwork Protocol: Dante IP Core with two redundant Gigabit Ethernet portsRedundancy: Dual network, dual MADI, dual redundant PSU
Connectivity:

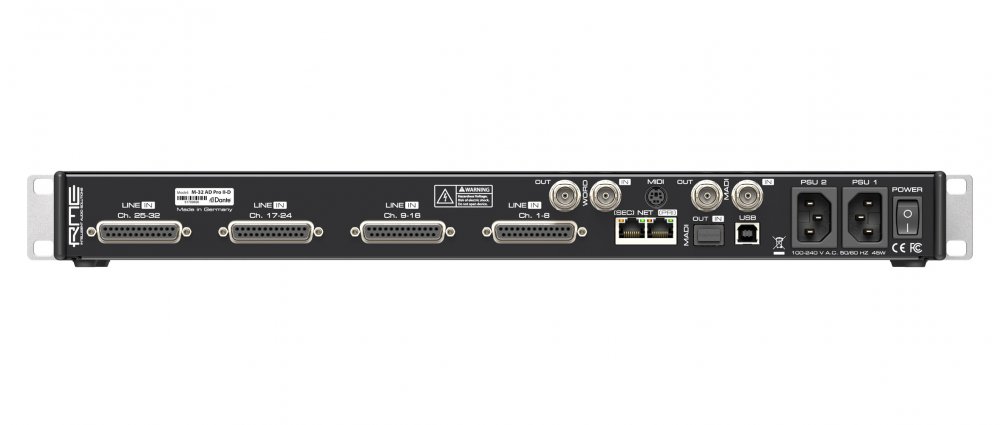

32 analog inputs via 25 pin D-sub up to +24 dBu2 MADI IO coaxial BNC2 MADI IO optical SFP optional multimode or single mode2 RJ45 Dante network ports up to 64 channelsWord Clock IO BNCUSB 2.0 for remote control and firmwareOptional MIDI IO for legacy remote control
Analog Line Input Specifications:
Resolution 24 bitInput level switchable per channel +24 dBu, +19 dBu, +13 dBuAC coupled fully symmetrical servo balancedInput impedance 9.5 kOhmSNR at +24 dBu 117.0 dB RMS unweighted, 120.7 dBASNR at +19 dBu 116.3 dB RMS unweighted, 119.9 dBASNR at +13 dBu 114.7 dB RMS unweighted, 118.3 dBAFrequency response 5 Hz to 20.5 kHz at 44.1 kHzTHD at '1 dBFS less than '111 dB, less than 0.00029 percentTHD+N at '1 dBFS less than '108 dB, less than 0.00039 percentChannel separation greater than 110 dB
Features:
SteadyClock FS for jitter reduction and clock stabilityInternal single channel routing across all IOSyncCheck and Intelligent Clock ControlMADI Auto Input seamless redundancyTri color backlit channel indicators with peak RMS meteringMagnetic cover with customizable channel labels2 inch display with control knob15 preset storage with lock and dark modeRemote control via HTTP, JSON, MIDI over MADI, optional MIDIImpulse response optimization at 88.2 kHz and higherDante Virtual Soundcard support for up to 64 channels recording and playback
