RME  |  SKU: 4029

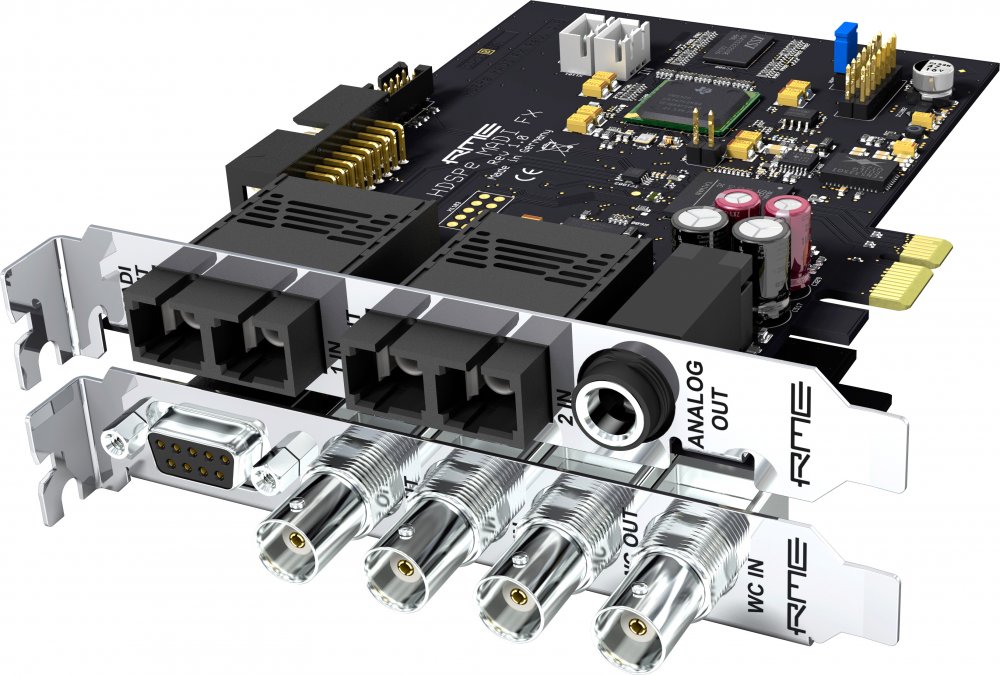

HDSPe MADI

PCI/PCIe

24bit / 192kHz, 2 x 64 channel PCI Express card

$2,515.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The PCI Express card consequently uses all advantages of the MADI format, the professionals' multi-Channel audio interface, offering 64 channels of 24-bit audio at a sample rate of up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Transmission is done via a single line, either coaxial with BNC plugs or by fiber cable. In both cases more than 100 m cable length can be achieved.

Compared with the HDSP MADI (Standard PCI version), the express card offers some new features: Support of higher sample rates than 96 kHz, more features in TotalMix (phase and internal loopback per channel, +6 dB gain for the hardware outputs), and the direct support of the Time Code Option. HDSPe MADI provides even lower latencies, making the card the perfect partner for live recording and live mixing applications. The analog monitor output is equipped with the low-latency converter technology of the ADI-8 QS, thus guaranteeing stunning SNR and THD values too.

HDSPe MADI is fully compatible to all devices with MADI interface. In combination with the ADI-648 an 8 x ADAT optical PC interface is realized, unbeatable in price and performance. With the ADI-6432 a bidirectional AES/EBU frontend with 64 channels is available.

On a powerful PC/Mac three HDSPe MADI can be used in a combination, providing 192 inputs and 192 outputs on a single workstation simultaneously.

Connectivity:

  • PCI Express Interface
  • 64 Input channels / 64 Output channels
  • 1 x MADI I/O (optical and coaxial)
  • 2 x MIDI I/O
  • Stereo Analog Out
  • Word Clock I/O
  • TotalMix
    •

    Specifications

    1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.

    2.5 Gbps line speed

    Packet-based full-duplex communication (up to 500 MB/s transfer rate)

    All settings changeable in real-time

    Automatic and intelligent master/slave clock control

    Sync sources: MADI coaxial, MADI optical, word clock, internal

    Varipitch: by input signal or word clock

    Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/word clock)

    Sample rate range: MADI: 32 kHz - 96 kHz, word clock: 27 kHz - 200 kHz

    Jitter: < 1 ns, internal and all inputs

    Jitter sensitivity: PLL operates even at 100 ns Jitter without problems

    Comes with DIGICheck: the ultimate measurement, analysis and test tool

    Input MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC)

    Output MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC), stereo analog line/phones

    Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination

    Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof

    MIDI input and output: via four 5-pin DIN jacks
