RME  |  SKU: 24796

ADI-6432 R BNC - Single Mode

MADI

RME ADI-6432R BNC 64-channel MADI/AES-3id converter, BNC connectors, dual PSU, optical I/O, up to 192 kHz, SteadyClock, MIDI/RS232 over MADI

$8,778.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

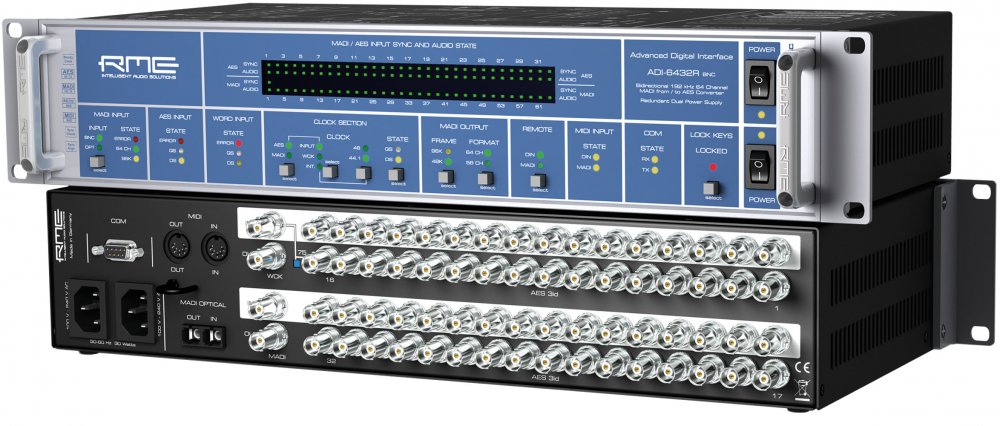

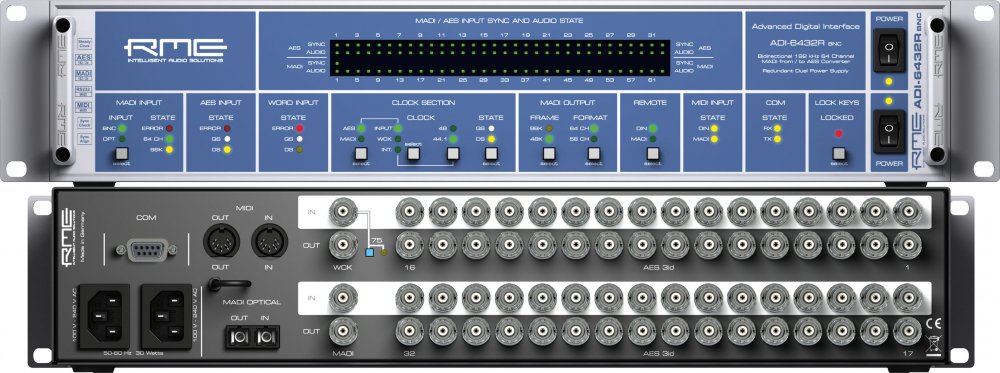

The RME ADI-6432R BNC is a professional-grade bidirectional 64-channel format converter designed to bridge MADI and AES-3id workflows with reliability and flexibility for demanding broadcast and production environments. Building on RME's proven ADI-6432 architecture, this rack-mount unit replaces XLR connections with industry-standard BNC connectors, enabling the use of coaxial 75-ohm cabling up to 300 meters. Its design includes dual redundant power supplies for fail-safe operation, making it ideal for mission-critical setups.

Engineered for seamless integration, the ADI-6432R BNC supports up to 192 kHz at 24-bit resolution, provides both optical and coaxial MADI I/O, and features 64 dedicated AES-3id connectors. Advanced RME technologies-such as SteadyClock for superior jitter suppression, comprehensive status displays, and full MIDI remote control (including MIDI and RS232 transmission over MADI)-ensure precise performance and remote management. Whether used as a high-capacity digital multicore, an AES-3id front end for an RME MADI card, or as part of a long-distance optical network, this converter delivers uncompromising audio quality and robust connectivity for professional applications.

Features

Converts 64 channels between MADI and AES-3id in both directions.

Uses BNC connectors for easy broadcast integration and long-distance coaxial runs (up to 300 m).

Supports up to 192 kHz / 24-bit audio with MADI and AES.

Includes both optical and coaxial MADI I/O for flexible connectivity.

Equipped with SteadyClock for jitter reduction and clock regeneration.

Fully remote controllable via MIDI, with MIDI and RS232 data transfer over MADI.

Dual redundant power supplies for fail-safe operation.

Ideal for broadcast, professional studios, and digital multicore setups.

Specifications

General Specifications:

Model: ADI-6432R BNC

Type: Bidirectional 64 channel MADI AES-3id format converter

Form Factor: 2U rackmount

Connectivity:

1 MADI optical IO SC multimode optional single mode up to 10 km

1 MADI coaxial IO BNC

64 AES-3id IO BNC 75 Ohm unbalanced 1 Vpp

1 MIDI IO

1 Com-Port IO RS232 via MADI

1 Word Clock IO BNC

Audio Specifications:

Up to 64 channels at 24 bit 48 kHz

Up to 32 channels at 24 bit 96 kHz

Up to 16 channels at 24 bit 192 kHz

Supports 56 channel and 64 channel MADI formats

Supports 96k frame format

AES-3id coaxial 75 Ohm maximum cable length 300 m

Features:

Full bidirectional MADI to AES-3id conversion

SteadyClock jitter reduction and clock regeneration

Status displays for MADI and AES

Complete MIDI remote control capability

MIDI data transmission via MADI

RS232 data transmission via MADI

Dual redundant power supplies

Cable length over 100 m for coaxial and optical MADI

Optional Configuration:

Single Mode MADI optical IO for up to 10 km range
