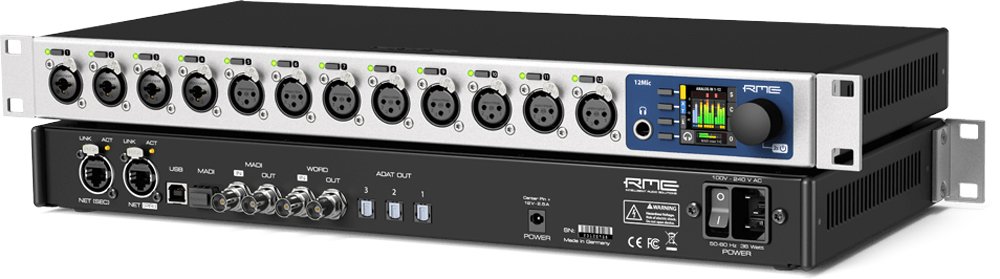

12Mic-D

12 Mic/Line Inputs with 75 dB Gain

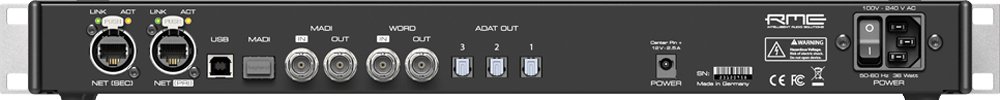

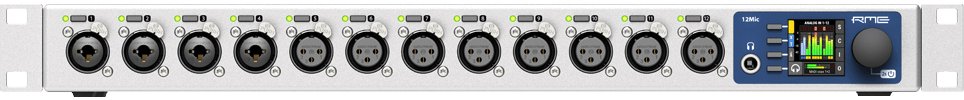

4 TRS/XLR Inputs + 8 XLR Inputs

Integrated MADI and Dante Connections

Remote and Front-Panel Control

Inputs

XLR In 1-12:

Input: XLR, electronically balanced

Input impedance: 3.4 kOhm

Gain range: 75 dB, 1 dB steps

Resolution AD: 24 bit

Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz " 20.8 kHz

Frequency response @ 96 kHz, -0.5 dB: 4 Hz " 29.2

Frequency response @ 192 kHz, -1 dB: 3 Hz " 43.7

THD @ 30 dB gain: < -110 dB, < 0.00032 %

THD+N @ 30 dB gain: < -104 dB, < 0.00063 %

Channel separation: > 110 dB

Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)

Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm

Maximum input level, Gain 0 dB: +18 dBu

Maximum input level, Gain 75 dB: -57 dBu

TRS In 1-4:

As above, but:

Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA

TRS jack, balanced

Gain range: 42 dB, 1 dB steps

Maximum input level, Gain 8 dB: +20 dBu

Maximum input level, Gain 50 dB: -22 dBu

Switchable high impedance (unbalanced TS): 1 MOhm

DANTE:

2 x RJ45 for Dante network connectivity (up to 64 channels)

MADI:

Coaxial via BNC, 75 Ohm, according to AES10-1991

Optical via optional SFP module

62.5/125 and 50/125 compatible

Accepts 56 channel and 64 channel mode, plus 96k Frame

Single Speed: up to 64 channels 24 bit 48 kHz

Double Speed: up to 32 channels 24 bit 96 kHz

Quad Speed: up to 16 channels 24 bit 192 kHz

Word Clock:

75 ohm Word Clock BNC connectivity

Support 44.1kHz - 192kHz

Support full or single speed operation

Intelligent Clock Control switches clock source seamlessly

ADAT:

3 x TOSLINK

Quad Speed (S/MUX4): 1 x 2 channels 24 bit 192 kHz

Outputs

Phones 1/2:

Resolution: 24 Bit

Noise (DR): 115 dB RMS unweighted, 118 dBA

Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz " 22 kHz

Frequency response @ 96 kHz, -0.5 dB: 9 Hz " 45 kHz

Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz

THD+N: < -100 dB, < 0.001 %

Channel separation: > 110 dB

Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack

Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)

DANTE:

2 x RJ45 for Dante network connectivity (up to 64 channels)

MADI:

Coaxial via BNC, 75 Ohm, according to AES10-1991

Optical via optional SFP module

62.5/125 and 50/125 compatible

Accepts 56 channel and 64 channel mode, plus 96k Frame

Single Speed: up to 64 channels 24 bit 48 kHz

Double Speed: up to 32 channels 24 bit 96 kHz

Quad Speed: up to 16 channels 24 bit 192 kHz

Word Clock:

75 ohm Word Clock BNC connectivity

Support 44.1kHz - 192kHz

Support full or single speed operation

Intelligent Clock Control switches clock source seamlessly

General

2x RJ45 for Dante network connectivity

Single Speed: up to 64 channels 24 bit 48 kHz

Double Speed: up to 32 channels 24 bit 96 kHz

Quad Speed: up to 16 channels 24 bit 192 kHz

MADI input redundancy (requires optional SFP module)

Internal routing of up to 268x282 channels

19" enclosure 1 unit height

1,54" full color display with control knob and four buttons for convenient, direct access to all features

Remote control via HTTP & JSON

internal PSU, optional 12V DC redundant power supply

USB 2.0 (for remote control and firmware updates)

DC-coupled outputs

Hardware Specifications

Dimensions: 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)

Weight: 2.8 kg (6.2 lbs)

Package: 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)

Conformity: CE, FCC, WEEE, RoHS

Power supply: internal 30 W 100-240 V AC, external 12 V 2.5 A DC (optional)

Power consumption: typ. 20 W, standby 0.5W
