Radial Engineering Workhorse - Cube 500
UPC/EAN #676101040445
MPN #R700 0107
3 slot power-rack, desktop format, 500mA power supply

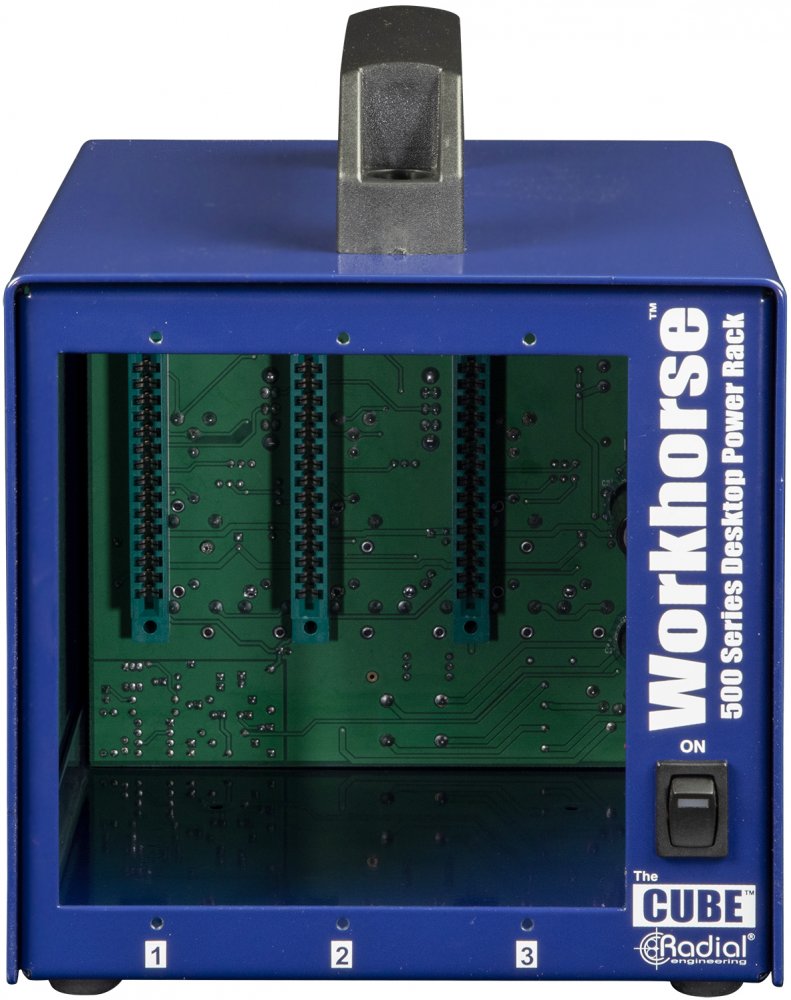

The Cube is a three module desktop power rack designed to bring the fun and excitement of 500 series modular audio to everyone!
Unlike other 500 series enclosures that are usually rack mounted, The Cube? is designed to sit on the desktop or be carried around the studio using the convenient top-mounted handle. This enables the engineer to position instrument and microphone preamps as close to the source as possible for improved signal to noise. The Cube can also be recessed into the work surface using the optional mounting flanges. These allow either flush mounting or 30 angle mounting to optimize viewing position.
Following the criteria established by the Radial Workhorse, the PowerStrip is 100% backwards compatible with older API modules while being optimized for Radial's expanding range of preamps, processors and routing devices. Construction begins with a 14 gauge steel frame and features dual gold contact EDAC 15-pin connectors for optimal signal transfer. To maximise headroom, the external supply delivers 500mA of current for power hungry modules plus a separate 48V phantom tap delivers a full 10mA of current for microphone preamps. Rear panel connectivity includes standard XLRs for each slot along with ¼" TRS connectors for multing modules, cross patching and parallel processing. Instead of the traditional 'hardwire patch' system employed by others, The Cube employs an innovative feed function that patches modules together in series without the need of a cable. And stereo modules no longer need to be soldered to be paired, they can now be sync'd together using a simple switch. The Cube is also equipped with Omniport on each sot. This TRS jack enables the module manufacturer to implement a unique function for a given module such as a key input on a gate.
The Cube... The World's most advanced desktop power supply for 500 series modules.
Features
Desktop power rack houses three 500 series modulesCompatible with Radial and older API systemsProvides up to 500 milliamps of shared currentOptional angles let you recess it into the table top
Specifications
Circuit type : Connection buss from modules to connectorsFormat : Desk topNumber of slots : 3Input connectors : 3 balanced XLR male, 3 ¼" TRSOutput connectors : 3 balanced XLR male, 3 ¼" TRSCompatibility : Adheres to the Whos-Doc and VPR Alliance
Functions
Omniport : YesFeed switch : YesStereo link : Yes48V phantom power : Yes on all channels
Electrical
Available current : 500 milliampsAverage current : 166 mA per slotCard slot impedance : Module dependentGround connections : ChassisXLR pin wiring : AES standard: pin-1 ground, pin-2 (+), pin-3 (-)Power supply : External 100V - 240V AC with 48V PhantomPSU Connection : Locking 4 pin XLR female on cableProduct size (W x H x L): 7.5" x 6.25" x 7.25" (190 x 160 x 190mm)Shipping size (W x H x L) : 12.5" x 9.25" x 9.0" (318 x 235 x 229mm)Product Weight : 5.4 lb (2.5kg)Shipping Weight : 7.85 lb (3.6kg)Conditions : For indoor use at temperatures between +5 c and +40 c
